Lighting and Horns: Service and Repair
Remove1. Remove steering wheel.

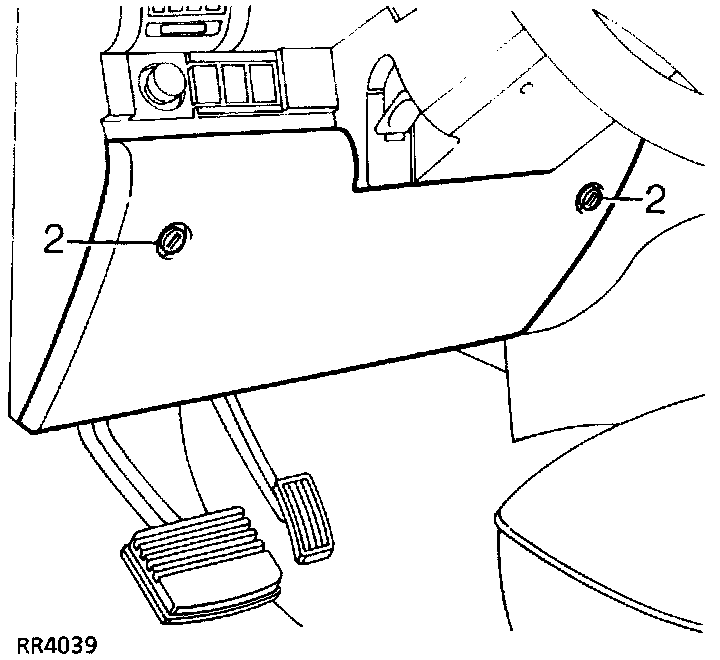

2. Release 2 turnbuckles and remove lower dash panel.

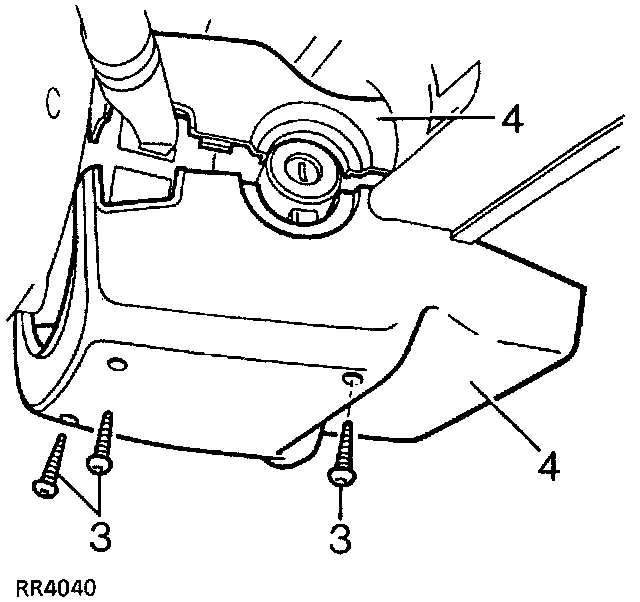

3. Remove 3 screws securing lower half of nacelle to steering column.
4. Separate the halves of the nacelle and remove from steering column.
5. Release 2 clips securing rotary coupler to column switch assembly.
6. Release rotary coupler.
CAUTION: Do not allow rotary coupler to hang on its harness.

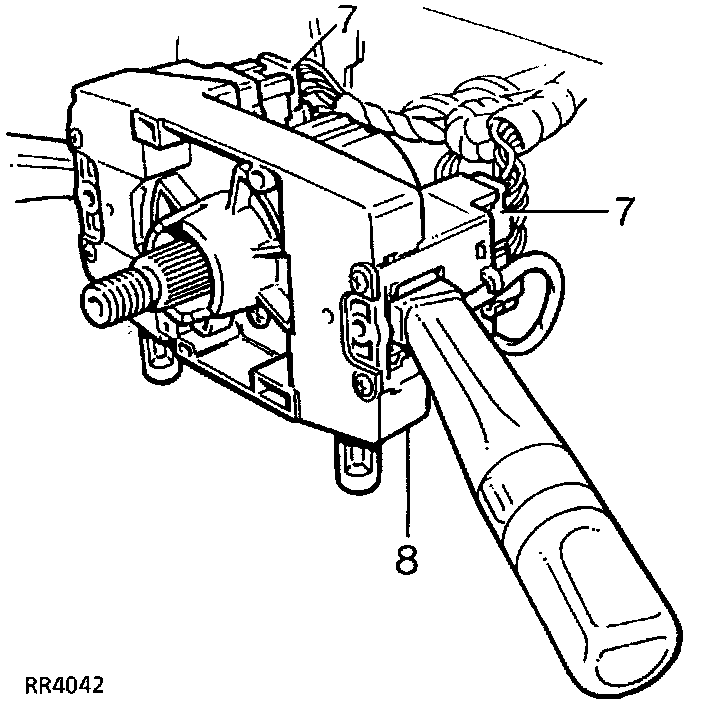

7. Disconnect 4 connectors from column switch assembly.
8. Remove column switch assembly from steering column.
Refit
9. Reverse removal procedure.
