Bladder - Lumbar Support - Front Seat - Up to 99MY

BLADDER - LUMBAR SUPPORT - FRONT SEAT - Up to 99MY

Service repair no - 78.60.01

Remove

1. Remove front seat.
2. Remove headrest.
3. Remove headrest retainers by turning through 90 degrees to release.







4. Remove 2 plugs from seat valance retaining screws. Remove 3 screws. Remove valance.

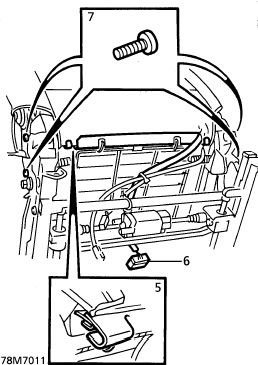

5. Remove 2 clips securing squab cover retainer to cushion frame. Release retainer.
6. Disconnect headrest and recline multiplug from connection under cushion.







7. Remove 4 bolts securing squab to seat. Remove squab.
