Rear Fog Lamps

Remove

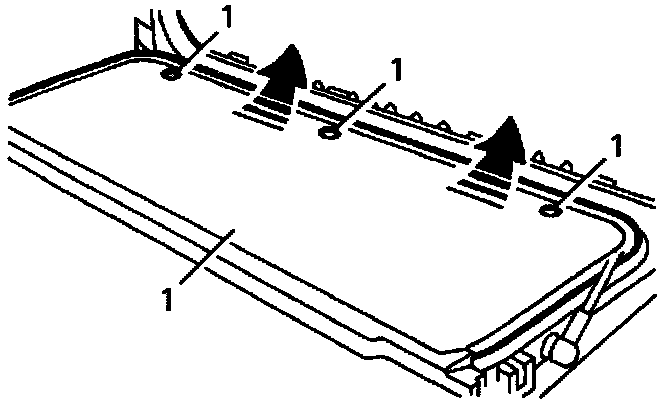

1. Release 3 studs securing tailgate board. Remove board.






2. Release bulb holder.
3. Remove 3 nuts securing lamp to tailgate. Remove lamp.

Refit
4. Reverse removal procedure.
