Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2036 - C2052
C2036 - C2052

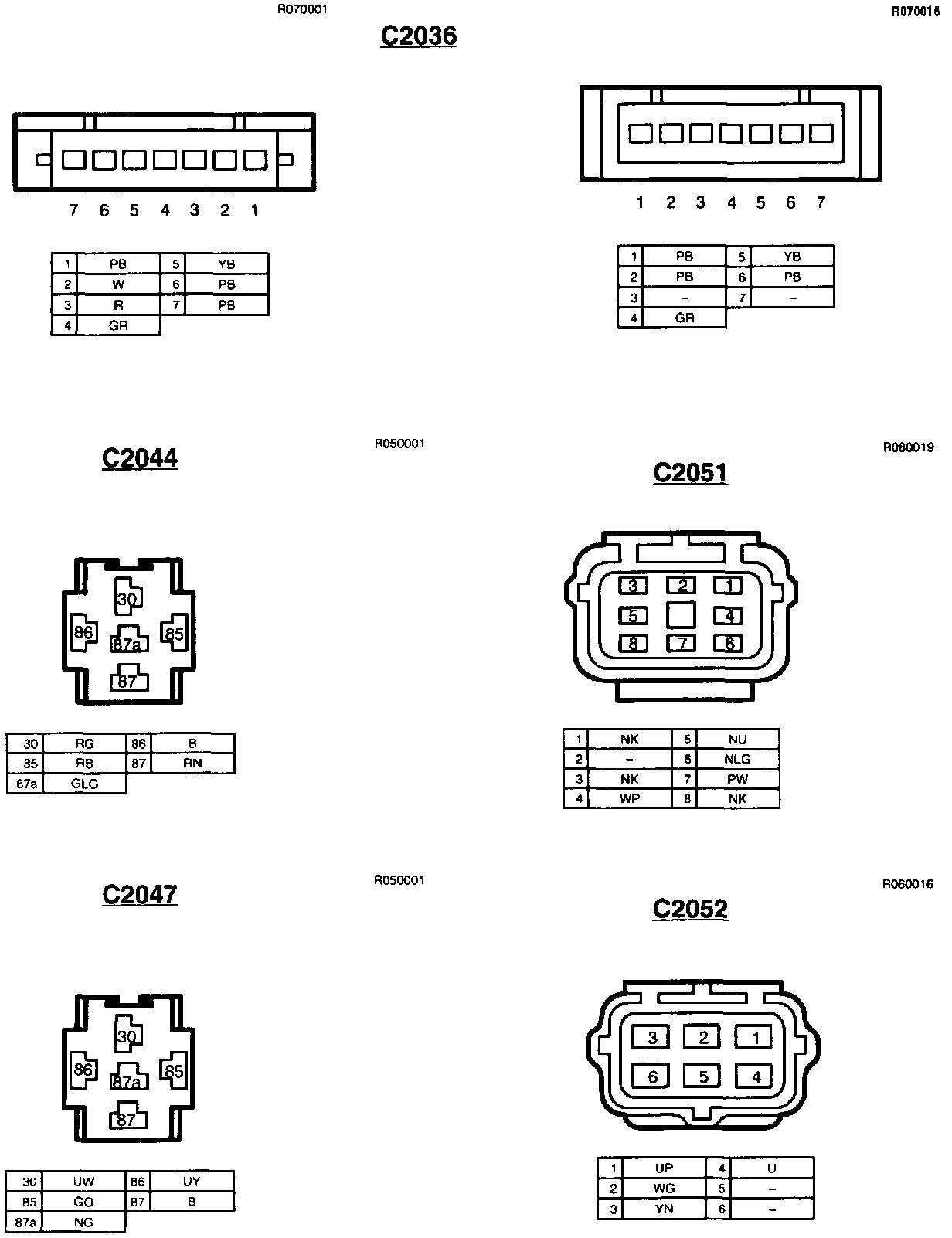

C2036, C2044, C2047, C2051, C2052:
