Land Rover
>>
1997
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C245 - C250
C245 - C250

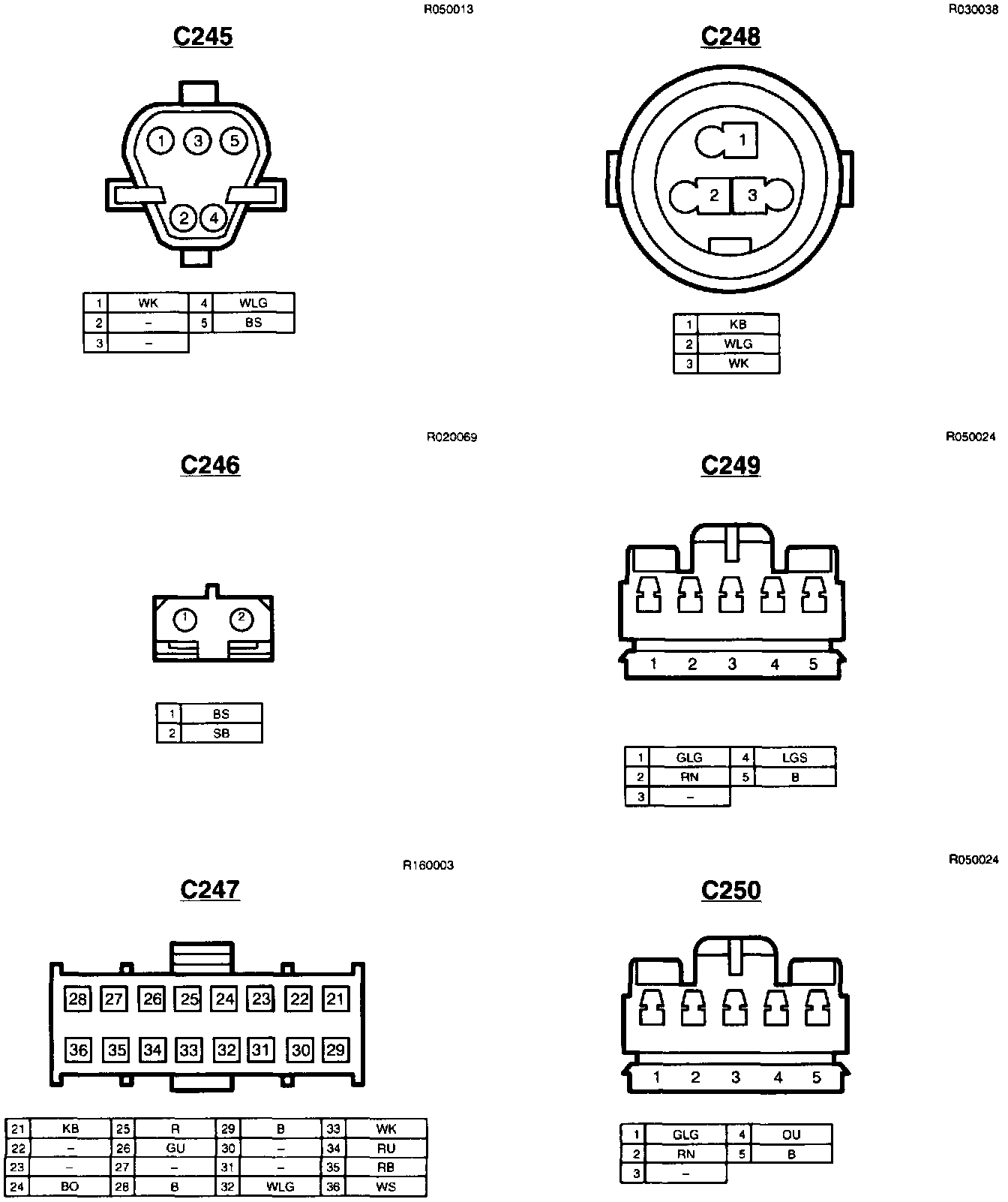

C245, C246, C247, C248, C249, C50:
