Home
>>
Land Rover
>>
1997
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

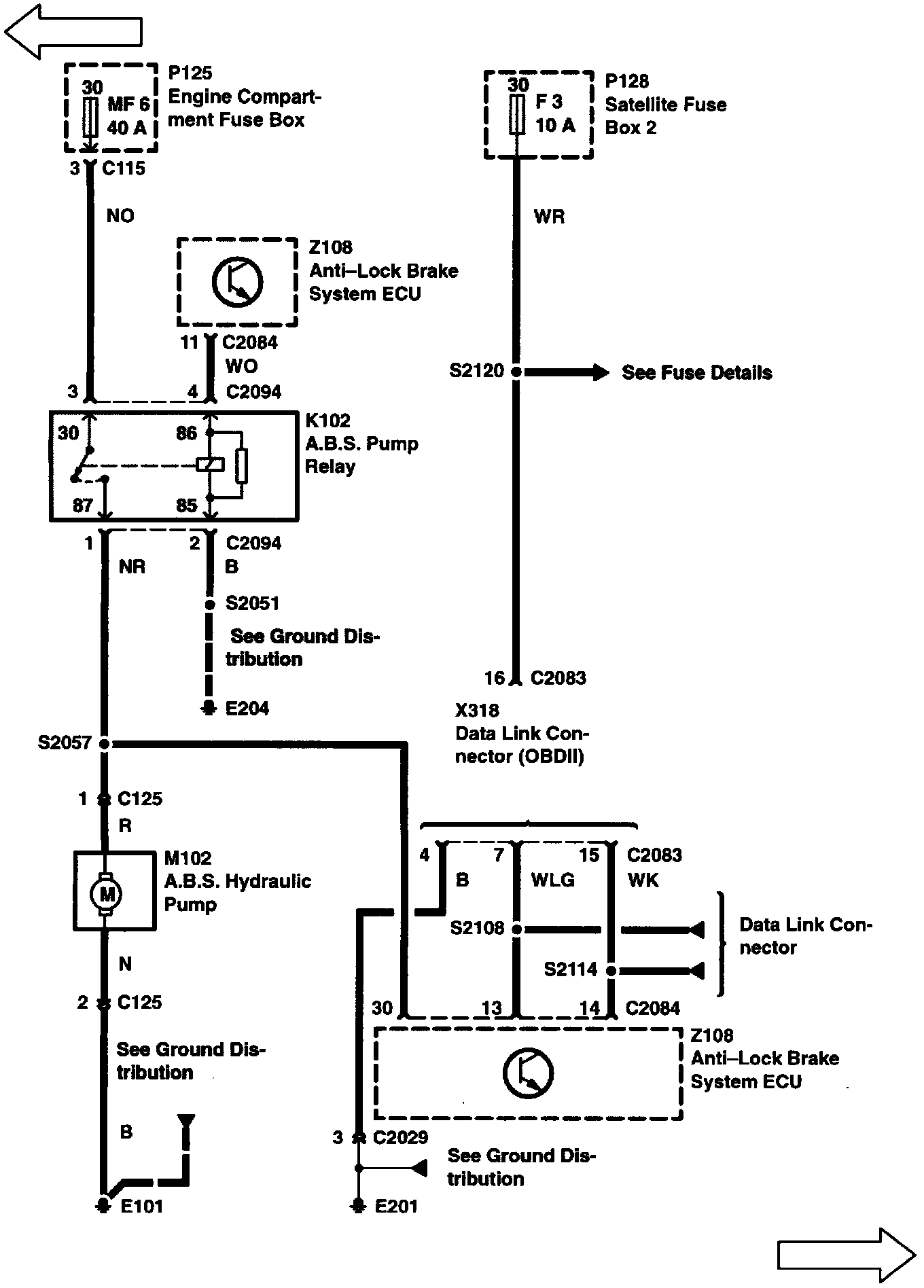

D1-1:

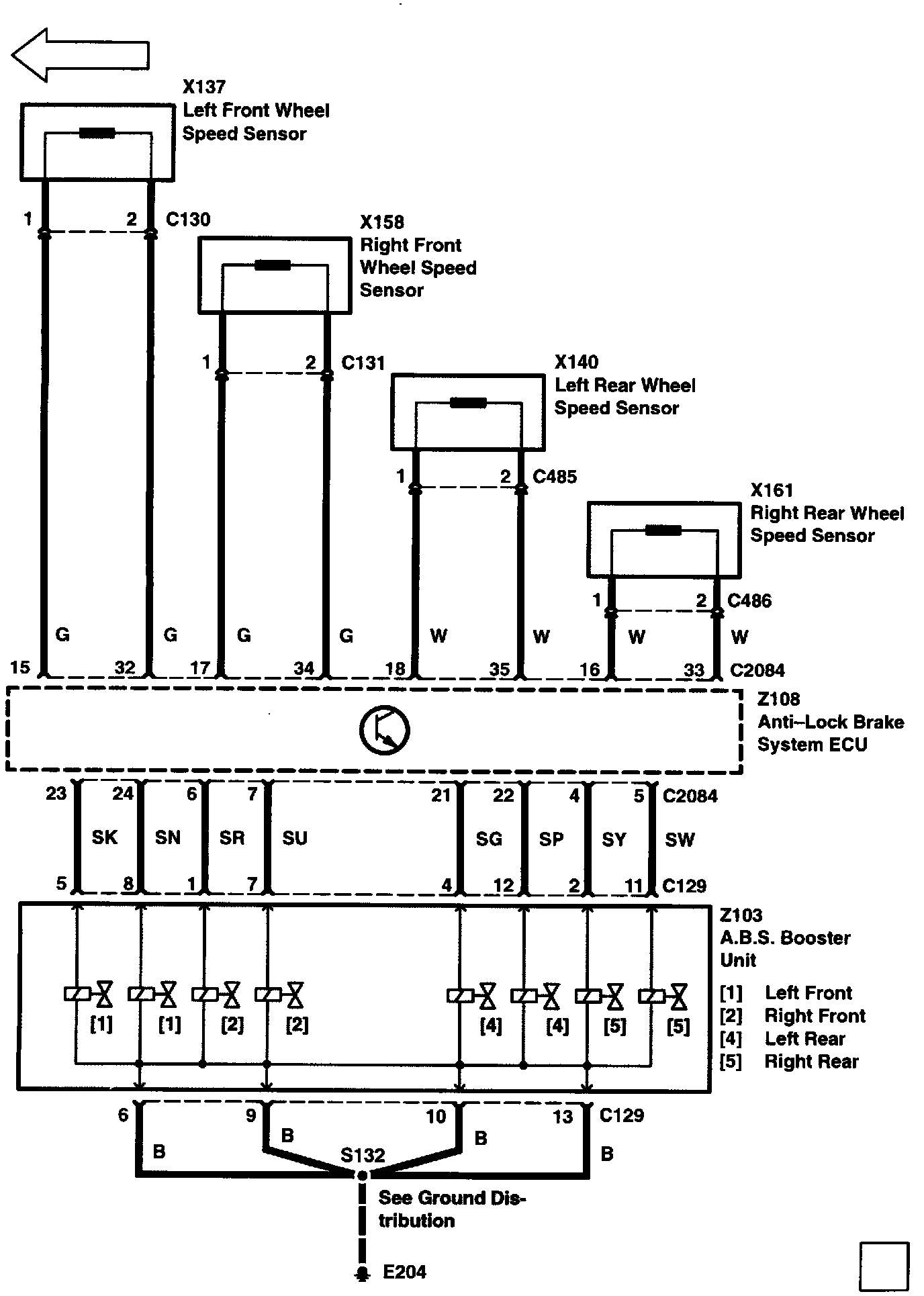

D1-2:

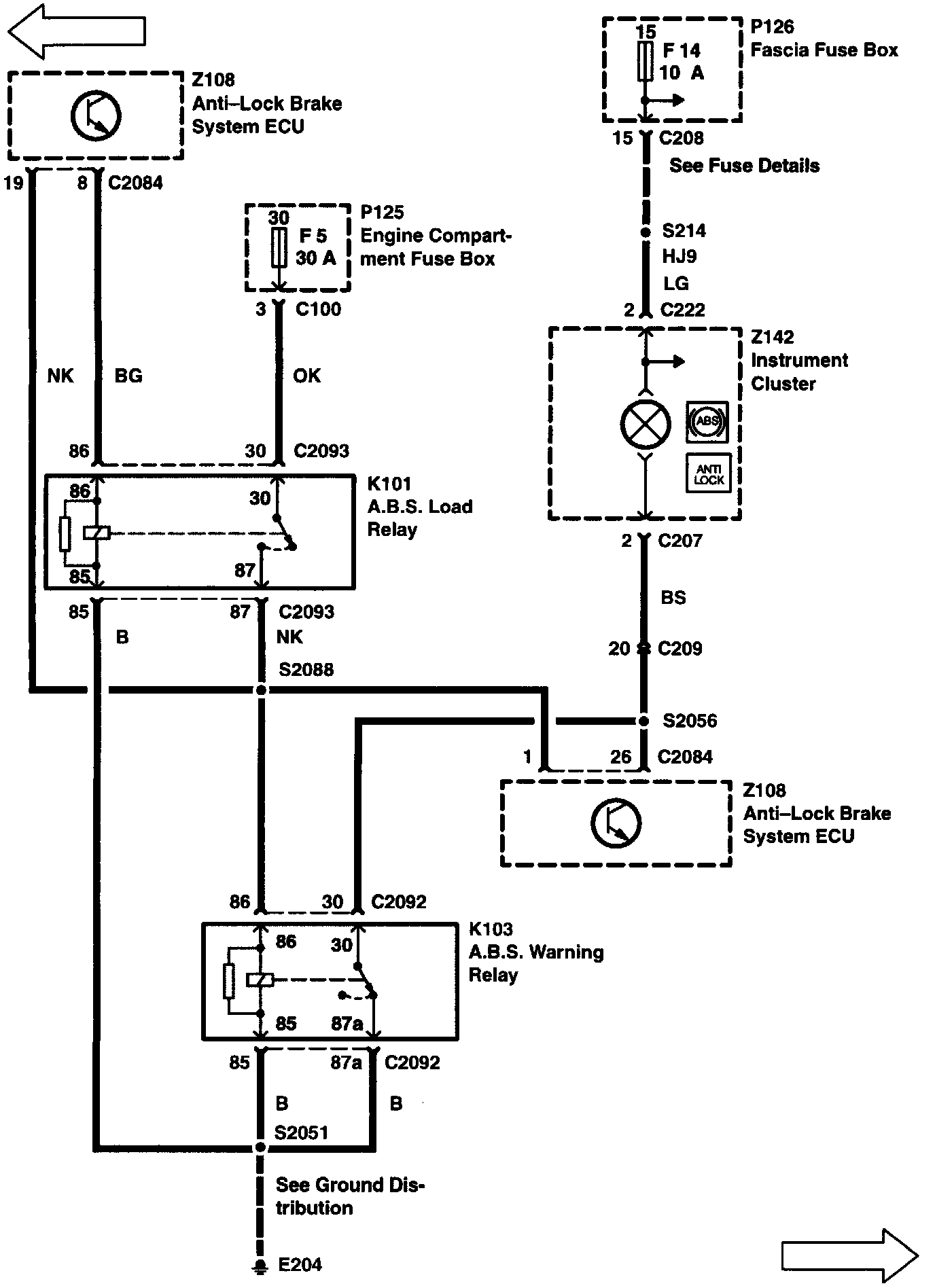

D1-3:
D1-4:
