E100

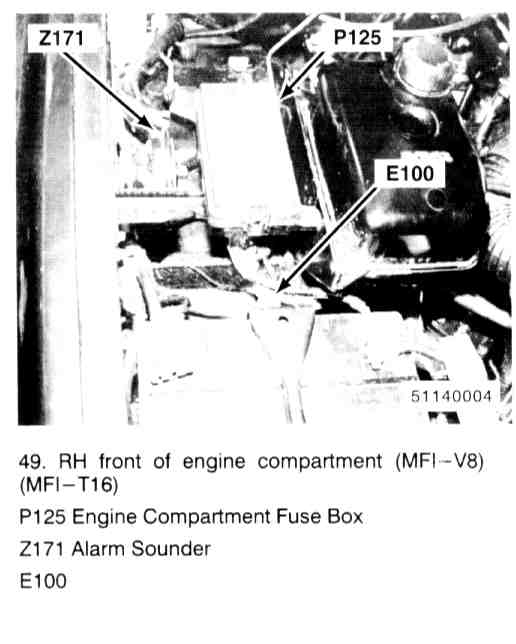

For MFI



RH Rear Of Engine Compartment Behind Battery

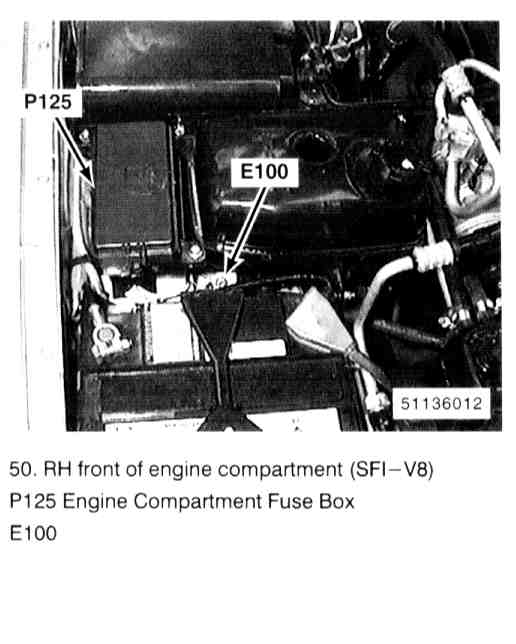

For SFI



RH Front Of Engine Compartment Behind Battery
