Air Conditioning Switch: Service and Repair

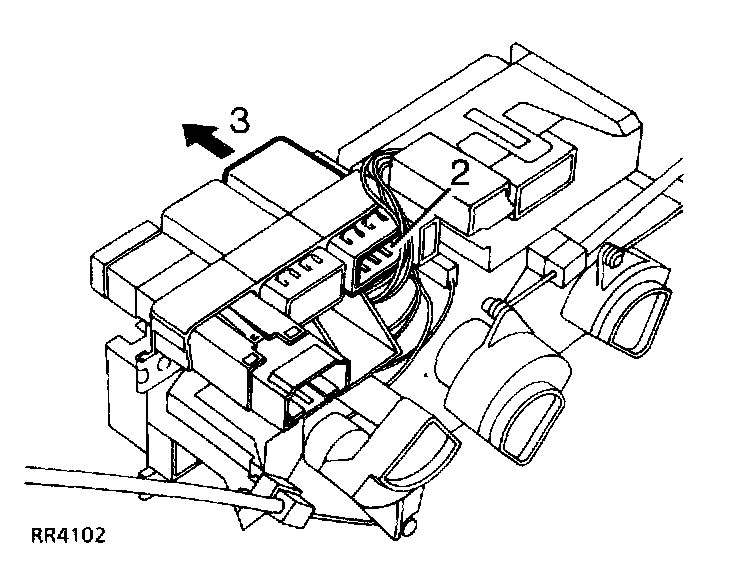

Remove
1.
Remove fascia centre louvre vent panel.
2.
Disconnect multi plug from switch
3.
From the rear, push switch out of panel.
Replace
4.
Reverse removal procedure.
