Center Mounted Brake Lamp: Service and Repair

Remove

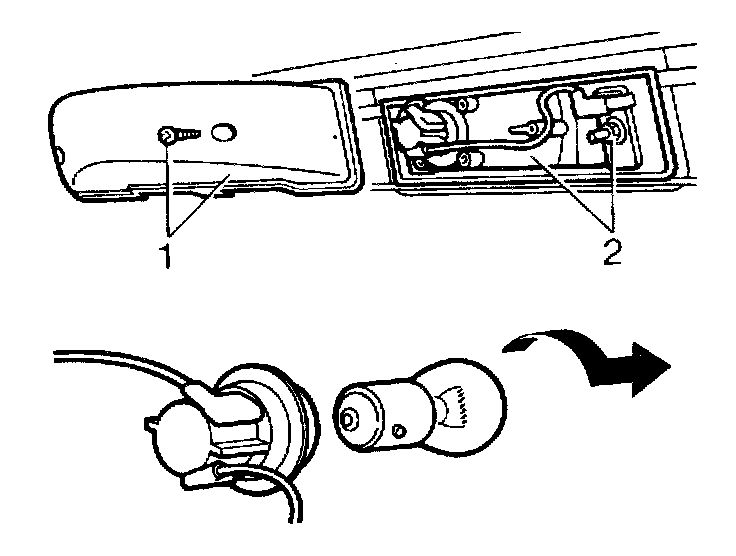

1. Remove two screws and lift off light reflector body.
2. Unscrew retaining nut and remove lens unit from rear door glass.

Refit
3. Reverse removal procedure.
