Center Console - Creak/Squeal
18/08/9576/28/95/US
SUBJECT
Center Console Creak/Squeal
MODEL
Discovery
AFFECTED VEHICLES
LP
LH
LJ O81991 to 14O787
LD
DETAIL

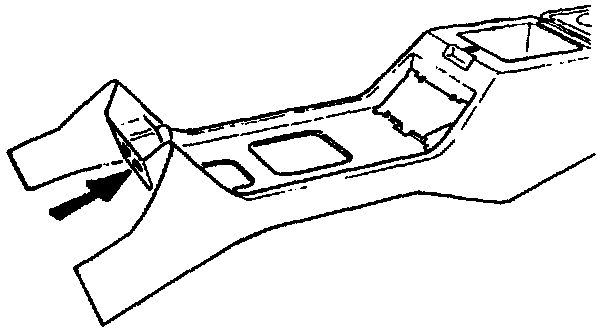

Vehicles within the above VIN range may exhibit a creak/squeal from the center console/dashboard. The noise is caused by the dash making contact with the center console in the area shown on the illustration.
PARTS INFORMATION
STC 3095 - Roll of Anti-Rattle Tape
PROCEDURE
Refer to workshop manual section 76, Center Console.
Loosen the center console and leave a small gap between the console and the dash. Fit two strips of the anti-rattle tape and position as detailed in the illustration.
Reposition and tighten the center console.
WARRANTY
Normal warranty policy and procedure apply
COMP. CODE
8E3K
SRO
76.25.89/26 - Fit anti-rattle tape to center console - 0.60 hr.
