Dashboard - Torque Specifications
10/11/95O4/O1/95/US
SUBJECT
Fascia/Dashboard Torque Specifications
MODEL
Range Rover Classic
Discovery
AFFECTED VEHICLES
LP
LH 647645 onwards
LJ All
LD
DETAIL
The layout of the Workshop Manuals for all Discovery and 1995 Range Rover Classic models make it difficult to identify torque specifications for the fascia/dashboard assembly. Hence this bulletin summaries the required torque values.
ACTION REQUIRED
When attempting to refit a fascia assembly apply the torque specifications outlined below.
PARTS INFORMATION
N/A
PROCEDURE
Figure 1:
Bolts (2) securing liquid AC pipes to bulkhead flange. Torque to 8.85-11.80 ft lbs (12-16 Nm).

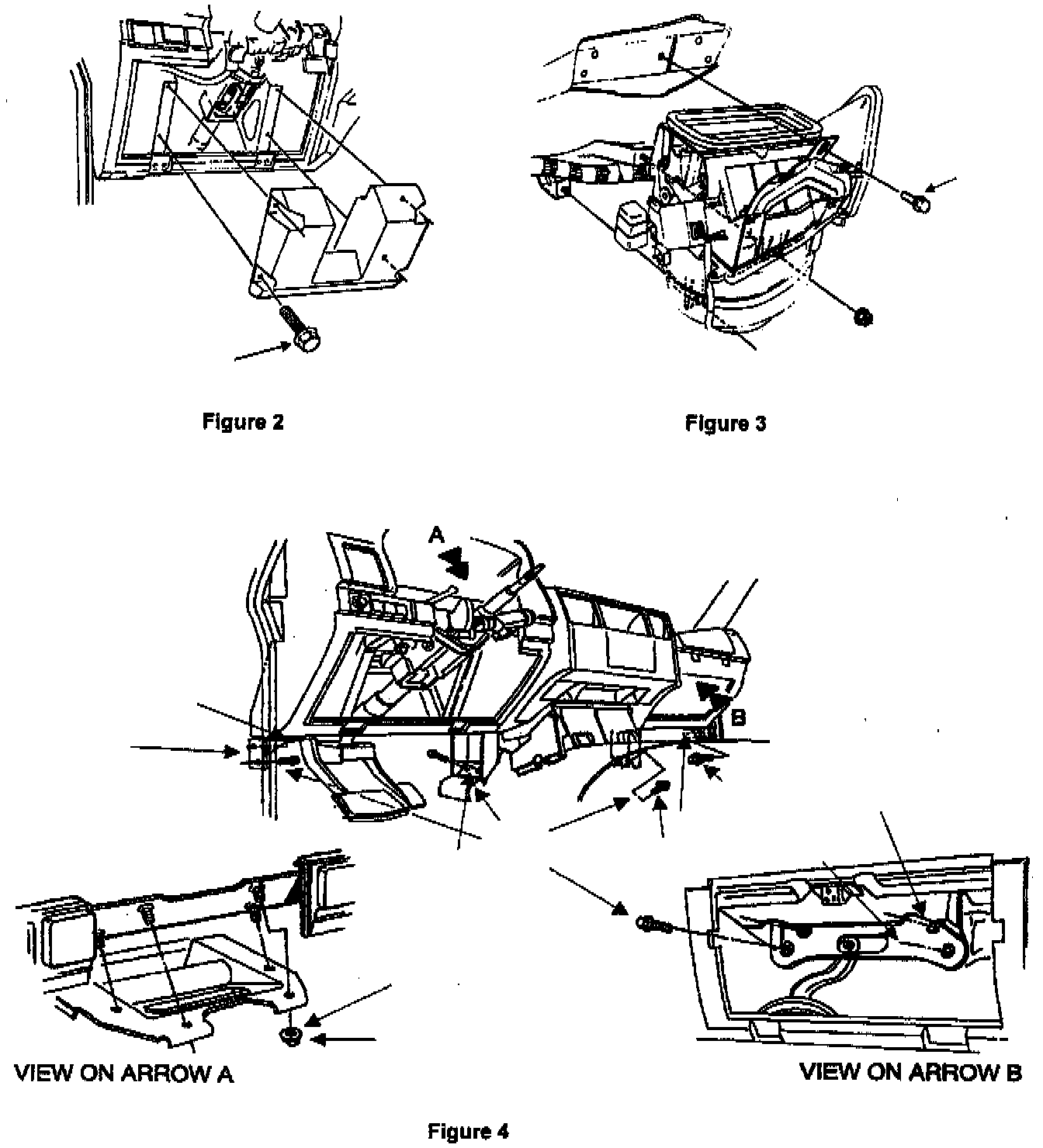

Figure 2:
Bolts (4) securing driver's side knee bolster to brackets. Torque to 5.90-8.85 ft lbs (8-12 Nm).
Figure 3:
Bolts (4) securing top of blower bracket to body. Torque to 5.50-7.00 ft lbs (7.50-9.5 Nm).
Torque all of the following to 14.75-16.20 ft lbs (20-22
Nm):
Nuts (4) securing fascia to screen rail (driver side), bolts (4) securing fascia to screen rail (passenger side), bolts (4) securing fascia to 'A' frame via sliding brackets (drivers side). bolts (4) securing fascia to transmission tunnel (both sides), bolts (4) securing fascia to lower "A" post (both sides).
