Engine - Intake Valley Pan End Clamp Usage

TA00 1202

March 21, 2000

ATTENTION:
Service Manager
Service Advisor Technician

Inlet Valley End Clamps ERR7282

We have seen a dramatic increase in the use of Inlet Valley End Clamp (ERR7282).

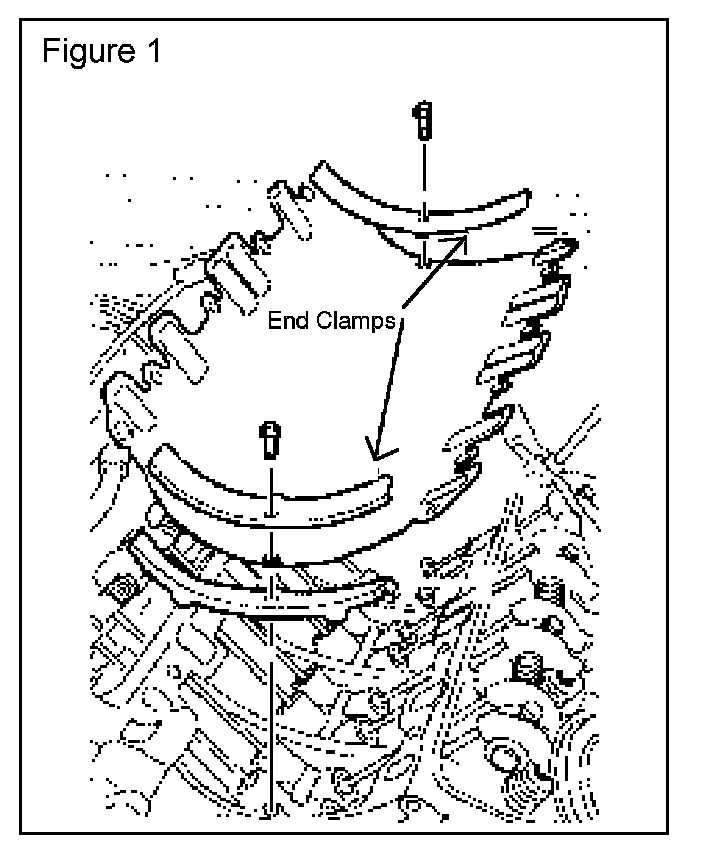

These clamps are reusable components (Figure 1). The two clamps should be reused when performing inlet gasket installations on vehicles after the safe VINs listed below:

Range Rover WA379043

Discovery VA727032

Defender VA127670

NOTE:
Any unusual circumstances requiring the replacement of end clamps (ERR7282) after the safe VINs should be reported on an electronic Product Report.

Vehicles manufactured before the above VINs should have a complete set of valley gasket components and bolts installed
when a repair is performed





Please note the following part number information:

A TIB will be issued shortly to further clarify the replacement and installation requirements of the valley gasket components
