M/T - Input Shaft Seal Leaks: Overview
37/06/96/US12/31/96
SUBJECT
PRIDE - New R380 Transmission Input Seal
MODEL AFFECTED VEHICLES
LP
LH
Discovery LJ up to Gearbox #56A0513063J
LD
DETAIL

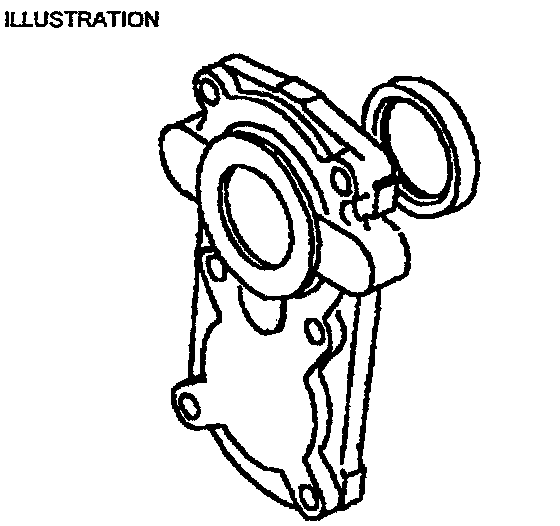

In some cases a buildup of clutch dust may cause the manual transmission input shaft seal to fail prematurely and allow leaks. The following procedure has been developed to replace the seal with an improved seal design that incorporates a dust lip to prevent reoccurrence of the seal failure. Transmissions built after number "0513063" have the new input seal
The diagnostic steps and repair procedures detailed on the following pages were developed as an element of the Land Rover Way OPERATION PRIDE. This TIB provides a library location for PRIDE information within the Land Rover North America technical literature system.
ACTION REQUIRED
Upon customer complaint for the symptoms outlined, perform the specified repairs.
PARTS INFORMATION
FTC5303 - Oil Seal, (qty. 1)
576723 - Clip, (qty. 1)
ETC4524 - Exhaust Gasket, (qty. 2)
STC611 - Hylogrip 2000
Locally sourced items:
^ ATF Dexron III
WARRANTY
Normal warranty procedures and policies apply.
SRO
37.23.06 - Time 5.9 hr.
Renew manual transmission input shaft oil seal
