Rear Bumper Lamp - Cracking
7/7/9576/12/95/US
SUBJECT
Rear Bumper Lamp Cracking
MODEL
Discovery
AFFECTED VEHICLES
LP
LH
LJ 081991 Onwards
LD
DETAIL
The material used for the rear lamp surround may crack under stress from the bumper bracket when tightened. An additional washer is now being fitted to resolve the issue.

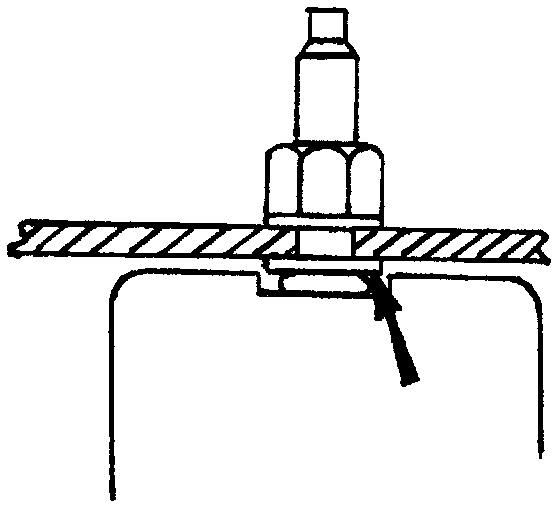

If a rear lamp surround is found to be cracked, when replacing the unit, an additional washer should be fitted on the fixing stud between the bumper bracket and the rear of the lamp (see illustration).
ACTION REQUIRED
When installing a replacement for a cracked bumper lamp surround, use an additional washer to prevent a reoccurrence of the problem.
PARTS INFORMATION
Washer WC 105001L
PROCEDURE
1) Remove the damaged lamp.
2) Fit washer WC 105001 onto the lamp stud before refitting through the rear bumper bracket.
3) Fit lamp to rear bumper.
4) Secure lamp using the correct hardware.
5) Connect wiring and test the operation of the lamp.
WARRANTY
Normal warranty policy and procedures apply
COMP. CODE
7J3E
SRO
86.40.74/03 - Bumper lamp assembly - 00.25 hr.
