Steering - Lock Stop Setting Procedures

57/03/96/US
*Issue 2*

SUBJECT

Steering Lock Stop Settings

MODEL AFFECTED VEHICLES

LP
LH
Discoverys fitted with 235R tires LJ Up to 171819
Discoverys fitted with 235R tires LJ 500000 to 504149

DETAIL

With the introduction of 235R tires we would like to standardize the lock stop setting of all vehicles regardless of tire type. Therefore the process below must be followed when setting lock stops. Please update your Workshop Manuals accordingly.

The clearance between the tire and the radius arm should be approximately 20 mm.

ACTION REQUIRED

During Pre-Delivery Inspection, check the lock stop clearances on vehicles fitted with 235R tires and adjust settings as necessary following the process detailed below.

PARTS INFORMATION

Not applicable.

PROCEDURE

Refer to the Workshop Manual section 57 "Steering Lock Stops."





1. Measure clearance between tire and radius arm at full lock, this must be approximately 20mm, and adjust if necessary.

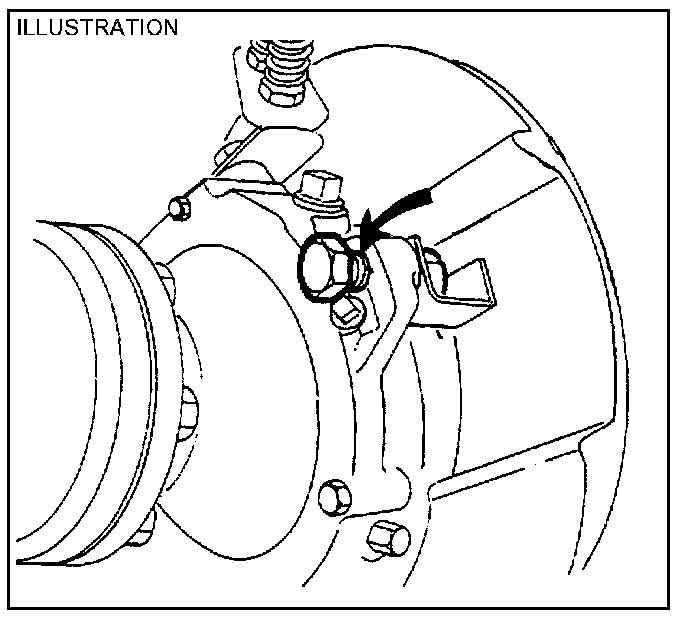

2. Loosen stop bolt locknut.

3. Turn stop bolt as required to achieve the 20mm clearance.

4. Tighten locknut.

5. Check clearance between tire and radius arm on each lock.

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE
5E2A

SRO

57.65.03 Set steering lock stops 0.25 hr.
