Steering - Lock Stop Settings
18/04/9657/03/96/US
SUBJECT:
Steering Lock Stop Settings
MODEL:
Discoverys fitted with 235R tires
AFFECTED VEHICLES:
LP
LH
LJ Up to 171819
LD Up to 504149
DETAIL
With the introduction of 235R tires we would like to standardize the look stop setting of all vehicles regardless of tire type. Therefore the process below must be followed when setting lock stops. Please update your Workshop Manuals accordingly.
The clearance between the tire and the radius arm should be approximately 0.75 in (20 mm).
ACTION REQUIRED
During Pre-Delivery Inspection, check the lock stop clearances on vehicles fitted with 235R tires and adjust settings as necessary following the process detailed below.
PARTS INFORMATION
Not applicable.
PROCEDURE
Refer to the Workshop Manual section 57 "Steering Lock Stops."

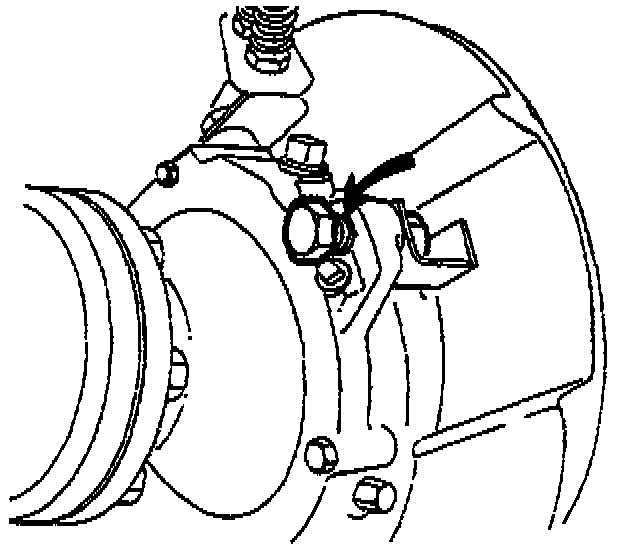

1. Measure clearance between tire and radius arm at full lock, this must be approximately 0.75 in (20 mm), and adjust if necessary.
2. Loosen stop bolt locknut.
3. Turn stop bolt as required to achieve the 0.75 in (2O mm) clearance.
4. Tighten locknut.
5. Check clearance between tire and radius arm on each lock.
WARRANTY:
Normal warranty policy and procedures apply
COMP. CODE:
5E2A
SRO:
57.65.03 - Set steering lock stops 0.25 hr.
