Sunroof - Jams During Tilt Operation: Overview
04/18/9776/05/97/NAS
AFFECTED VEHICLES
LP
LH
LJ 1994 - TA197950
LD TA528721
SUBJECT
PRIDE - Sunroof Jam
MODEL
Discovery
DETAIL
NOTE:
This TIB replaces TIB 76/21/96/US. The "Safe VIN" information is updated. Also 76/21/96/US was not printed with the 1996 TIB and Service Bulletin bound collection.
In some cases the sunroof mechanisms on Discovery jam during tilt operation. A new sunroof assembly ha been developed to address this problem. The following procedure should be used to replace the sunroof assemblies.
If sunroof replacement is required, note the following:
^ Both front and rear sunroof assemblies are to be replaced at the same time even if only one has jammed.
^ Only complete assemblies should be installed to affect repairs.
Before you start this repair, the technician should take time to test the various systems that might be affected by this operation. Also, cleanliness is very important; it only takes a small smudge to ruin the customer's opinion of an otherwise good job. Any problems found during this inspection should be brought to the service manager's attention.
The diagnostic steps and repair procedures detailed on the following pages were developed as an element of the Land Rover Way OPERATION PRIDE. This TIB provides a library location for PRIDE information within the Land Rover North America technical literature system.
ACTION REQUIRED
Upon customer complaint for the symptoms outlined, perform the specified repairs.
PARTS INFORMATION
BTR8240 - Sunroof Assembly

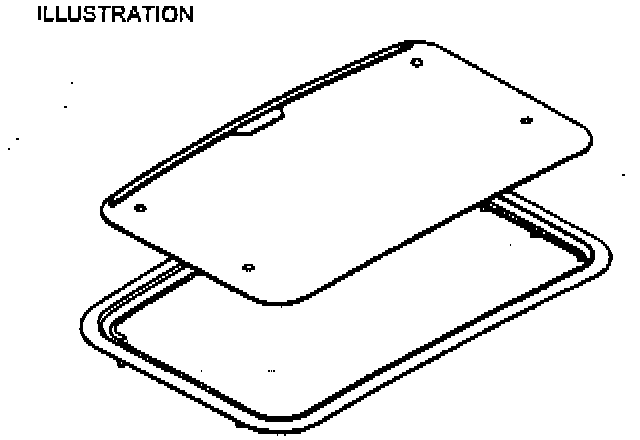

ILLUSTRATION
WARRANTY
Normal warranty procedures and policies apply.
COMP. CODE
SRO
76.82.58 - Time 3.15 hrs (for 1)
76.82.92 - Time 3.85 hrs (for 2)
