Transmission Mount - Vibration Noise
07/04/9544/01/95/US
SUBJECT:
Transmission Mount - Vibration
MODEL
Range Rover Classic
Discovery - Automatic and Manual Gearbox
AFFECTED VEHICLES
LP
LH 649378-658364
LJ 078010-127634
LD
DETAIL
Vehicles in the above VIN ranges may exhibit vibration/noise from the center area of the floorpan/body. This condition may be caused by the left hand side transmission mounting bracket making contact with the floorpan/body.
ACTION REQUIRED
At pre-delivery inspection or upon customer complaint, check the gearbox mounts are correctly torqued and clear of the floorpan.
PARTS INFORMATION
Replacement nut FX1112041
Slotted bracket ANR 2820
Additional washer WA 112081L
PROCEDURE

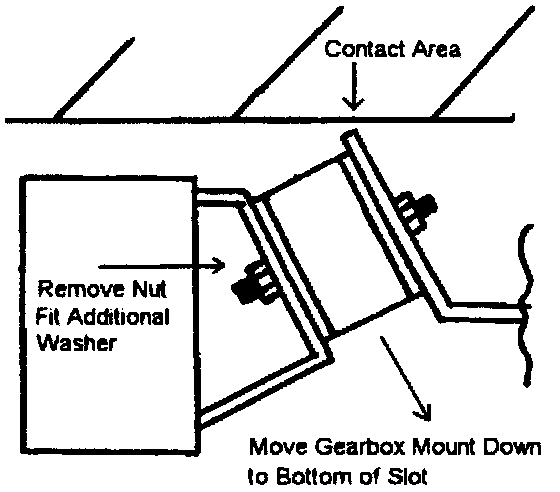

If the gearbox mount is not at the bottom of the mounting slot.
1) Remove the fixing nut.
2) Reposition the gearbox to the bottom of the slot.
3) Fit an additional washer, and replace the nut.
4) Re-torque the gearbox mount to 48 ft.lbs (65 Nm).
5) Check that clearance between the gearbox and floor has been achieved
Note:
Check all other transmission mount hardware are to the correct torque settings.
WARRANTY
Normal warranty policy and procedures apply.
COMP. CODE
5C2A
SRO
44.20.89/26 Check and adjust gear box mounting (automatic) 00.15 hours
