M/T - Front Cover Oil Leaks

No: 37/01/03/NAS
Ref: 37/01/99/NAS
Issue: 1
Date: 06/06/03

Improved Manual Transmission Sealing

AFFECTED VEHICLE RANGE:

Discovery (U) 1994 - 1997

Defender (LD) 1994 - 1995

SITUATION:

OIL SEEPAGE FROM MANUAL TRANSMISSION FRONT COVER

Incomplete sealing between the front cover and the transmission case can result in oil seepage and a customer complaint.

RESOLUTION:

SEAL WITH NEW MATERIALS

A new sealant is now recommended when assembling or repairing manual gearboxes. The Loctite product Loctite 5900 should be used.

PARTS INFORMATION:

STC50550........Loctite 5900 Qty as required (Shop supply)

WARRANTY CLAIMS:

Normal warranty policy and procedures apply.
Material allowance is included in labor operation.

REPAIR PROCEDURE

NOTE:
This Technical Bulletin supersedes Technical Bulletin 37/01/99/NAS for front cover repairs only.

LOCTITE 5900 WITH TRANSMISSION REPAIRS

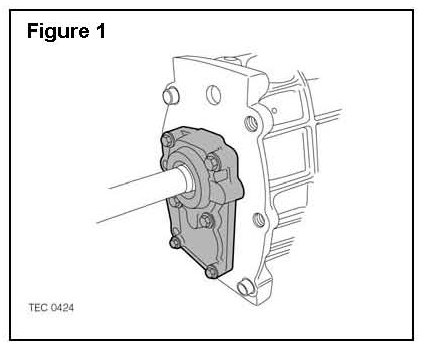

1. Use the improved sealant, Loctite 5900 available from Land Rover when sealing the front cover (Figure 1)
