Cabin Air Filter / Purifier: Service and Repair

Pollen Filter Replacement

Service repair no - 80.15.42

Removal

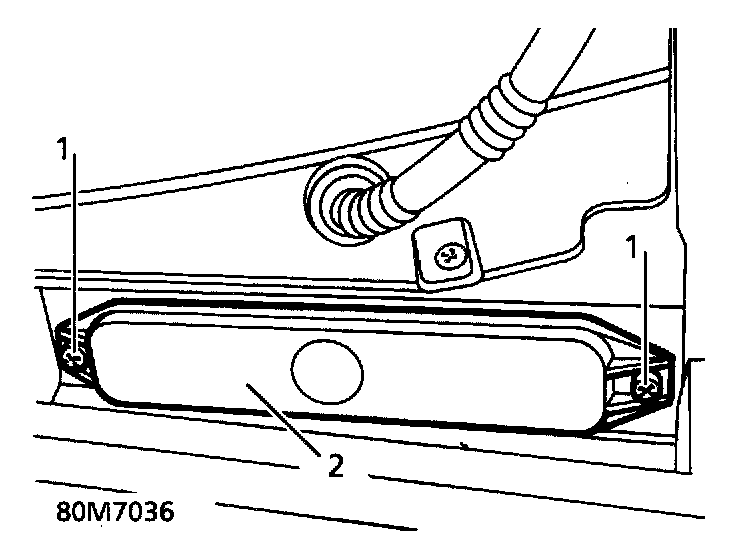

1. Remove 2 screws securing each pollen filter cover.





2. Remove pollen filter covers.

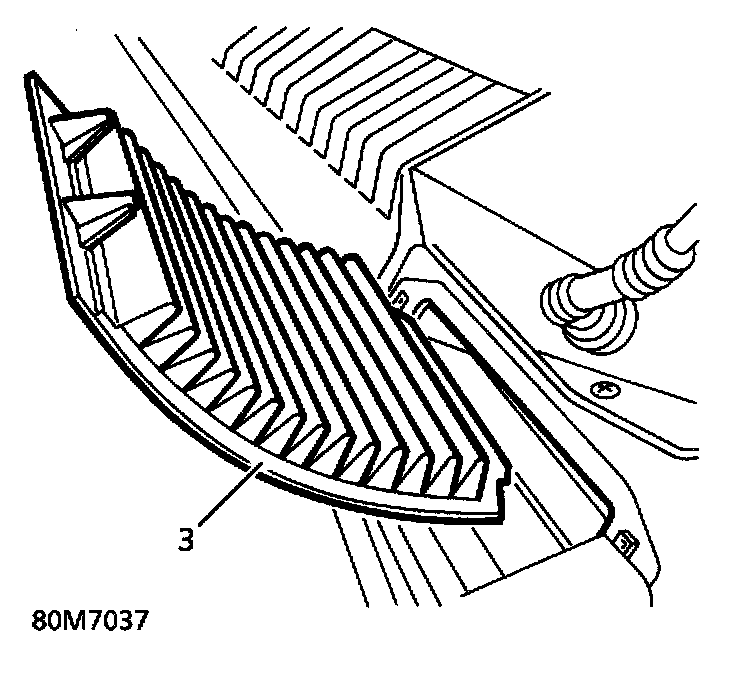

3. Remove pollen filters.





Refit
4. Reverse removal procedure.
