Clock: Service and Repair

Service repair no - 88.15.07

Remove
1. Remove instrument pack binnacle. Service and Repair
2. Move both front seats to the fully rearward position.

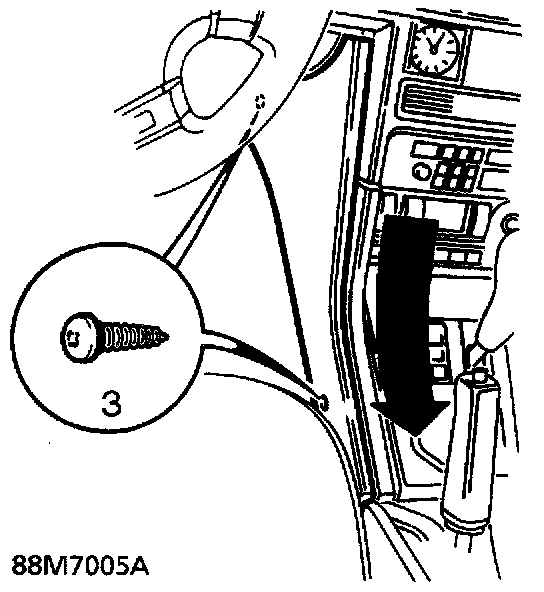

3. Remove screws securing each side panel to centre console, release sprag clips from fascia switch pack. Remove side panels.

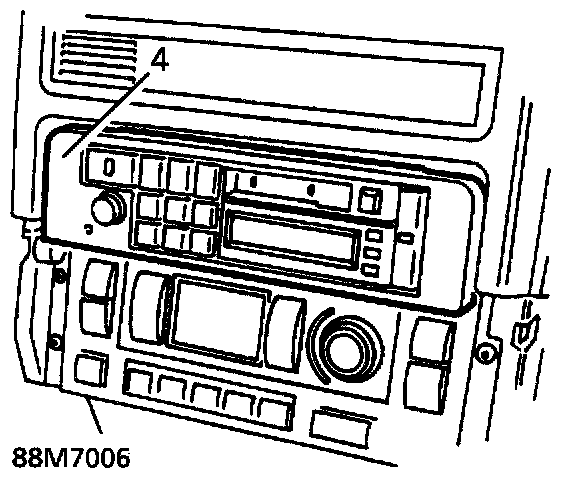

4. Remove radio applique.

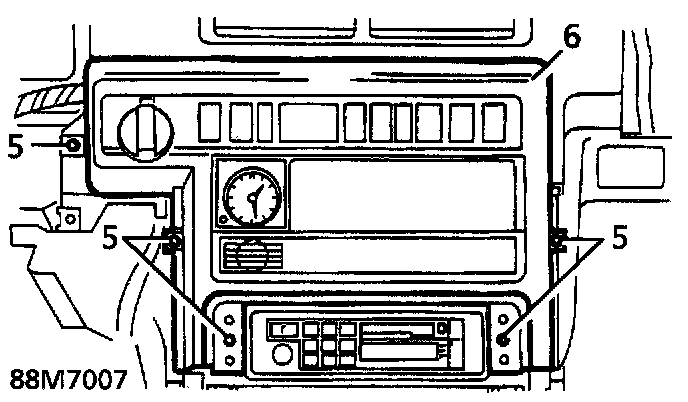

5. Remove 5 screws securing switch pack.







6. Release switch pack from fascia.

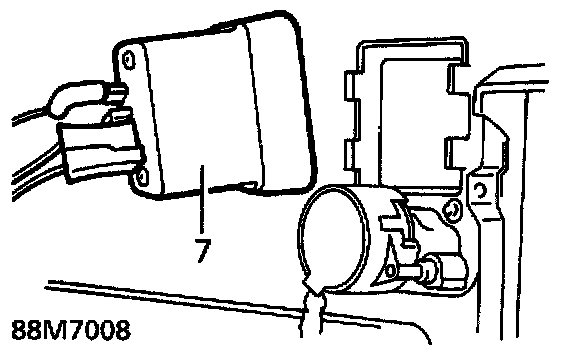

7. Disconnect multiplug and Lucar connector from clock.







8. Release clips. Remove clock from switch pack.

Refit
9. Reverse removal procedure.
