Tail Lamp: Service and Repair

Remove

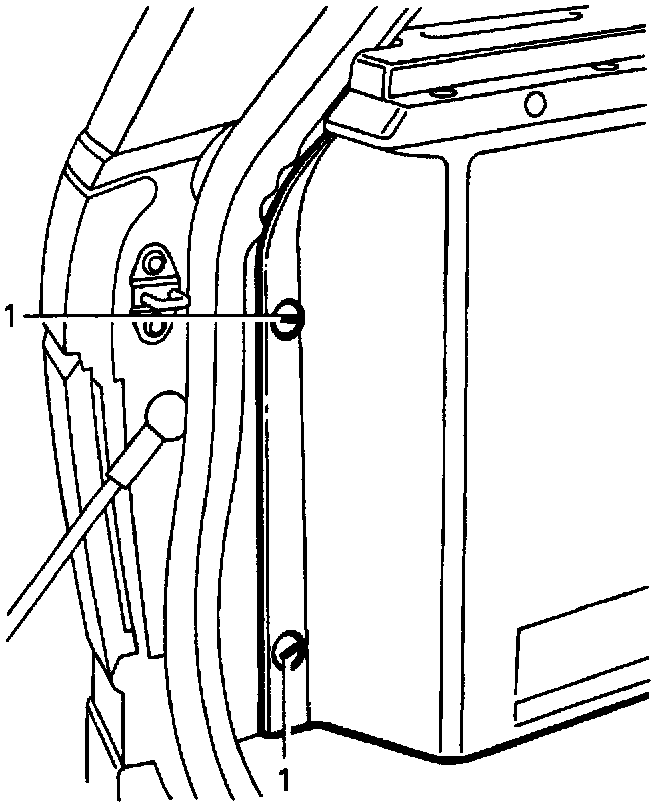

1. Release 2 studs securing rear speaker resonator cover. Release cover.

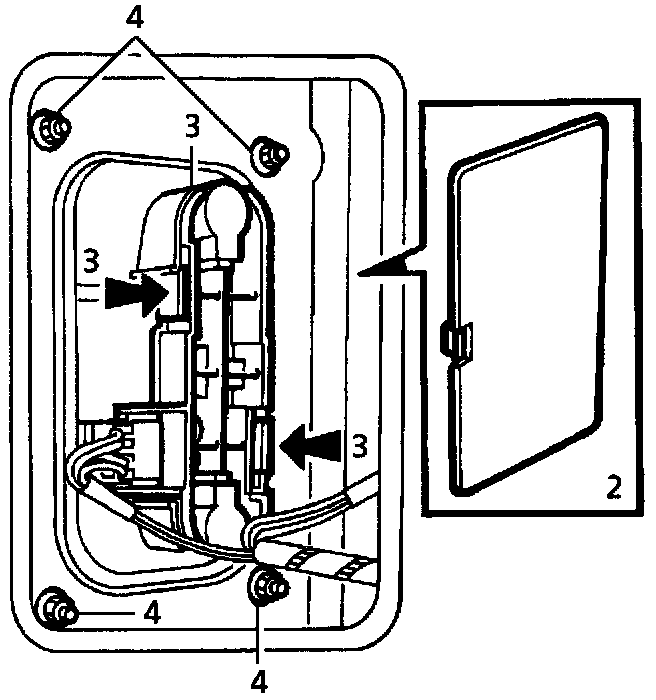

2. Remove tail lamp access cover.
3. Release bulb holder from lamp.
4. Remove 4 nuts. Remove tail lamp.

Refit
5. Reverse removal procedure.
