Squeaks and Rattles - Repair & Diagnosis
5/04/9676/12/96/US
SUBJECT:
Squeaks and Rattles - Diagnostic Bulletin
MODEL:
Range Rover 4.0/4.6
AFFECTED VEHICLES:
LP All
LH
LJ
LD
DETAIL
This bulletin has been developed to address the major squeaks and rattle issues on Range Rover 4.0/4.6 vehicles. Each section will refer to the complaint, cause, and action. The bulletin has been designed to bring to your attention all the previous bulletins on this subject, and also includes a number of new issues.
ACTION REQUIRED

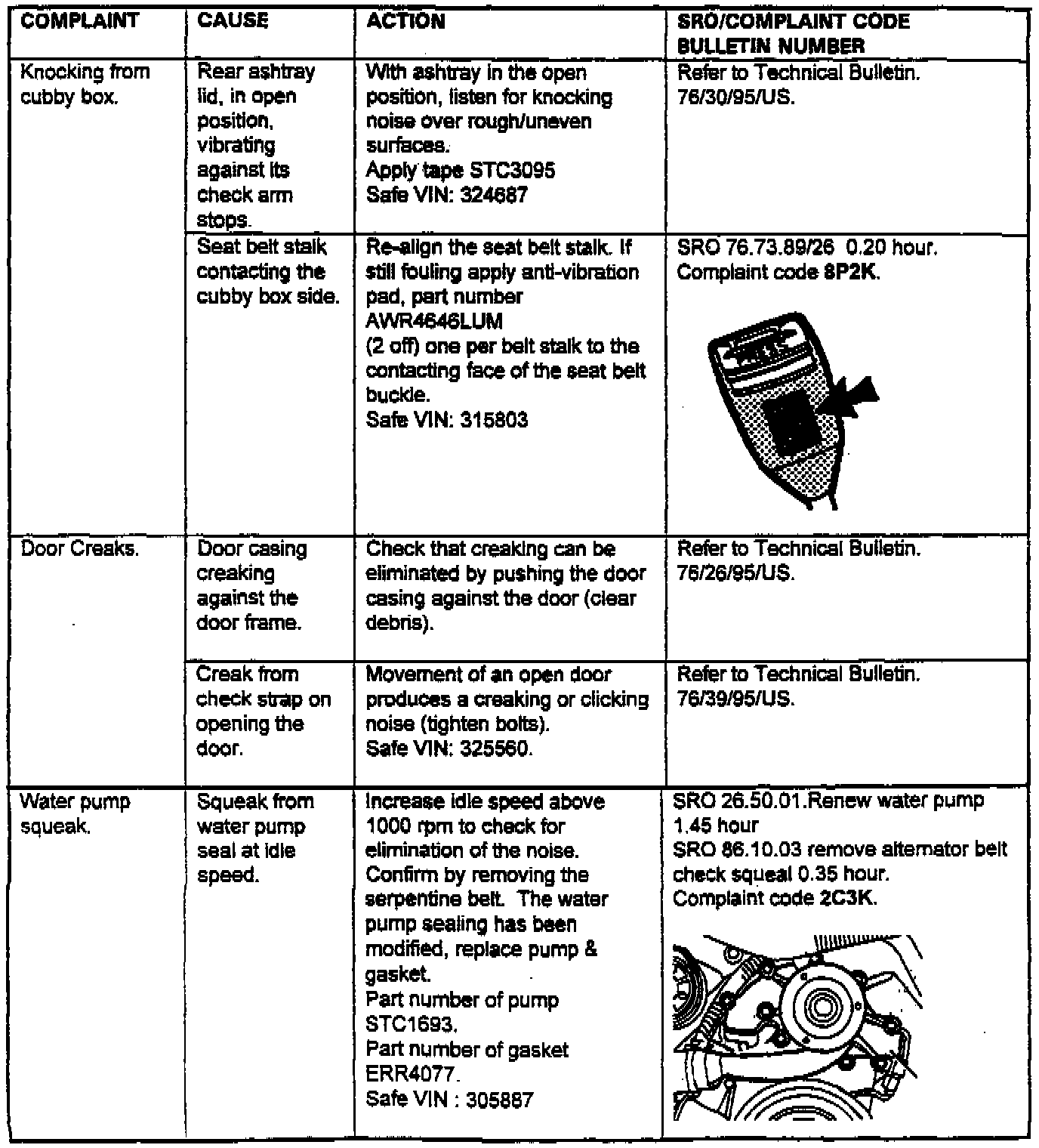

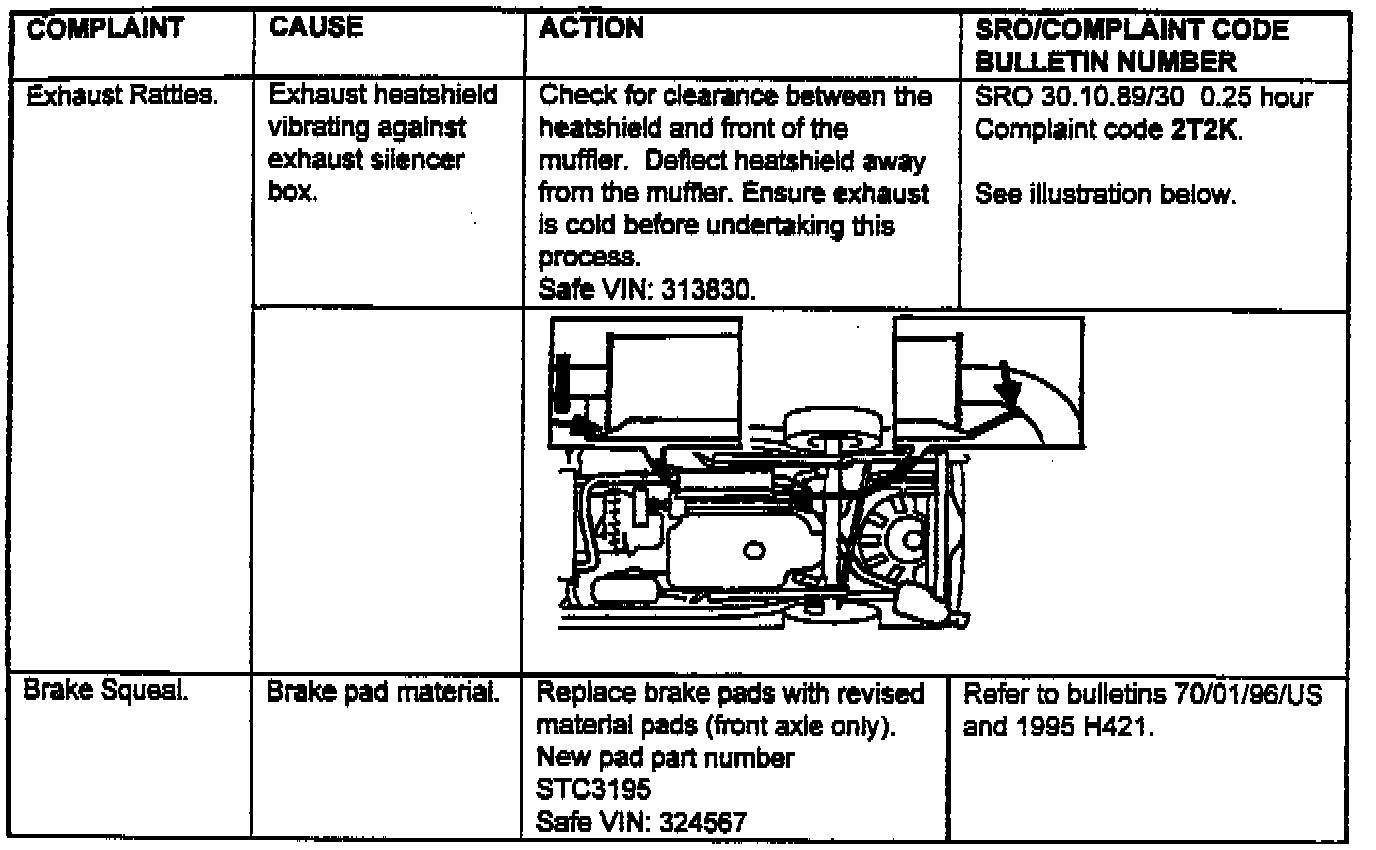

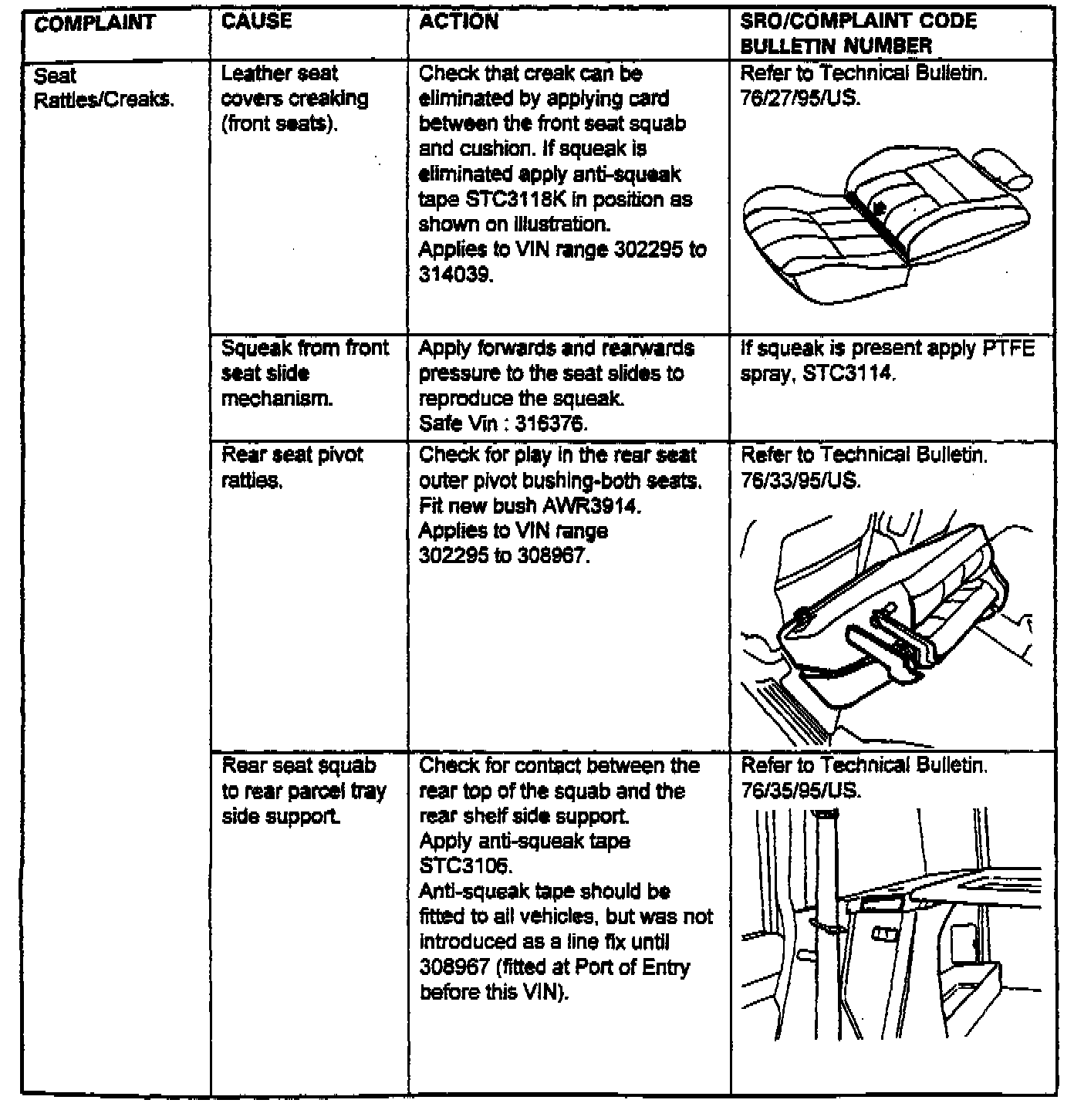

In the event of rattles being found on a vehicle refer to the easy to follow table in illustrations above.
PARTS INFORMATION
See the bulletins and procedures.
WARRANTY:
Normal policy and procedures apply
COMP.CODE:
See table above in illustrations.
SRO:
Refer to individual bulletins as necessary for the SRO.
