HVAC Control Unit Illumination - Replacement Bulbs
04/18/9786/08/97/NAS
SUBJECT
PRIDE - HVAC Control Unit Illumination
MODEL
Range Rover 4.0/4.6
AFFECTED VEHICLES
LP 1995-1997
LH
LJ
LD
DETAIL
Land Rover is introducing replacement bulbs for the HVAC control panel LCD illumination to allow service of this item without the need to replace the control unit.
ACTION REQUIRED
When LCD illumination has failed, replace the bulb with the specified part.
PARTS INFORMATION
LRNA2352MFX6 (Qty.1)
Replacement Bulb (Green Base, 12V, 2 Watt)
PROCEDURE
Procedure
1. Remove the HVAC control unit as outlined in the Workshop Manual, Section 82.

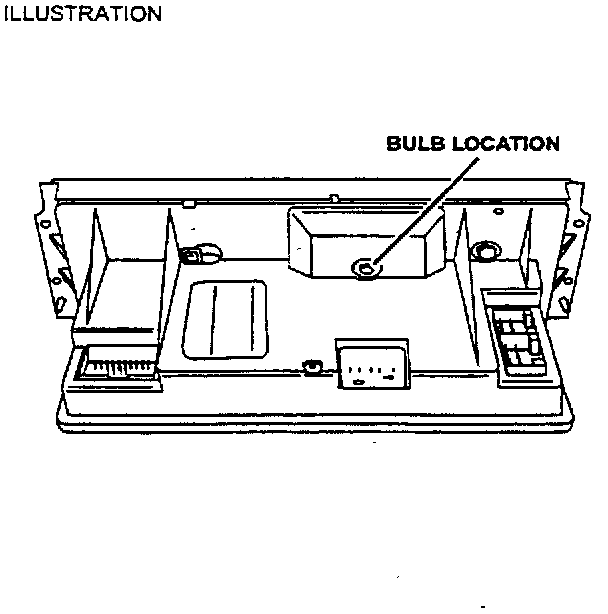

2. Remove the bulb which lights the LCD (Green base, 12V, 2 Watt) and inspect for bulb failure (Illustration).
3. If a failed or faulty bulb is found, replace the bulb.
NOTE:
Never replace other HVAC control unit illumination bulbs (12V, 1.2 Watt black-base) with a higher wattage bulb.
WARRANTY
Normal warranty procedures and policies apply.
COMP. CODE
SRO
86.45.41 - Time 0.55 hr.
Replace LCD bulb
