Interior - Cold Air Drafts

Bulletin: P92-015

Section: Product

Date: 10/19/92

Model: Range Rover

Applicable to: USA/Canada

SUBJECT:

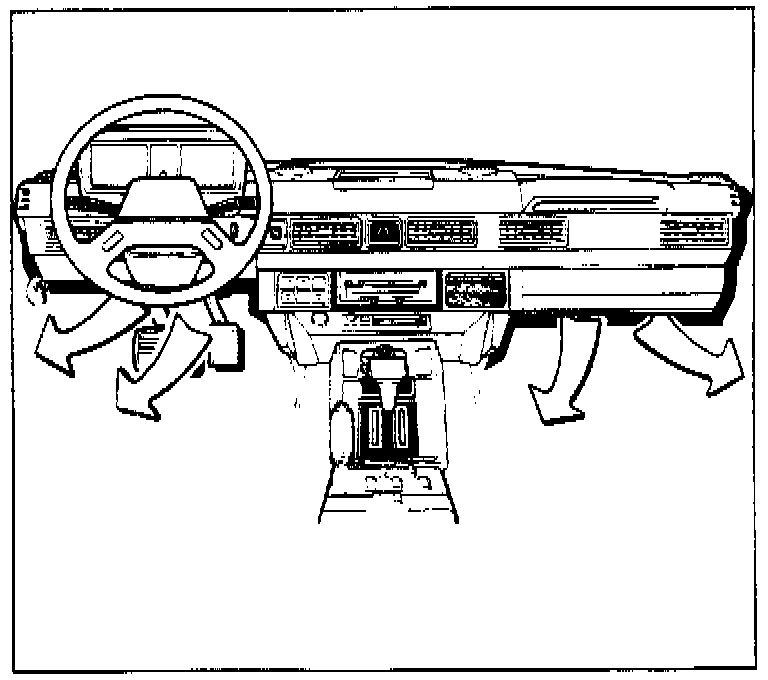

Cold Air Drafts

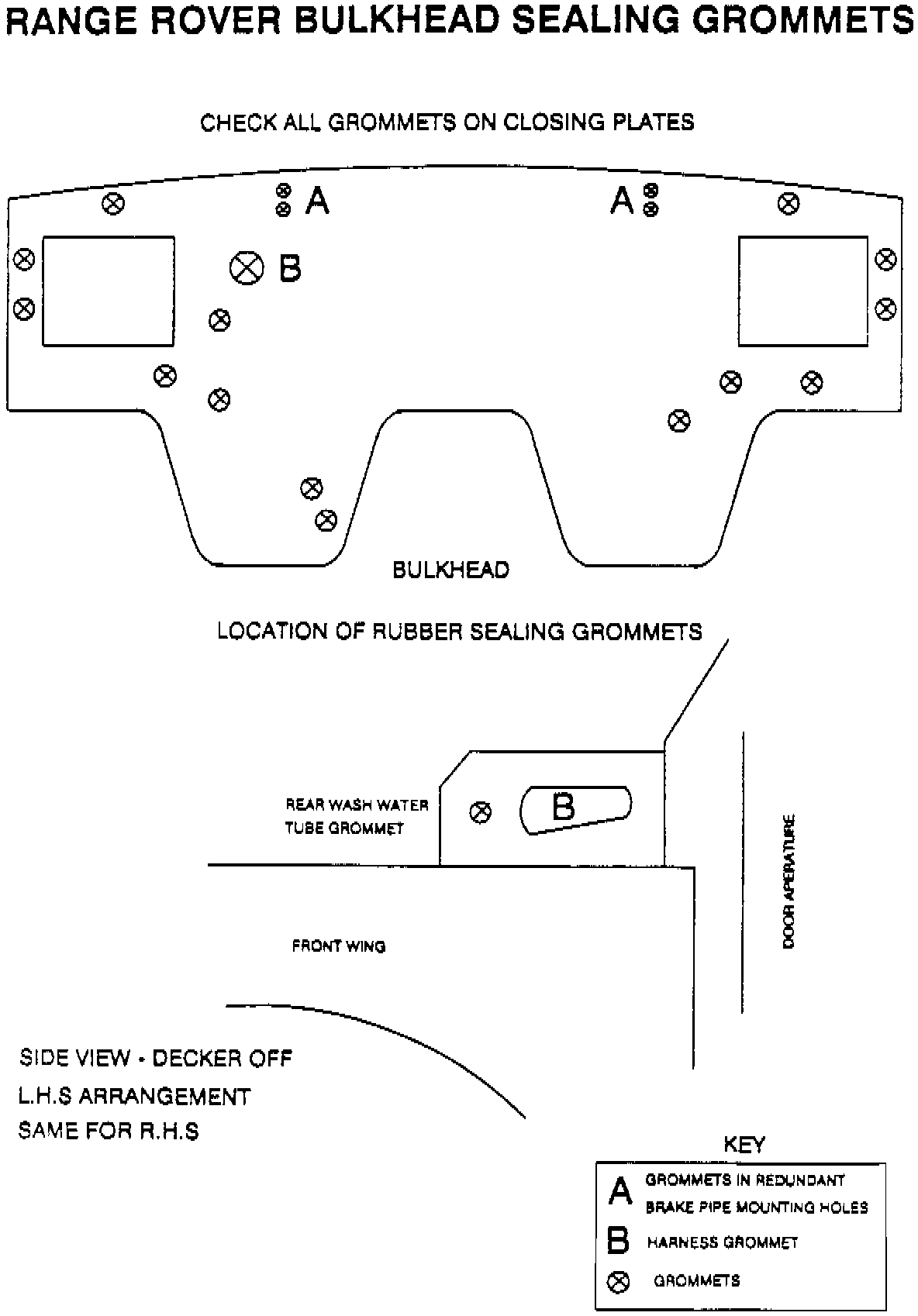

On the reverse side of this bulletin is a diagram of firewall (bulkhead) grommet holes in Range Rover vehicles 1987 to date.

With winter approaching, complaints of cold air drafts should include a thorough check of these openings - especially the unused ones.

Parts Information








Refer to the Range Rover parts microfiche for grommet part numbers as required.
