Headlamp Wiper Motor: Service and Repair

Headlamp Wiper Motor

Service Repair No - 84.25.12

Remove
1. Remove relevant wiper blade.
2. Remove relevant headlamp assembly.

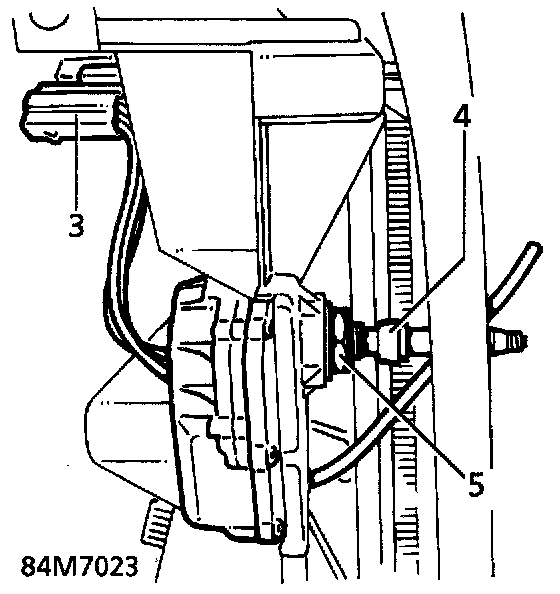

3. Release wiper motor multiplug from bracket.





4. Remove spindle seal.
5. Remove nut and flat washer securing motor to headlamp.
6. Remove wiper motor.

Refit
7. Reverse removal procedure.
8. Tighten motor securing nut to 10 Nm (7 ft. lbs.).
