Home >> Land Rover >> 1997 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Mid Line

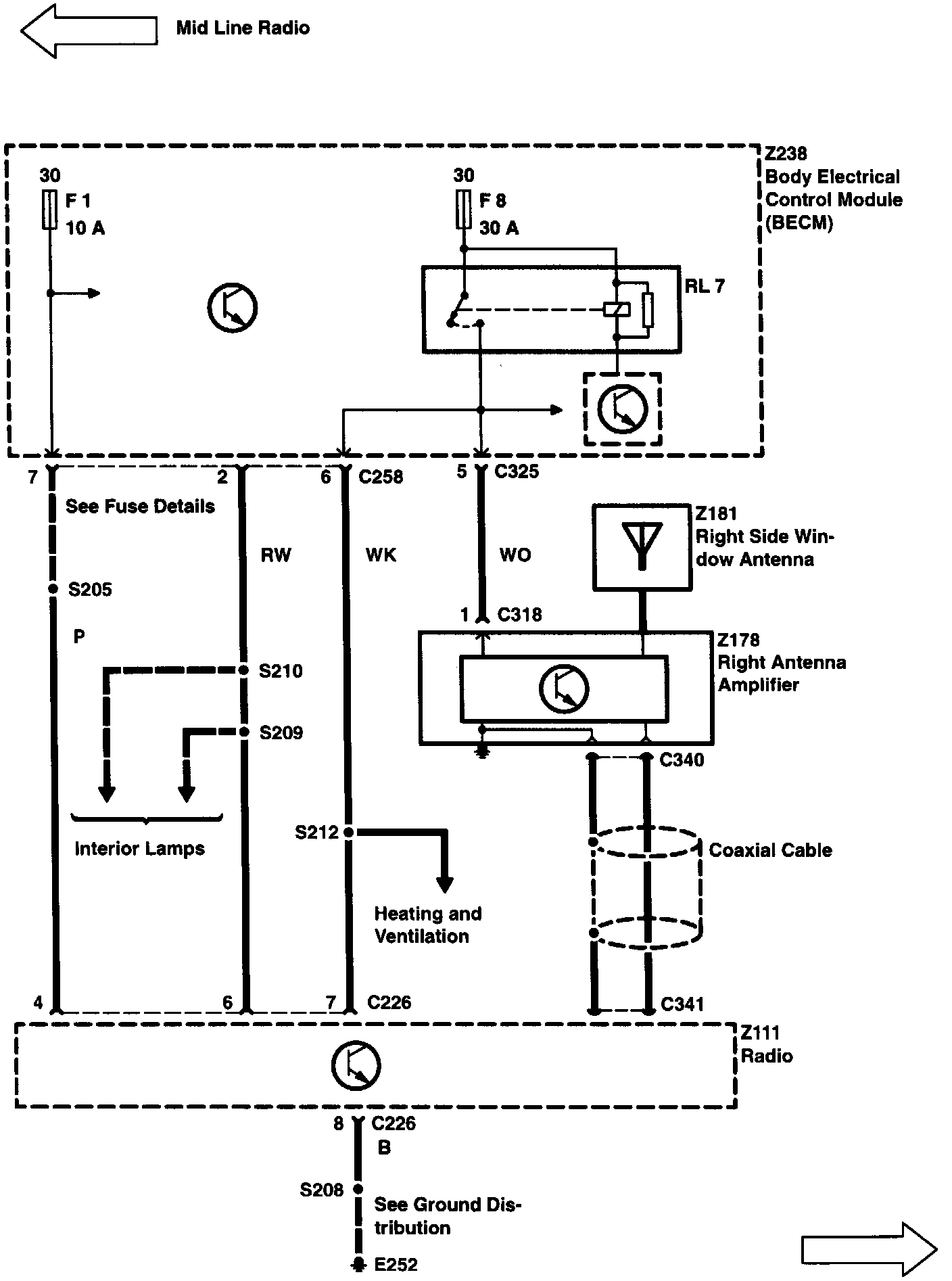

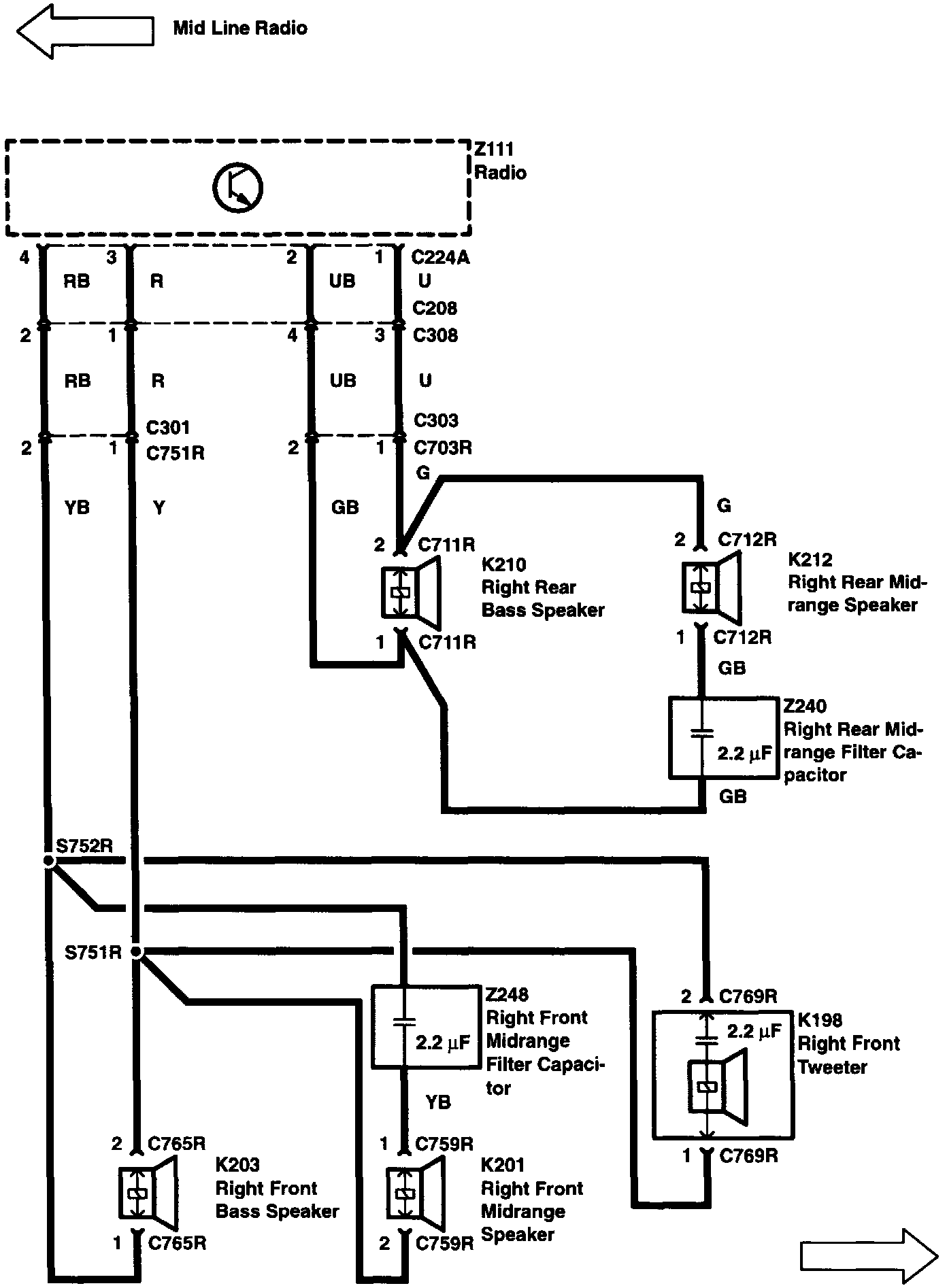

Mid Line

E6-5:





E6-6:





E6-7:
