Starter Motor: Service and Repair
Remove1. Disconnect battery earth lead.
2. Raise front of vehicle.
WARNING: Support on safety stands.
3. Remove gearbox RH acoustic cover.

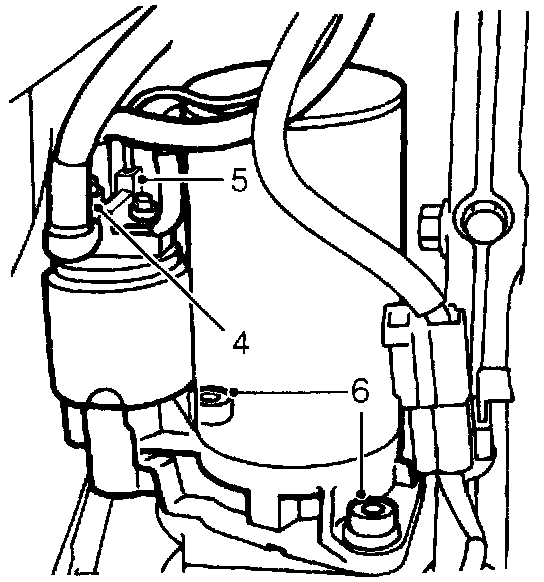

4. Remove nut securing 2 cables to starter solenoid and position cables aside.
5. Disconnect lucar from starter solenoid.
6. Remove 2 bolts securing starter motor to engine.
NOTE: Use extensions as illustrated to gain access to top bolt.
7. Remove starter motor.
Refit
8. Clean mating faces of starter motor and engine.
9. Fit starter motor to engine.
10. Fit bolts securing starter motor to engine and tighten to 45 Nm. (33 lbf.ft)
11. Connect Lucar to starter solenoid.
12. Connect cables to starter solenoid and secure with nut.
13. Fit gearbox RH acoustic cover.
14. Remove stand(s) and lower vehicle.
