Cruise Control Relay: Service and Repair

Neutral Lockout Relay (K110) (Auto Trans. Only)






1. Remove 3 studs securing fascia right hand side Closing panel.
2. Release and move Closing panel aside.

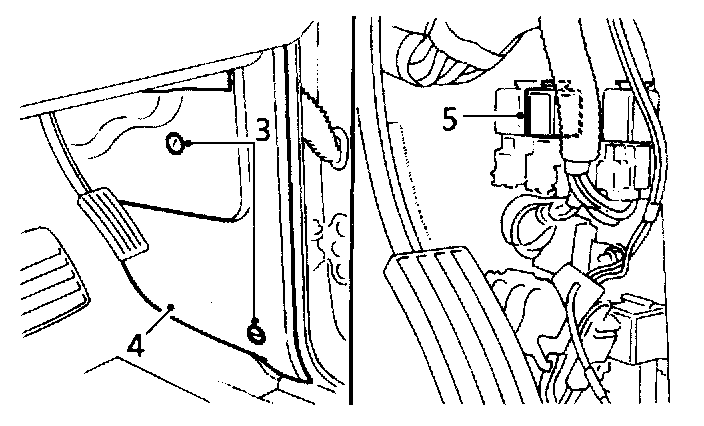

3. Remove 2 studs securing right hand side A post lower trim casing.
4. Remove casing.
5. Locate relay (neutral colored base) and release base from bracket.
6. Remove relay.

Refit
7. Reverse removal procedure.
