Antitheft and Alarm Systems
Antitheft and Alarm Systems

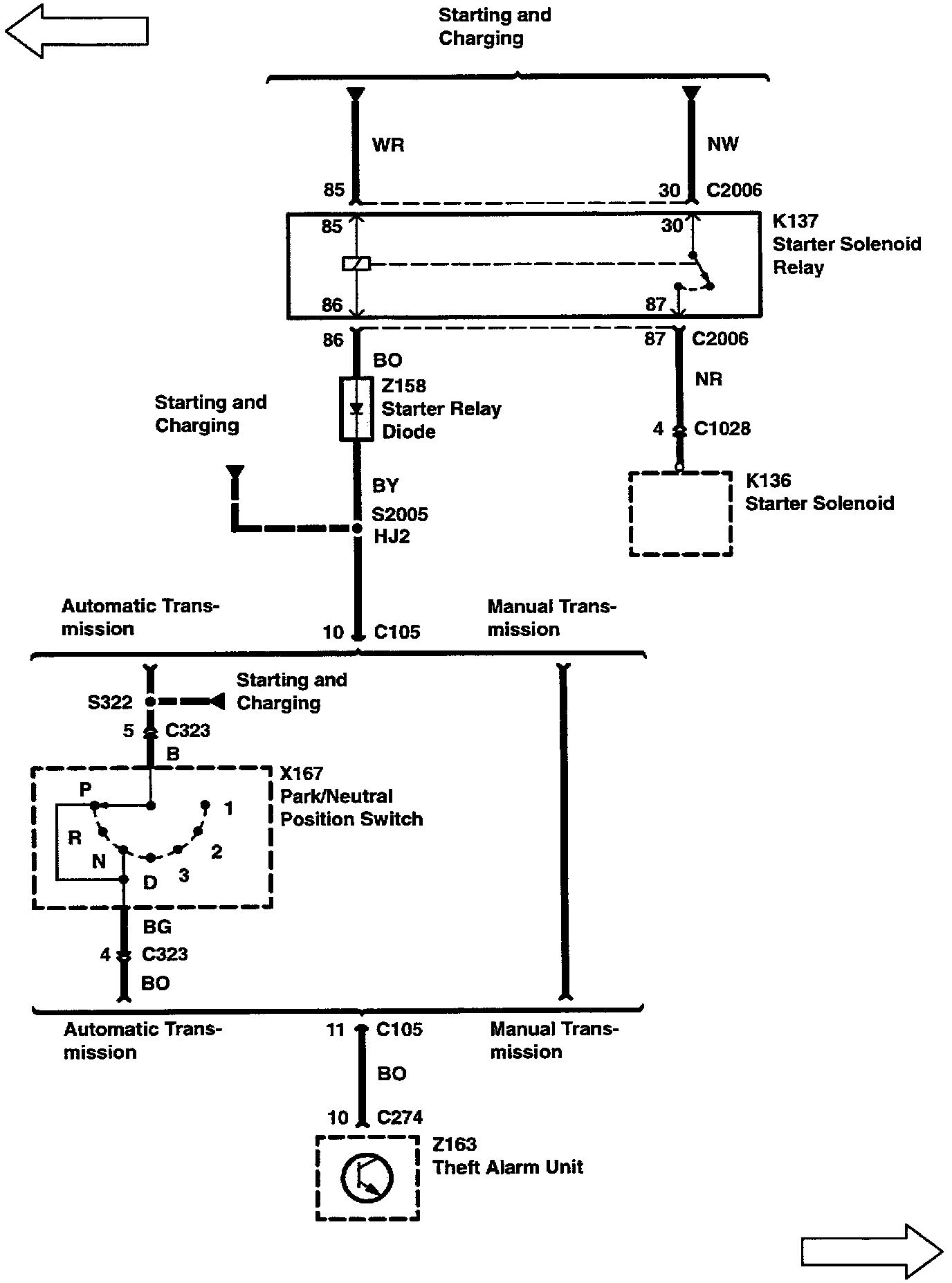

T2-5:

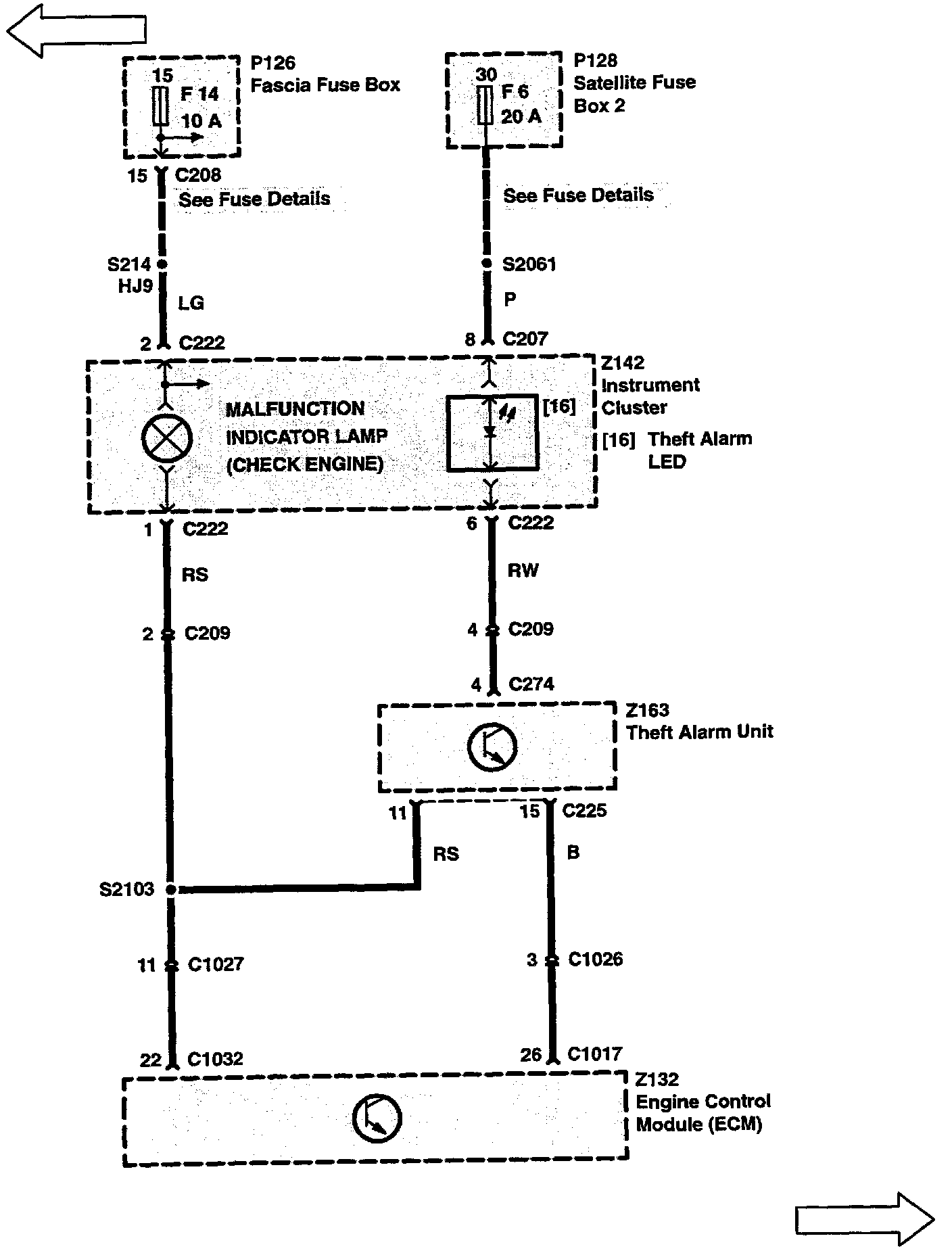

T2-6:

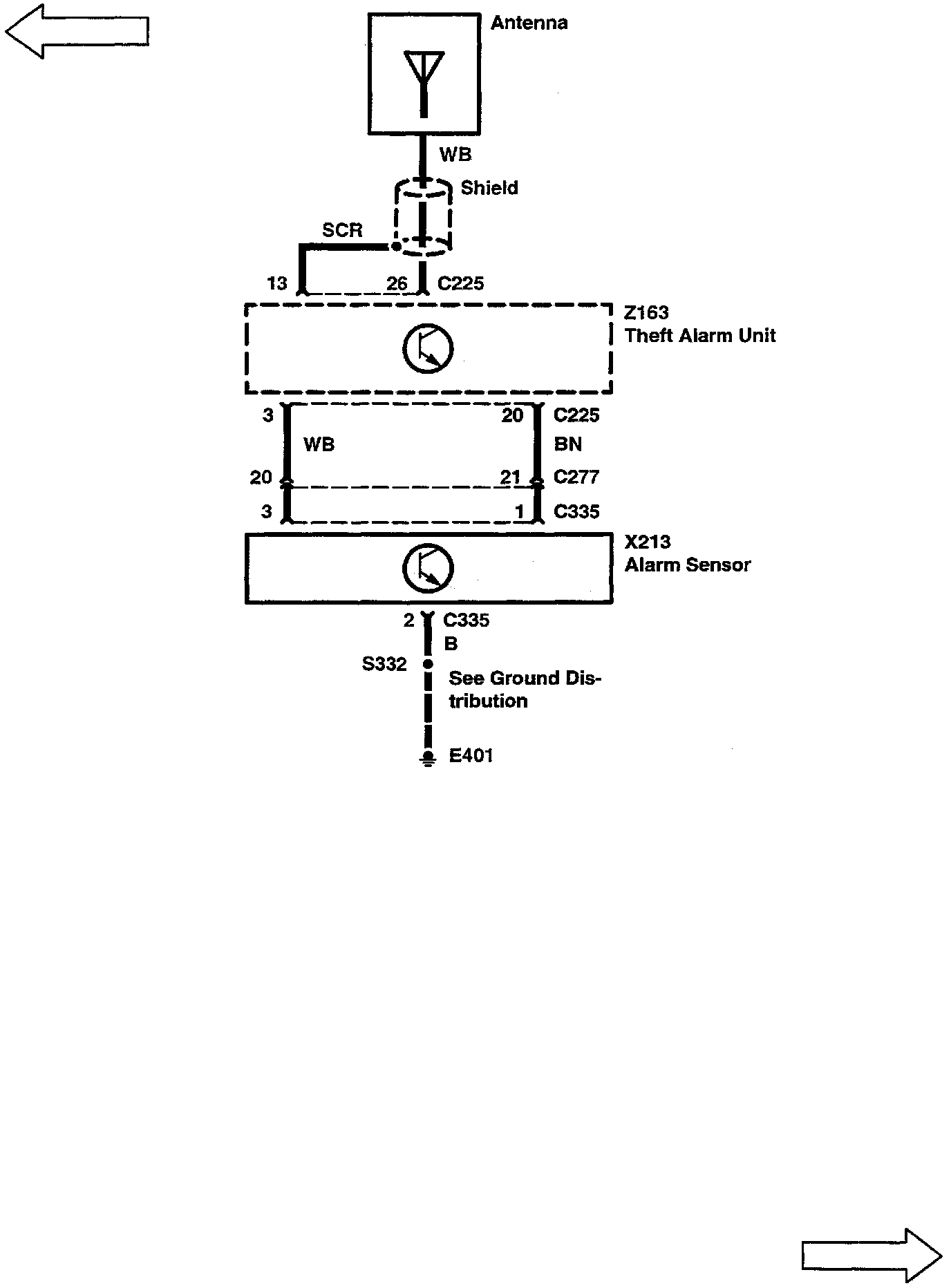

T2-7:

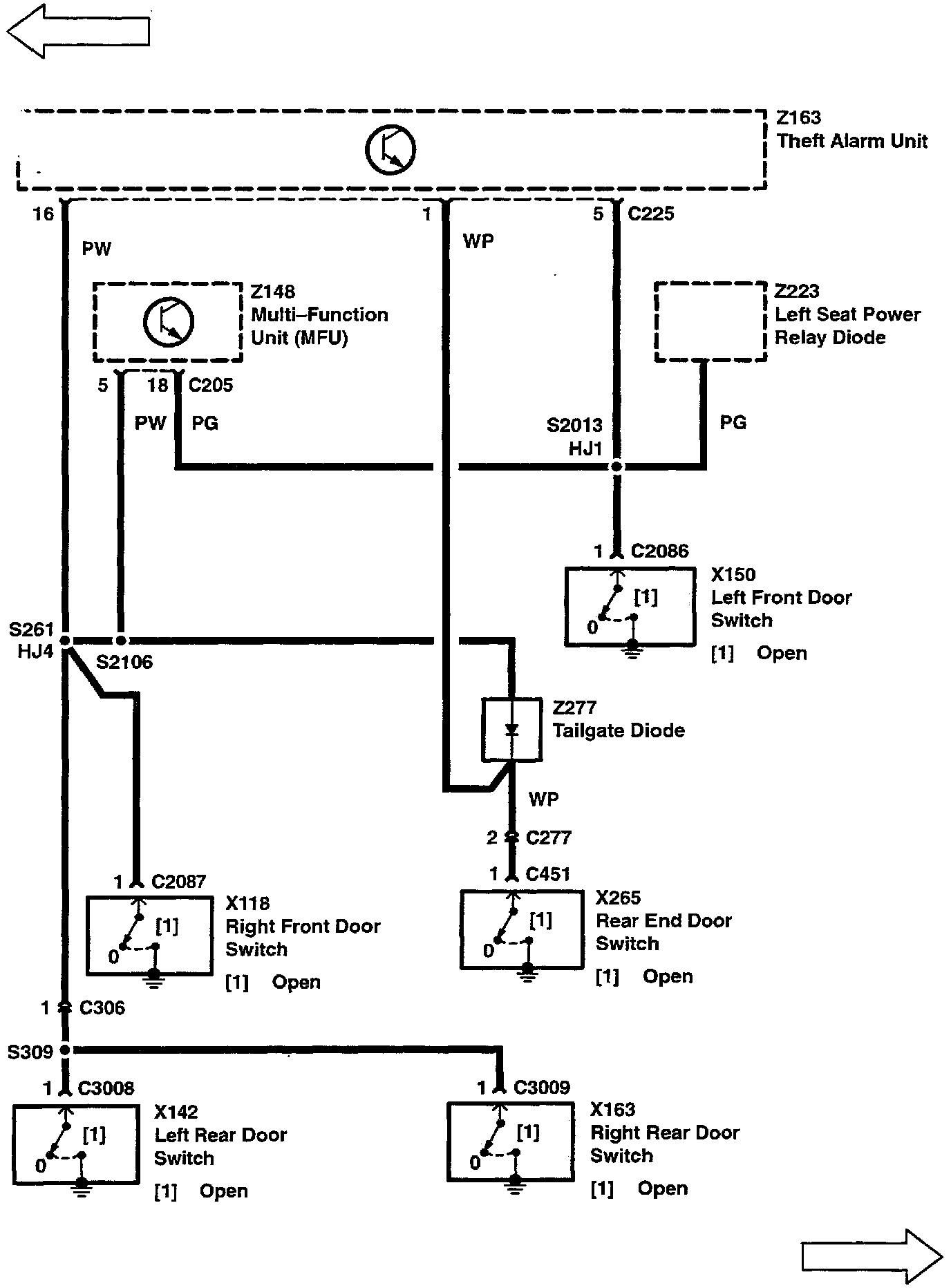

T2-8:
T2-9:
T2-10:
T2-11:
T2-12:
T2-13:
T2-14 Up to VIN 550523 & 717859:
T2-15 From VIN 550523 & 717859:
