Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1998
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Lamp
Brake Lamp
Stop Lamps

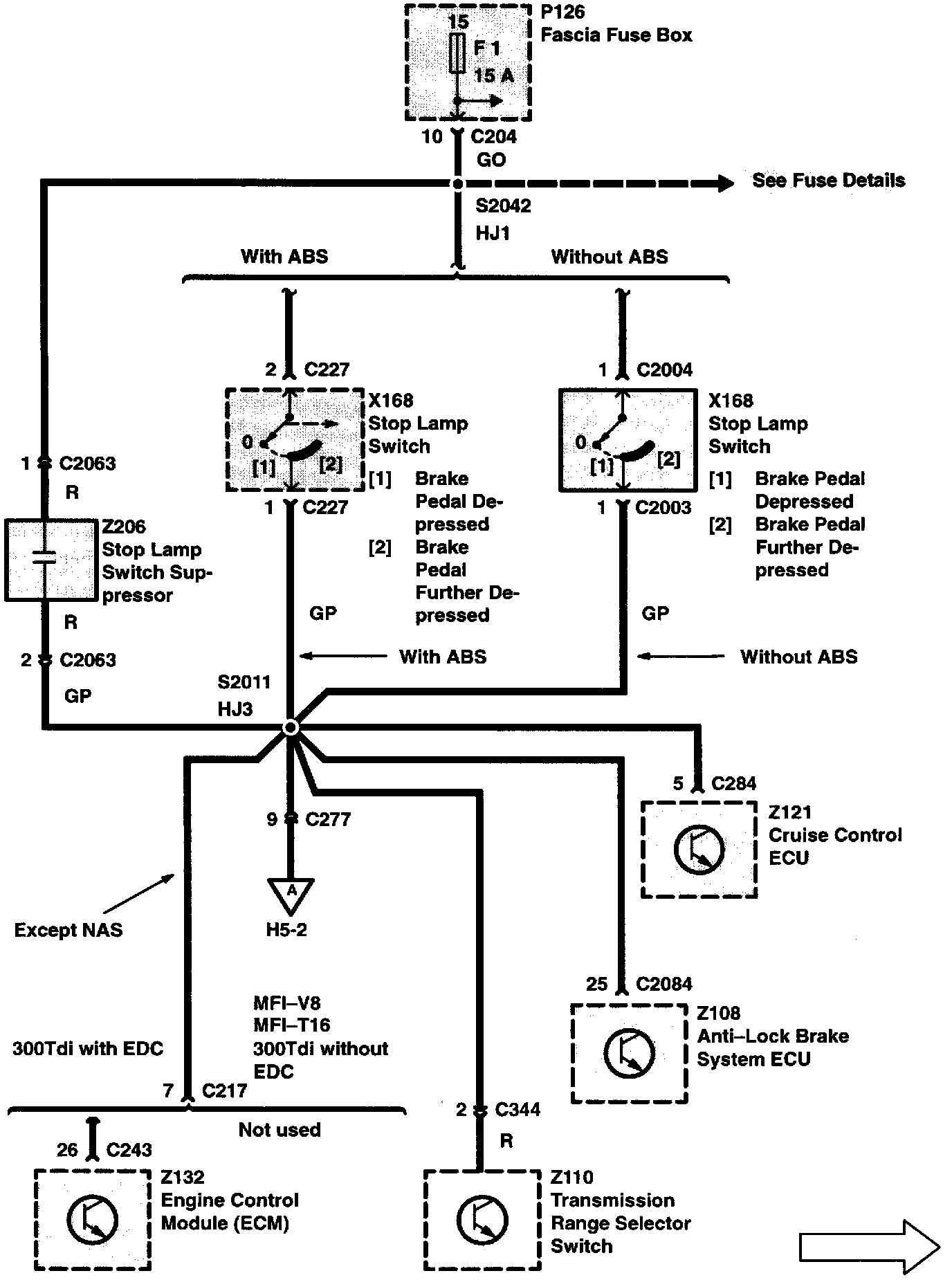

H5-1:

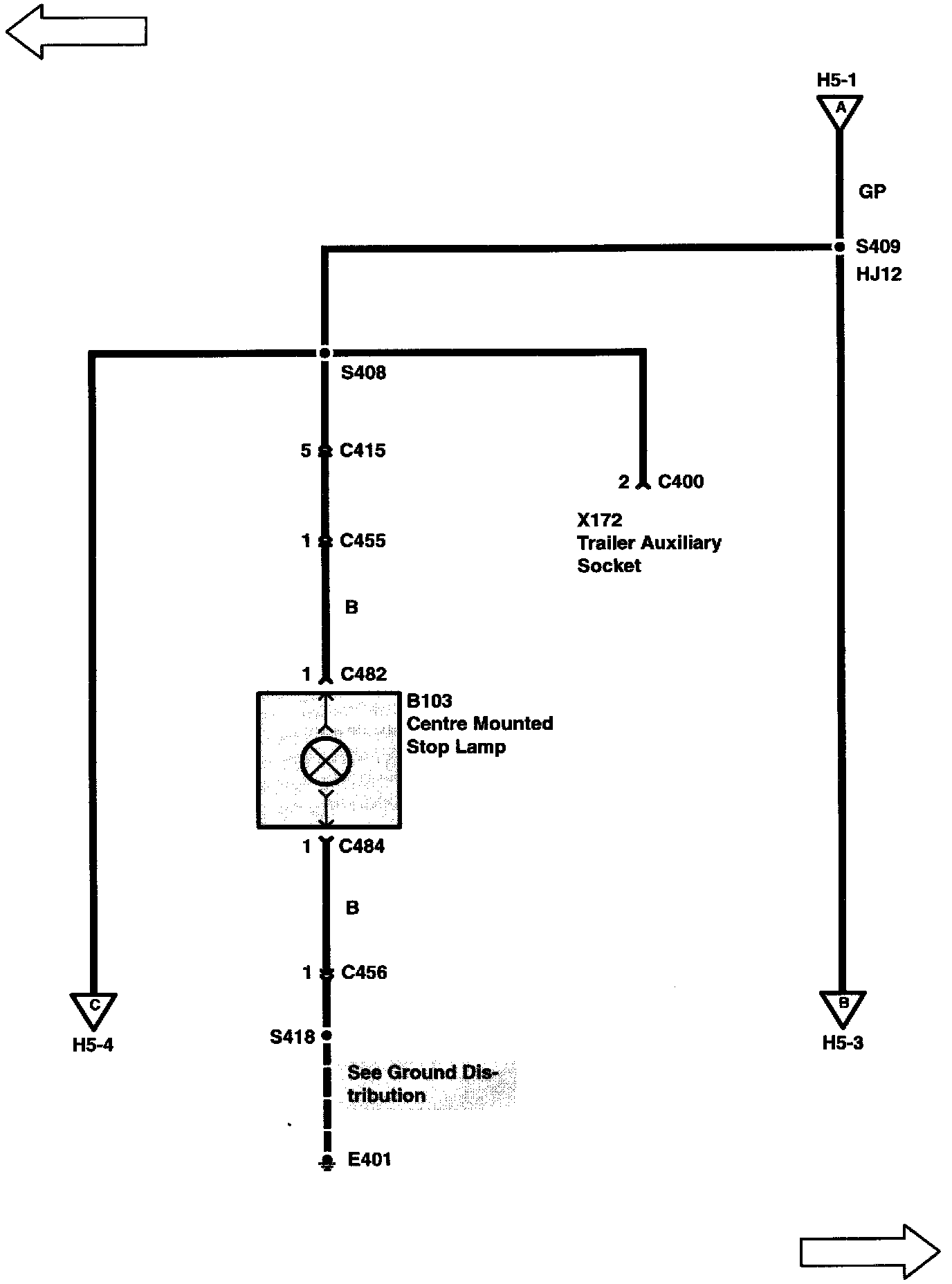

H5-2:

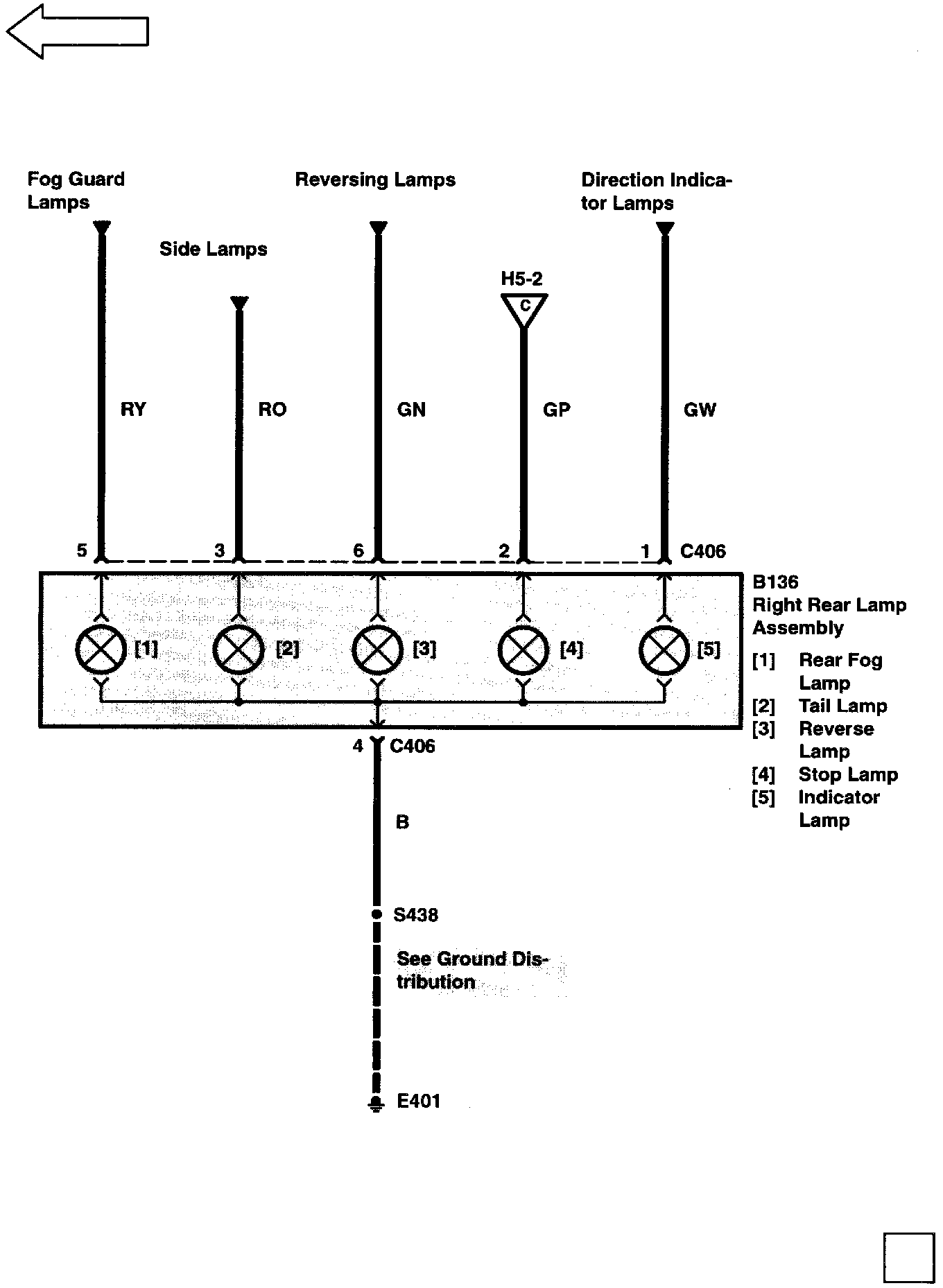

H5-3:
H5-4:
