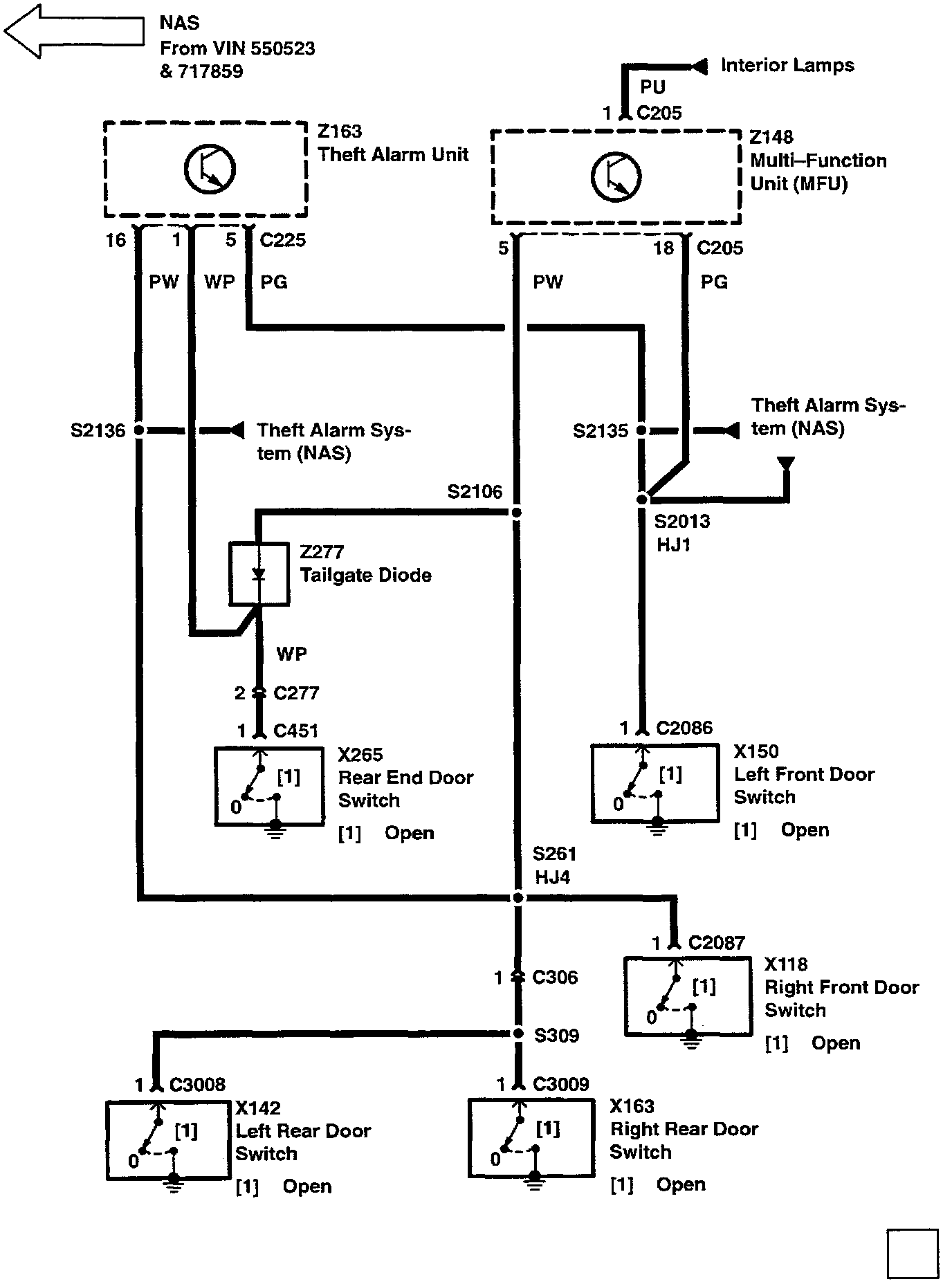

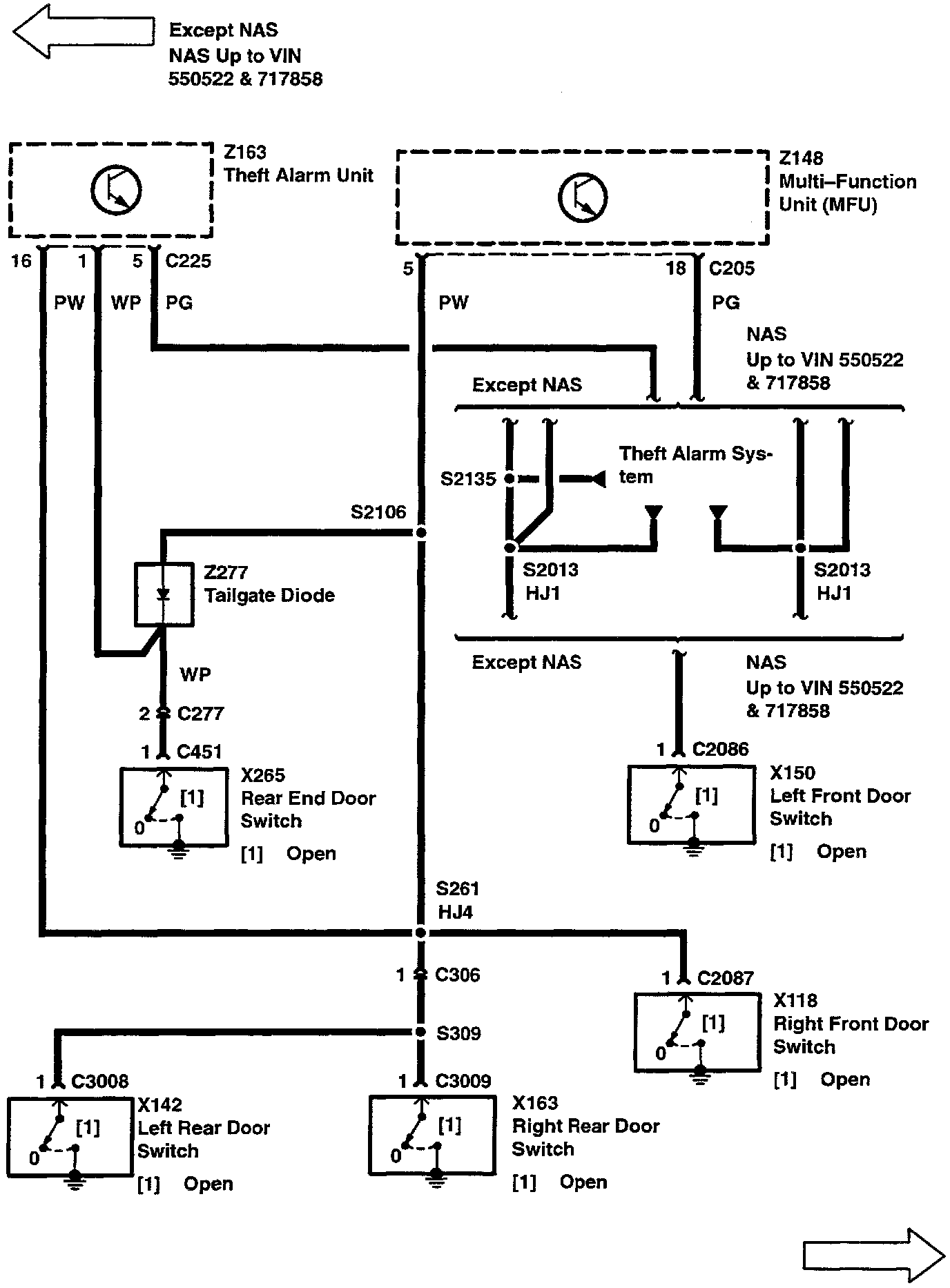

Courtesy Lamp

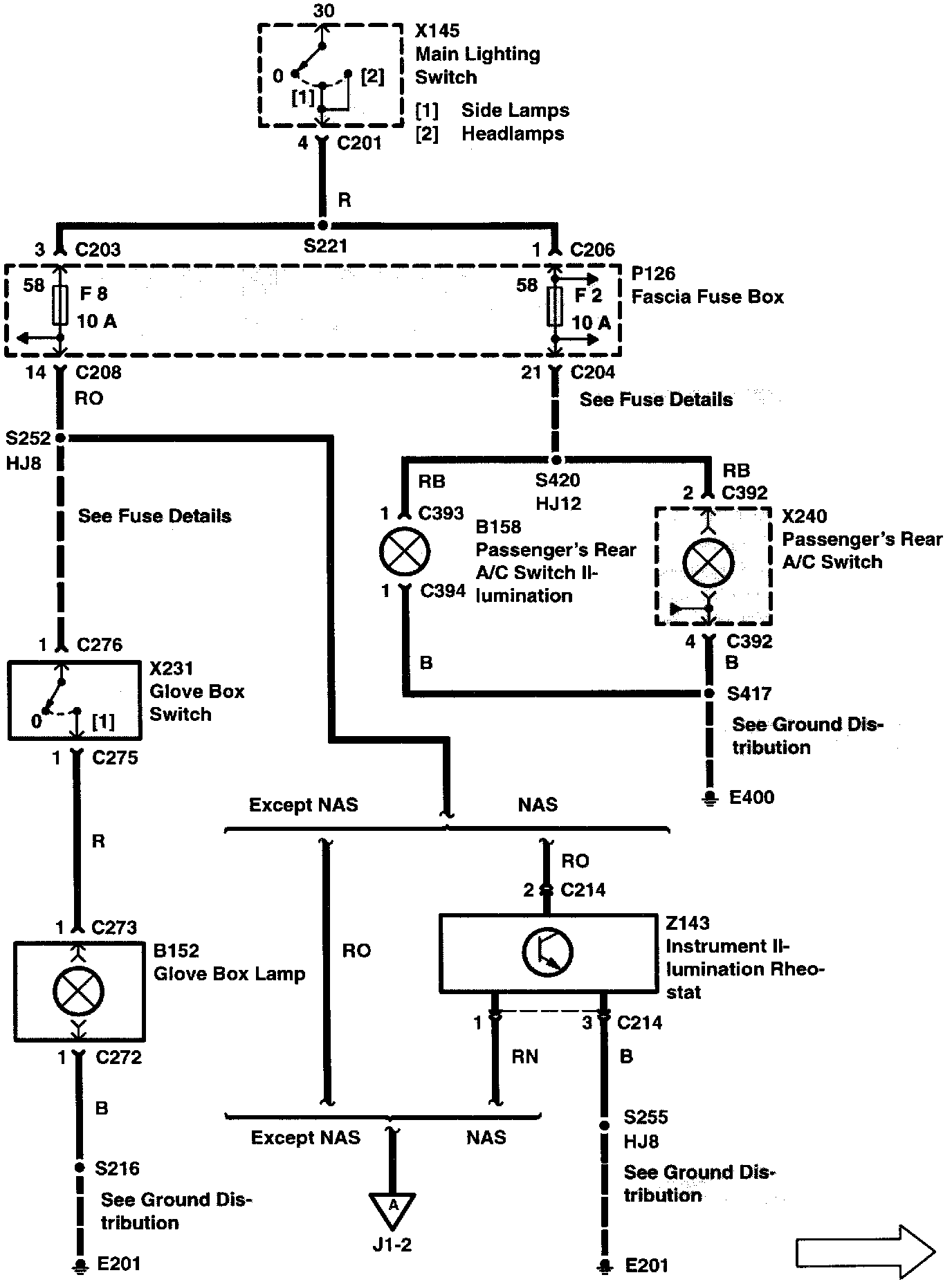

Interior Lamps

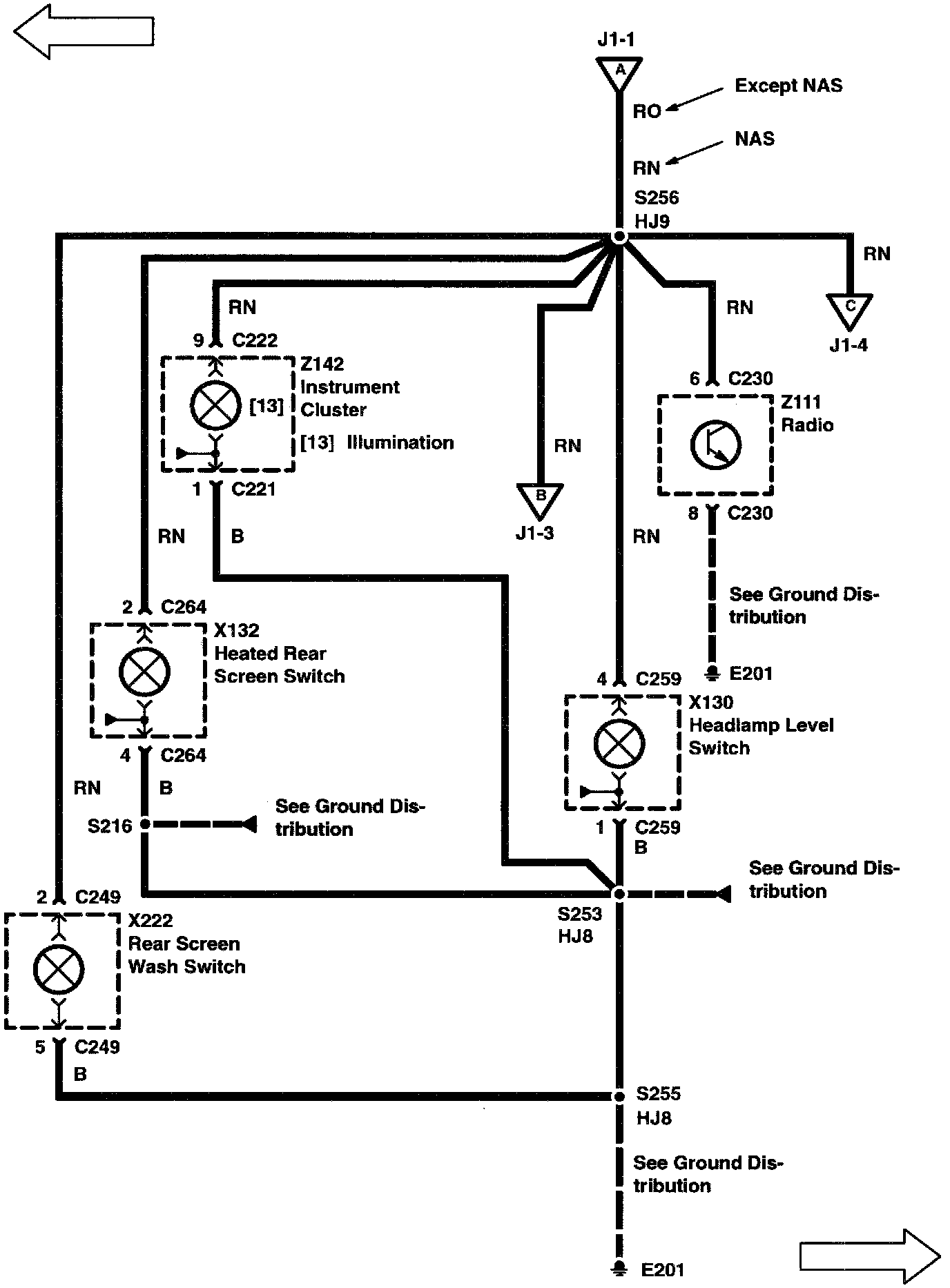

J1-1:

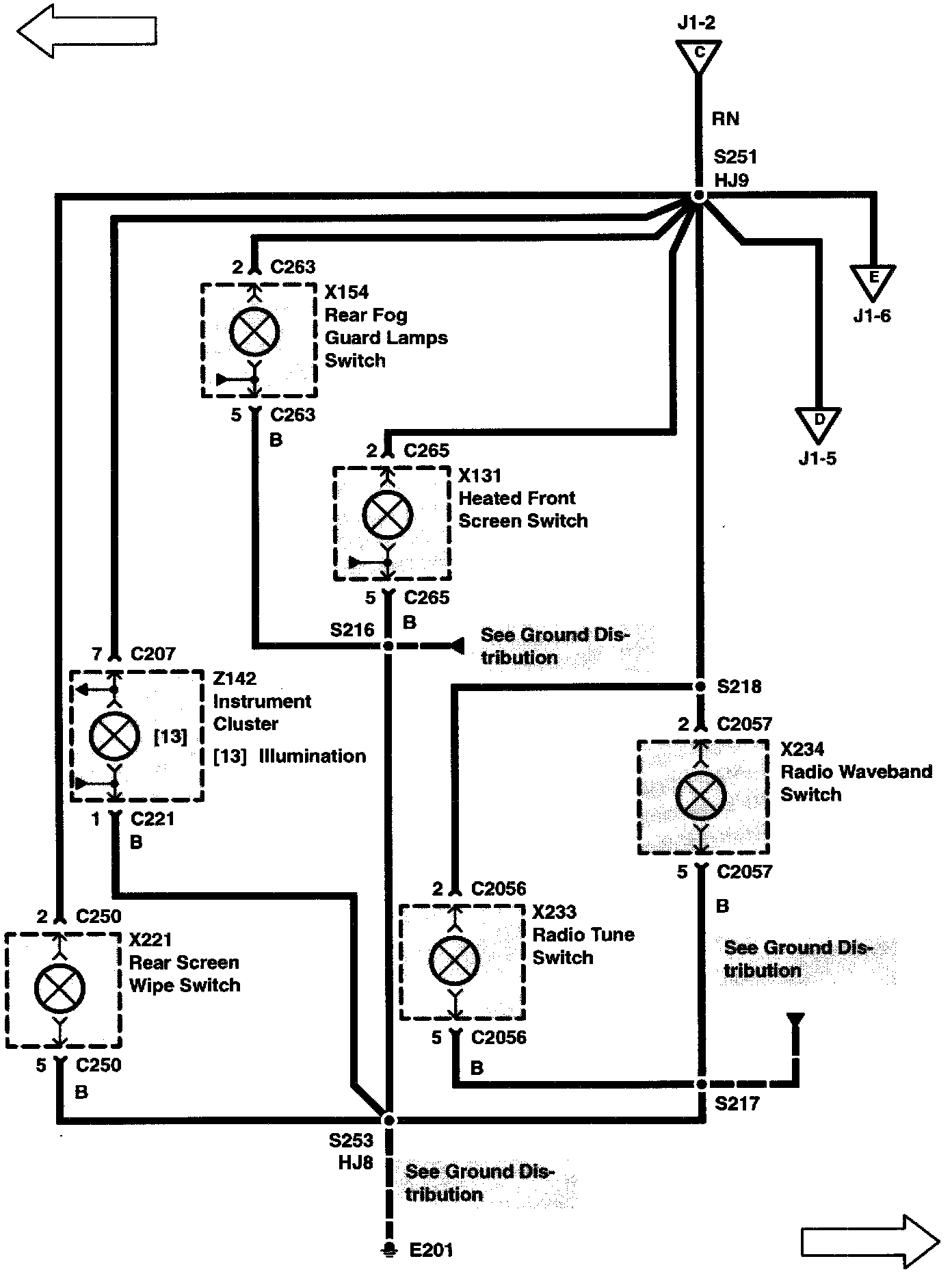

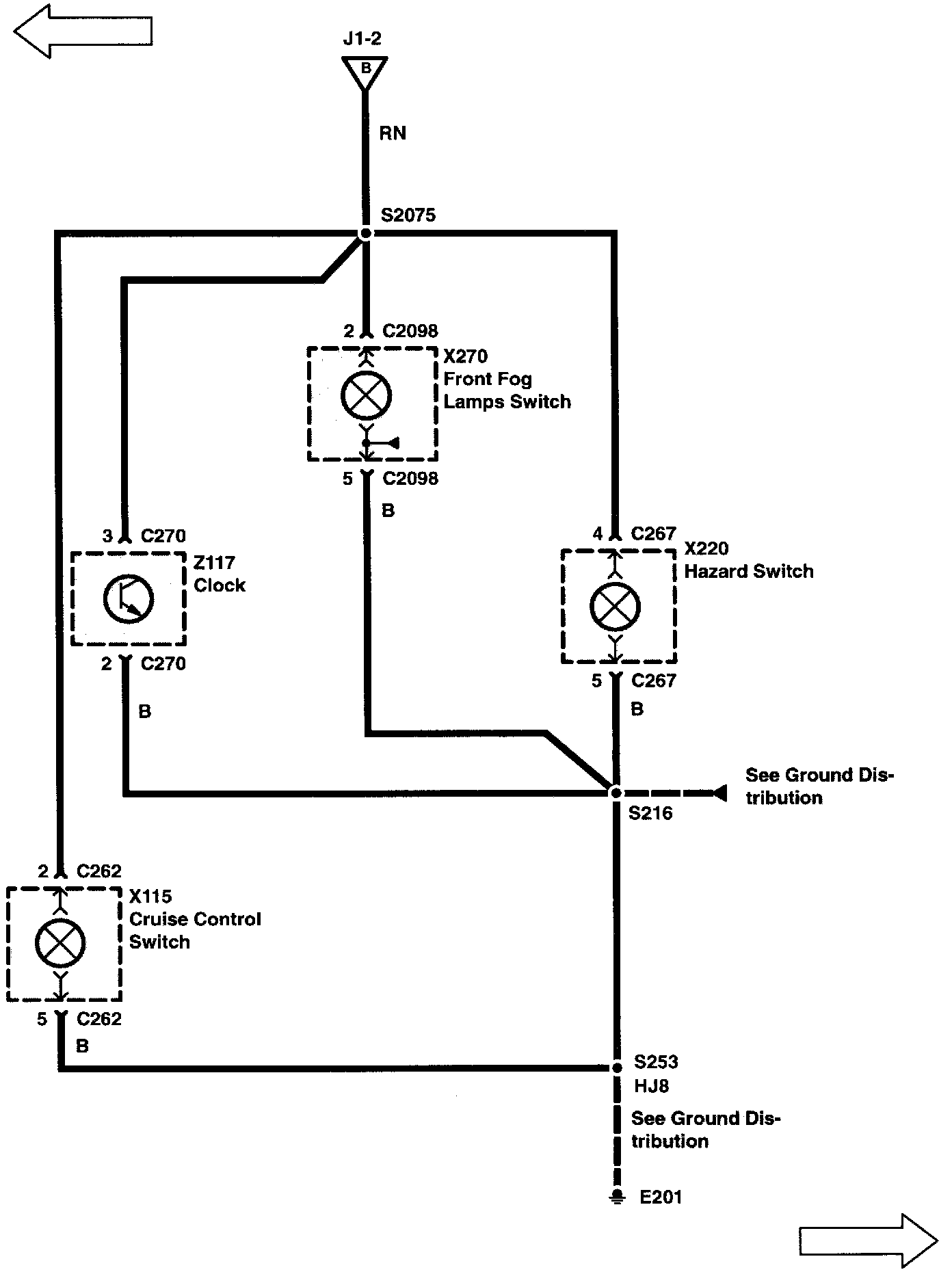

J1-2:






J1-3:

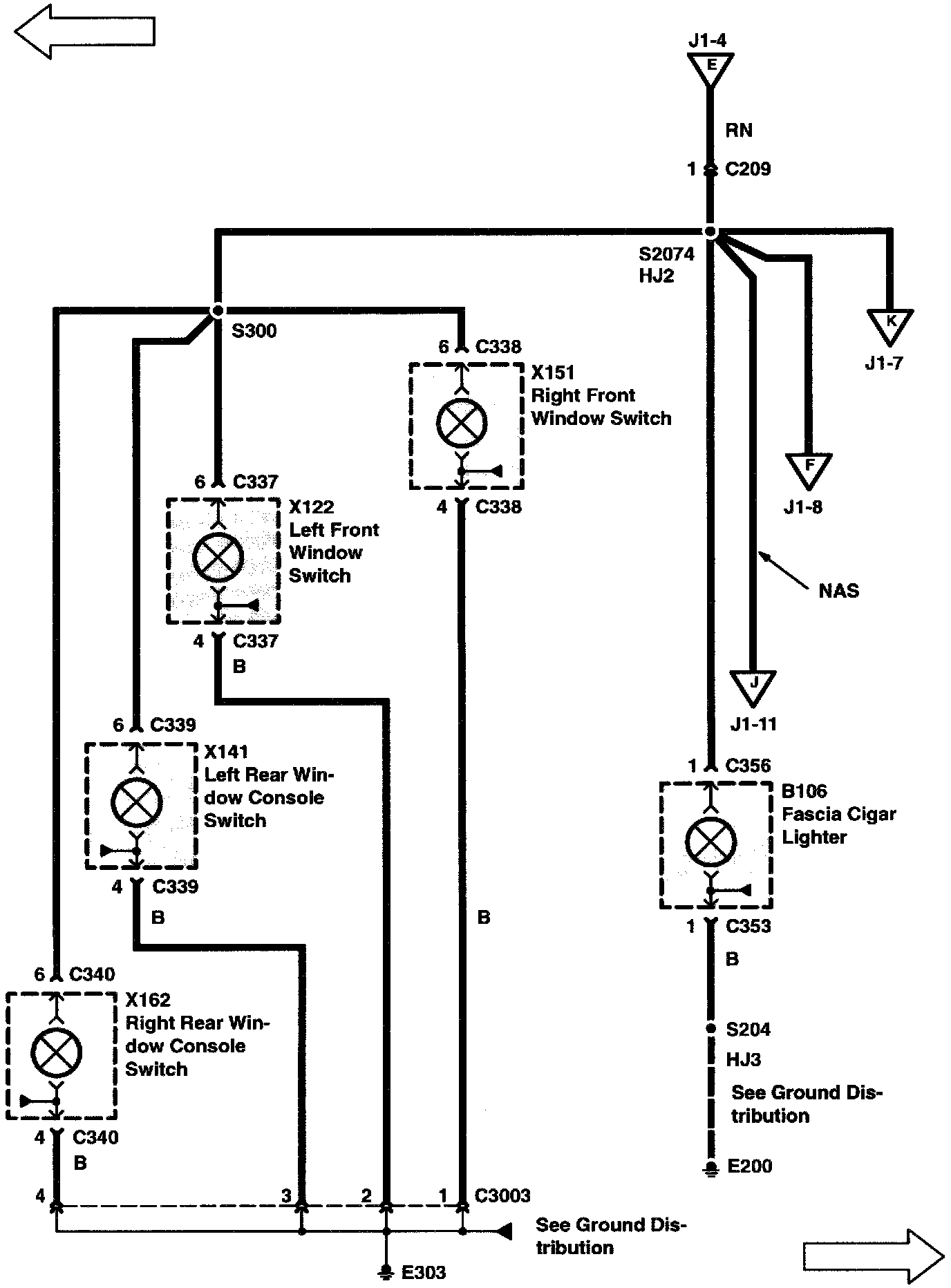

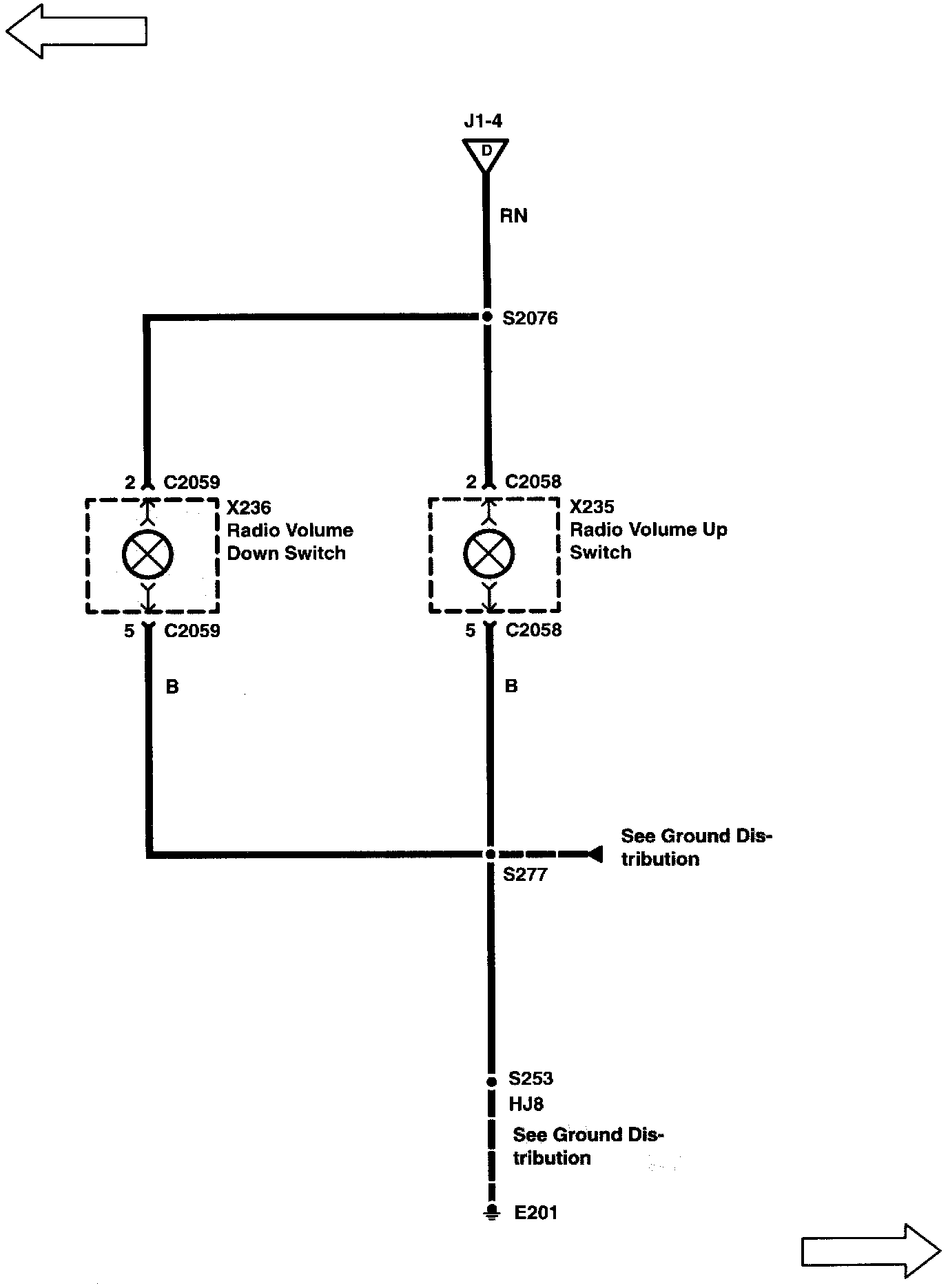

J1-4:






J1-5:

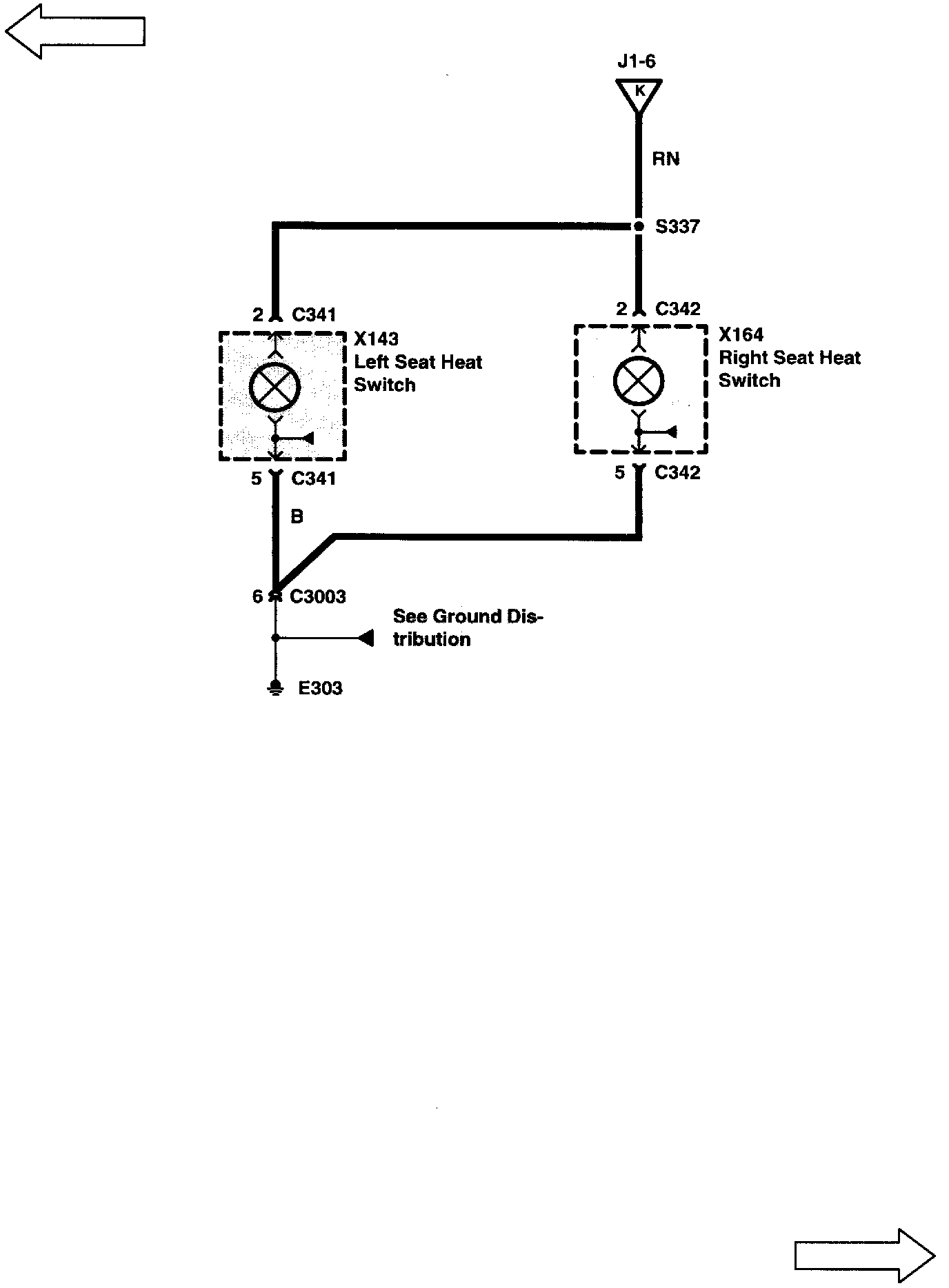

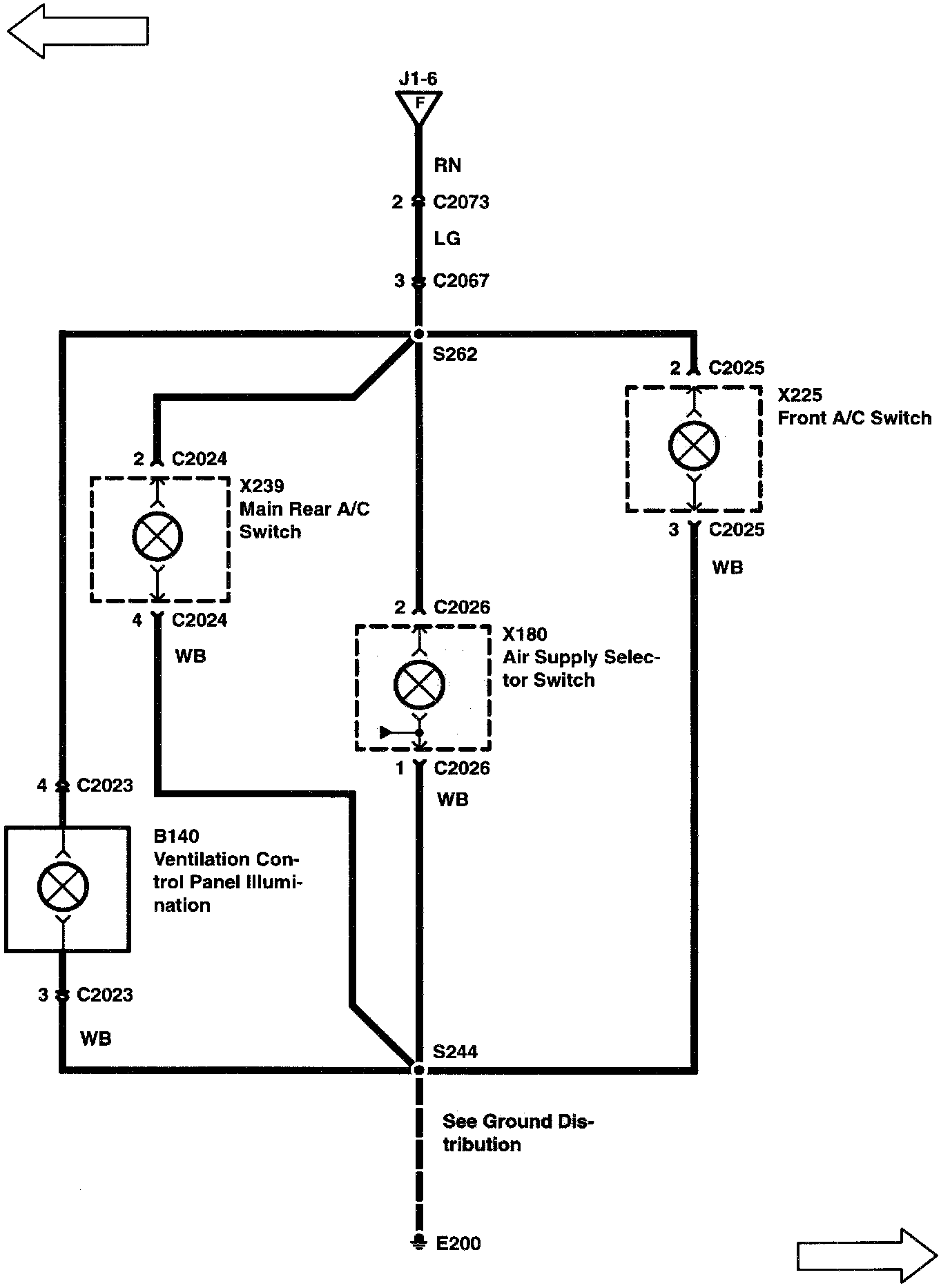

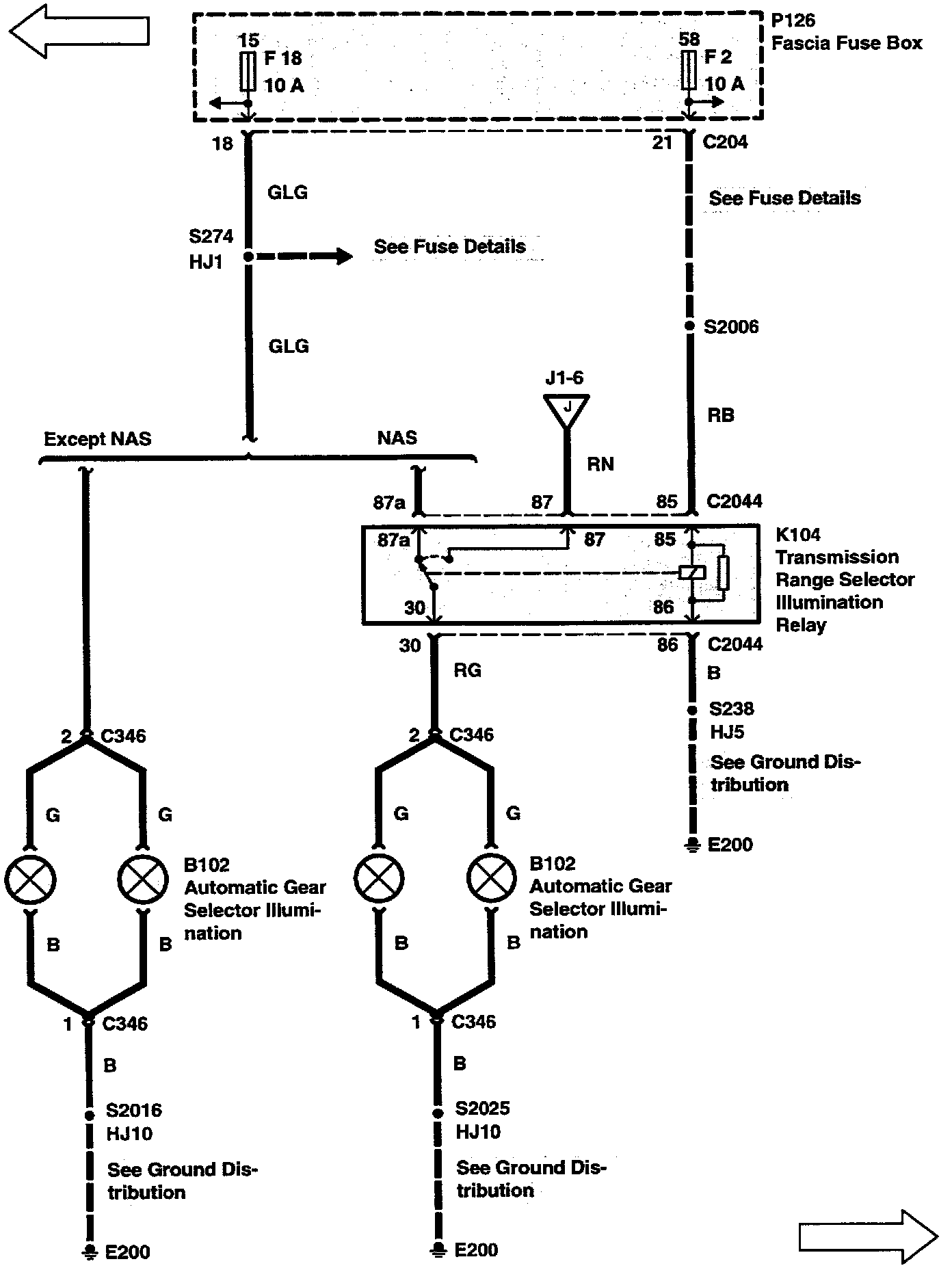

J1-6:






J1-7:






J1-8:






J1-9:






J1-10:






J1-11:






J1-12:






J1-13:
