Land Rover
>>
1998
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

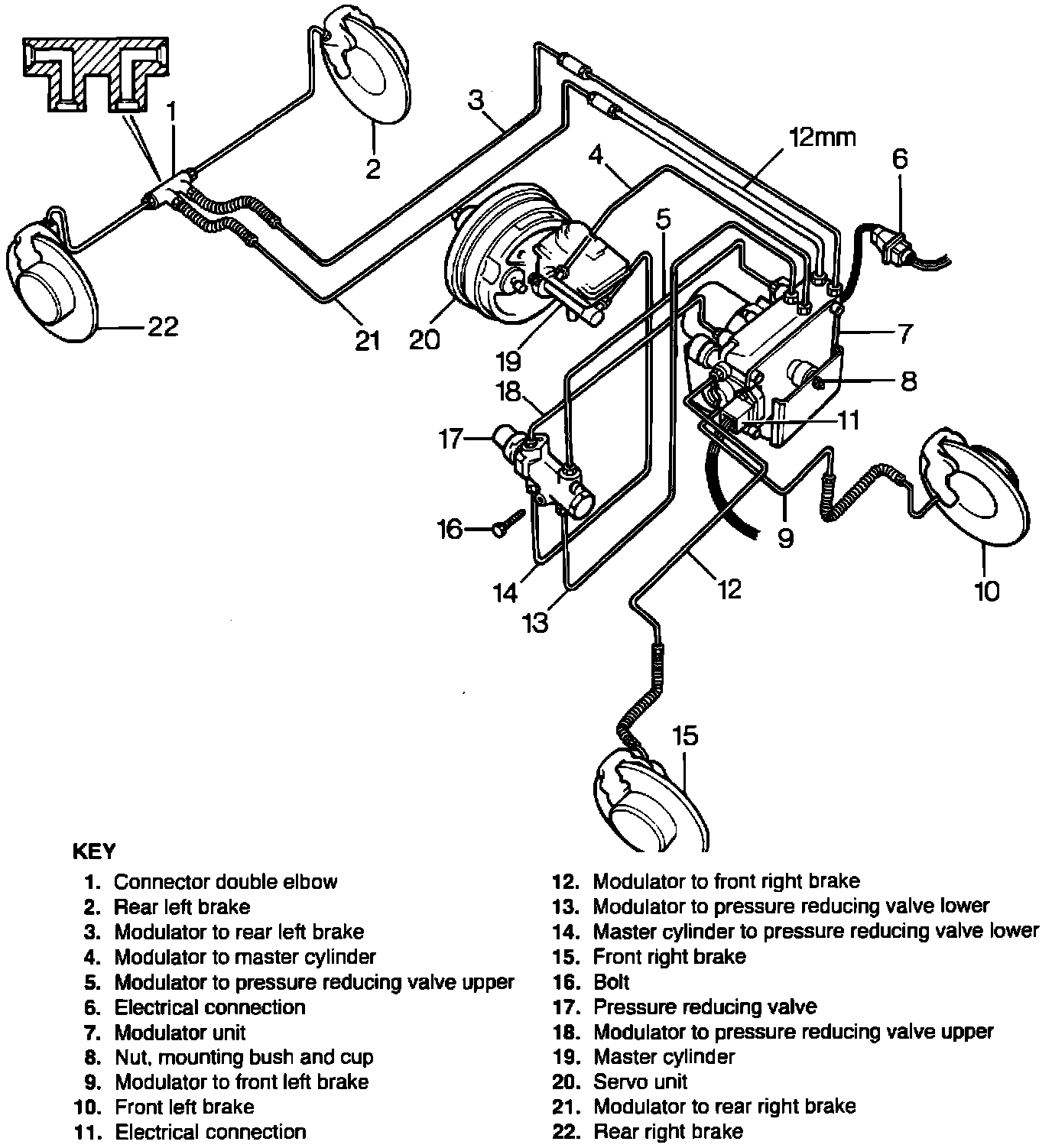

Brake Pipe Layout - ABS:
