Clutch, M/T

NOTE:

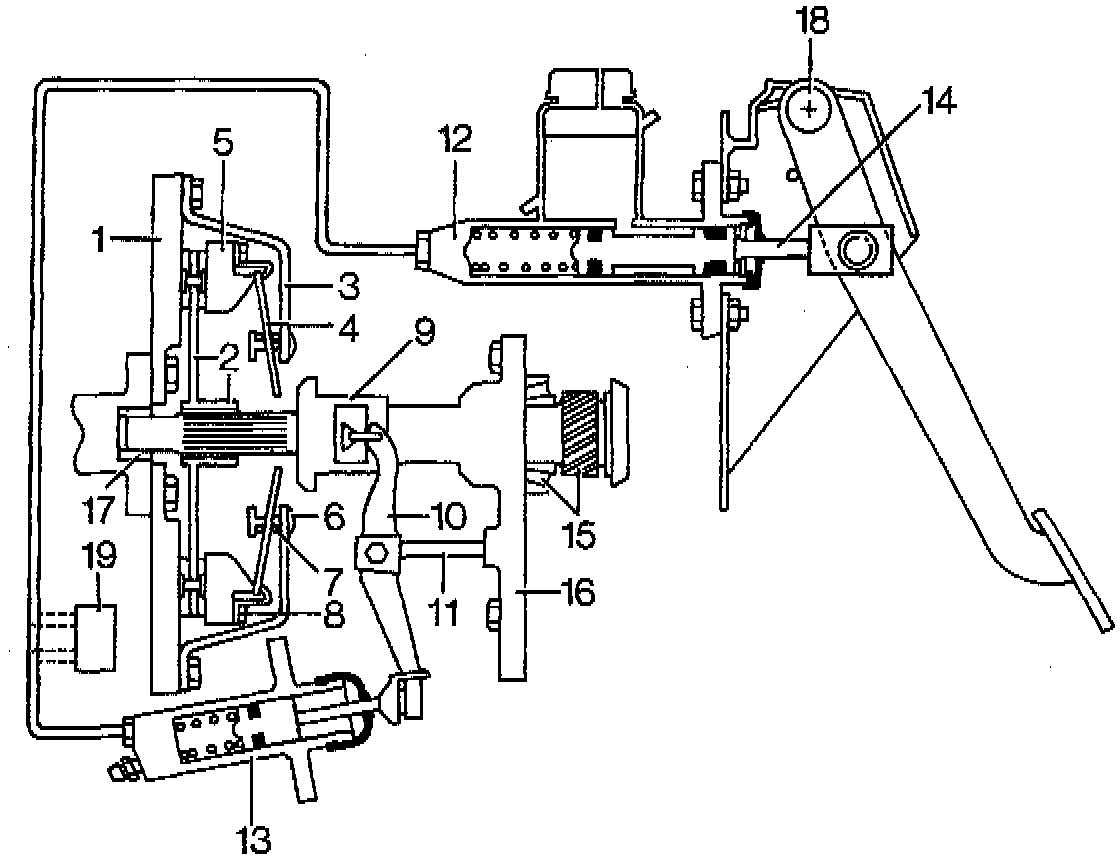

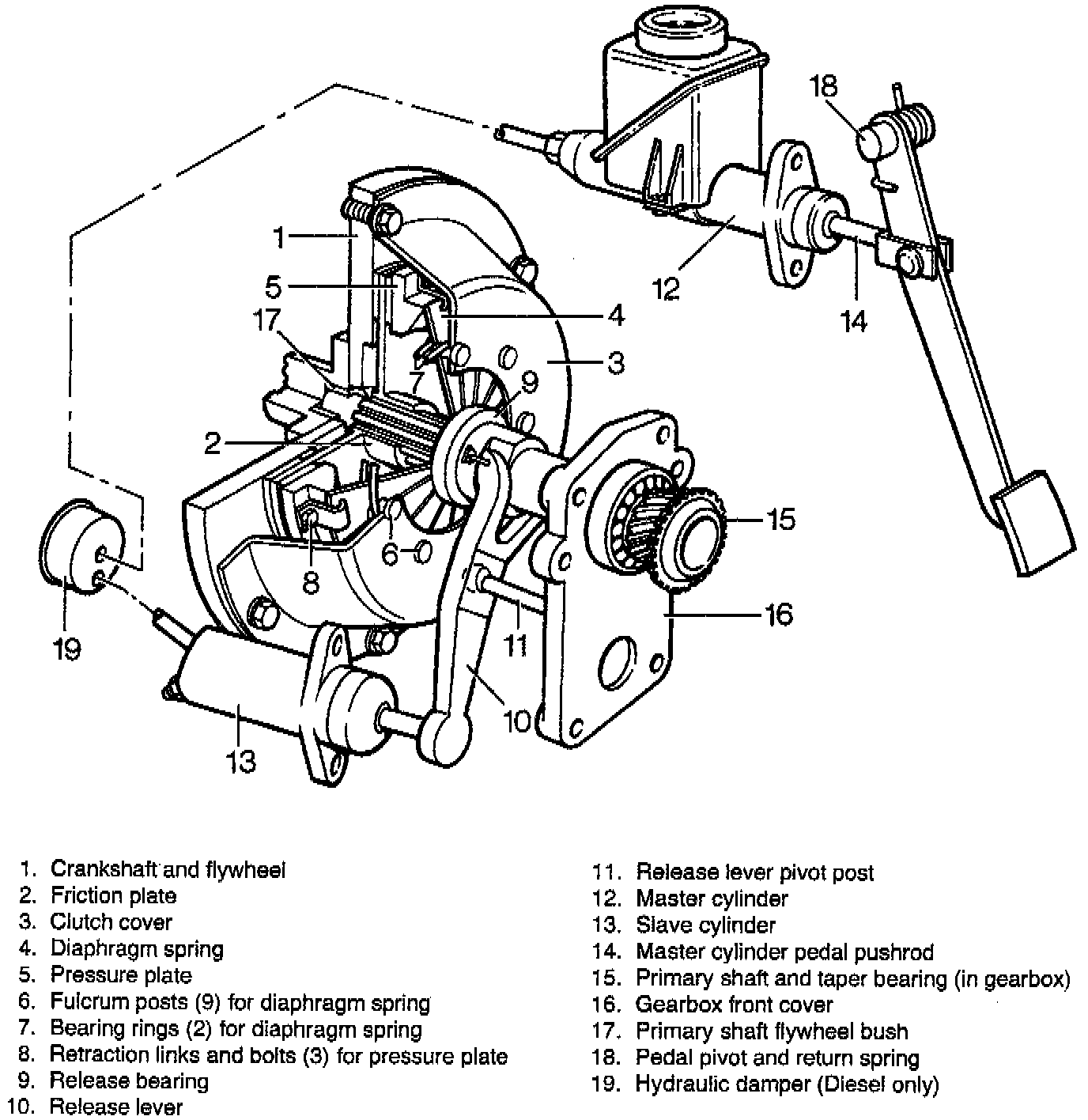

^ Refer to the illustration above for the component legend.
^ Diesel engine vehicles have an hydraulic damper 19 installed into the system.
^ The damper contains a steel diaphragm which absorbs slight hydraulic pulses caused by cyclic variations of the diesel engine crankshaft at low rpm.
