Condenser Fan: Service and Repair

Condenser Fans and Motors
Motor
Fan

Remove
1. Remove condenser assembly.

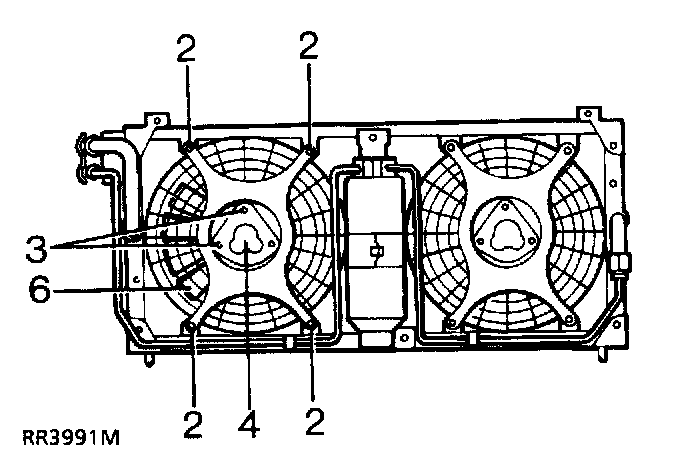

2. Remove 4 bolts securing fan cowl to condenser.
3. Remove 3 bolts securing fan motor to cowl.
4. Remove fan motor assembly.
5. Remove 3 screws securing fan blades to motor.
6. Remove fan blades.

Refit
7. Reverse removal procedure. Ensuring that wiring is clipped and no fouling of fan blade can occur.
