Evaporator Temperature Sensor / Switch: Service and Repair

Thermostat

Remove
1. Remove heater and cooler unit.
2. Remove lower cover and evaporator.
3. Remove 5 clips and screw securing evaporator top cover.
4. Remove evaporator top cover.

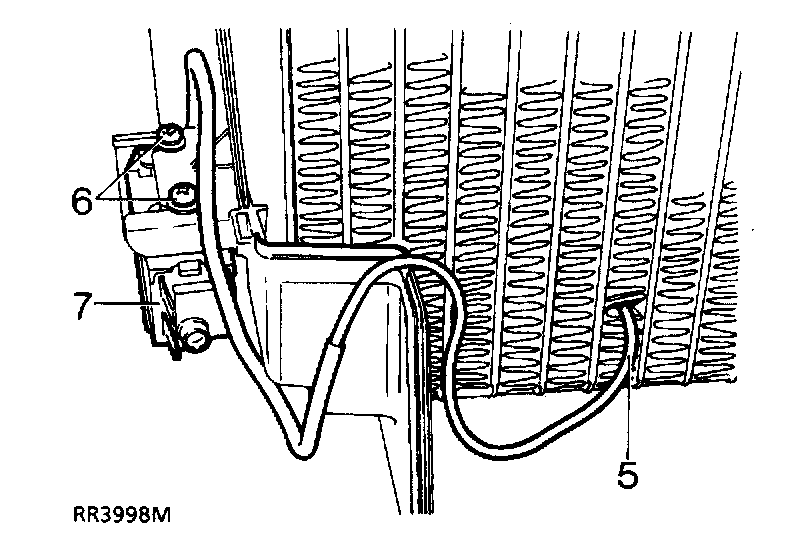

5. Remove thermostat sensor from evaporator matrix.
6. Remove 2 screws securing sensor unit.
7. Remove thermostat and insulation.

Refit
8. Reverse removal procedure.


CAUTION: The thermostat insulation must be installed in the ORIGINAL POSITION in the evaporator.
