ABS Light: Service and Repair
Remove1. Remove instrument binnacle. Service and Repair

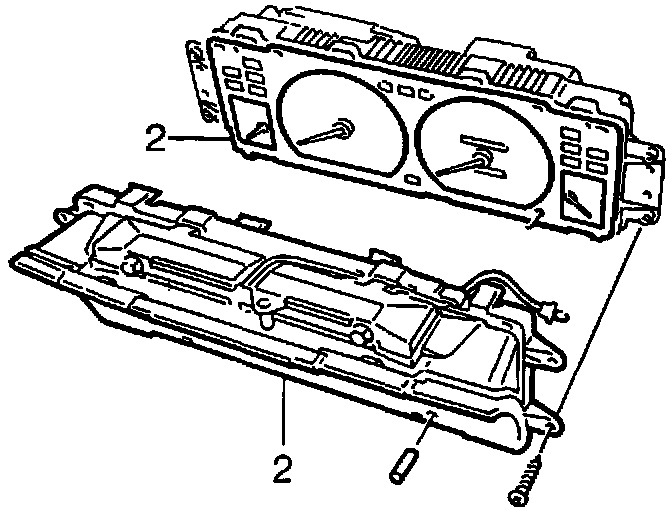

2. Remove window and face plate from instrument panel.

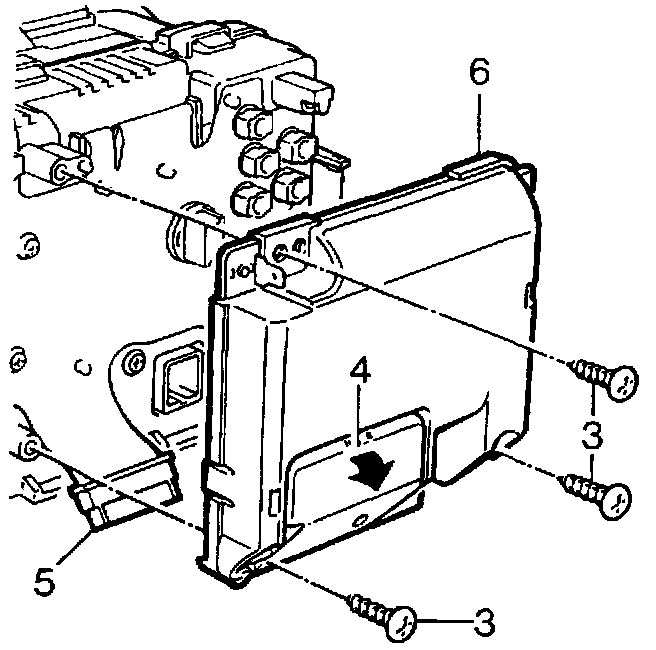

3. Remove 3 screws securing ECU to instrument panel.
4. Release and remove small cover from ECU.
5. Disconnect multiplug from ECU.
6. Remove ECU

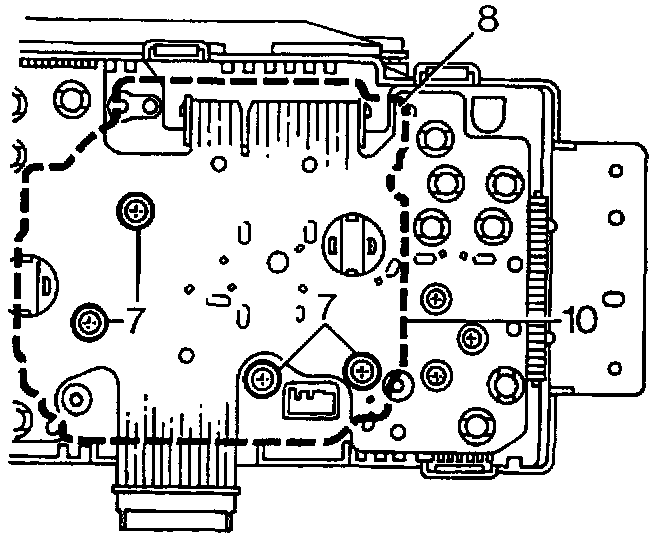

7. Remove 4 screws securing tachometer.
8. Remove tachometer

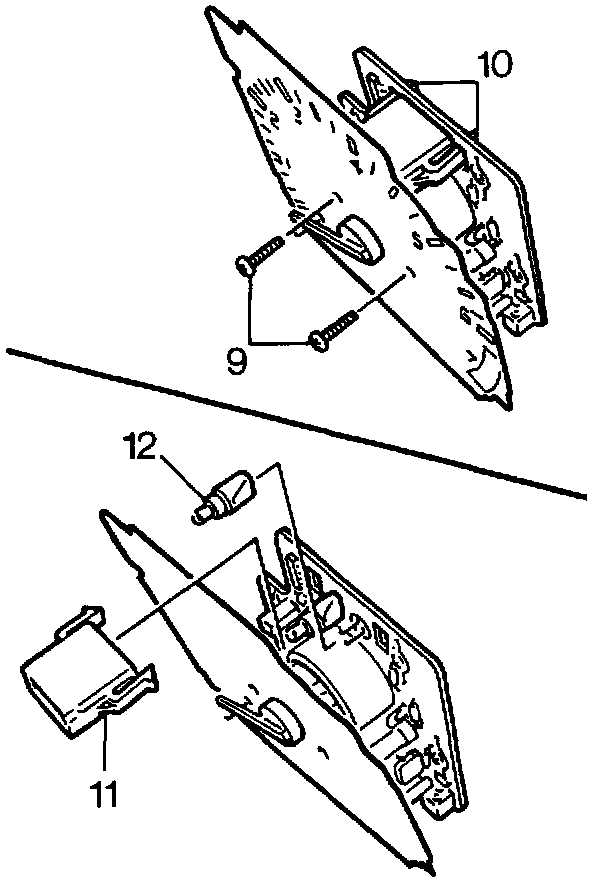

9. Carefully remove 2 screws securing face plate to tachometer.
10. Release warning light housing from tachometer circuit board.
11. Carefully (to avoid damage to tachometer needle and spindle), tilt and remove warning light housing.
12. Remove 2 warning light bulbs
Refit
13. Reverse removal procedure.
14. Fit new warning light bulbs
15. Carefully fit warning light housing, ensuring that locating pegs engage correctly and that retaining clips lock housing into position.
16. Ensure that tachometer needle is on the correct side of its stop.
17. Fit instrument panel.
