Cigarette Lighter: Service and Repair

Cigar Lighter

Remove
1. Remove centre console.

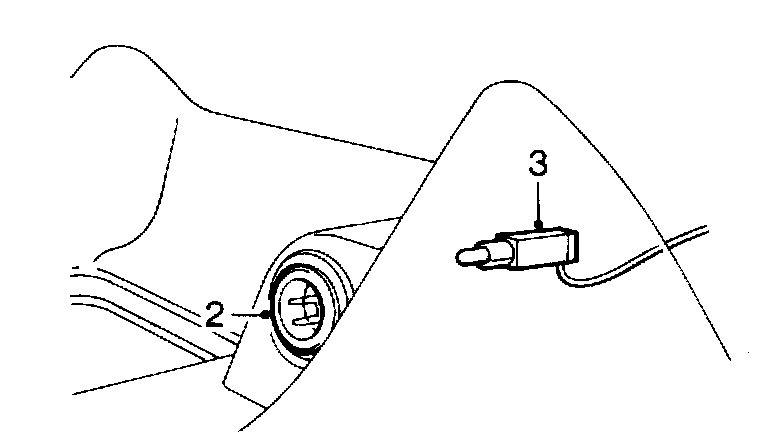

2. Depress lugs securing cigar lighter, withdraw lighter from centre console.

Bulb replacement
3. Remove bulb from holder.

Refit
4. Reverse removal procedure.
