Clock: Service and Repair

Clock

Remove
1. Remove drinks tray.

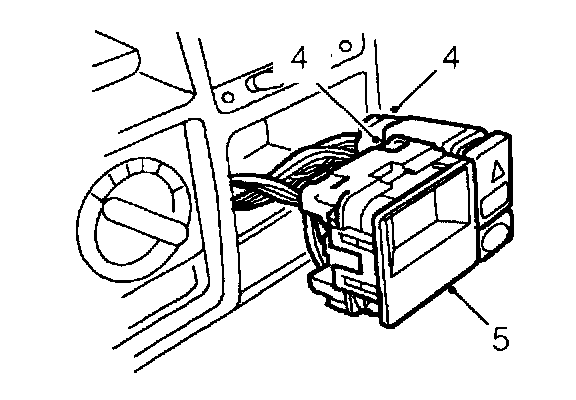

2. Release 4 clock panel securing tags.
3. Release clock panel from louvre panel.







4. Disconnect 2 multiplugs from clock.
5. Remove clock.

Refit
6. Position clock.
7. Connect multiplugs to clock and secure clock to louvre panel.
8. Fit drinks tray.
