Transmission Shift Position Indicator Lamp: Service and Repair

Transmission Shift Position Indicator Lamp

1. Disconnect battery negative lead.







2. Carefully prise quadrant finisher out of surround.
3. Carefully prise rear of surround away from centre console.

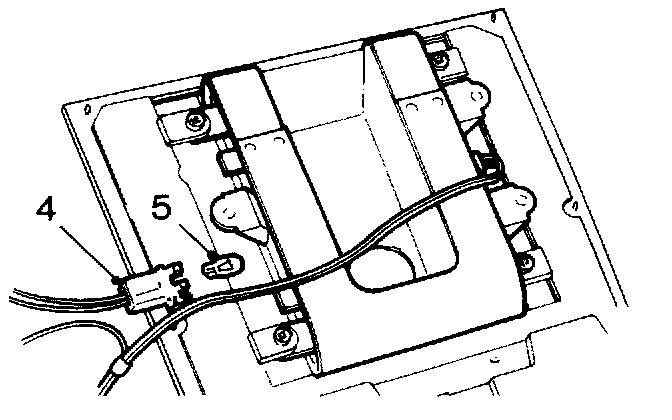

4. Pull appropriate bulb holder from fitted position.
5. Remove bulb from holder.

Refit
6. Reverse removal procedure
