Courtesy Lamp: Service and Repair

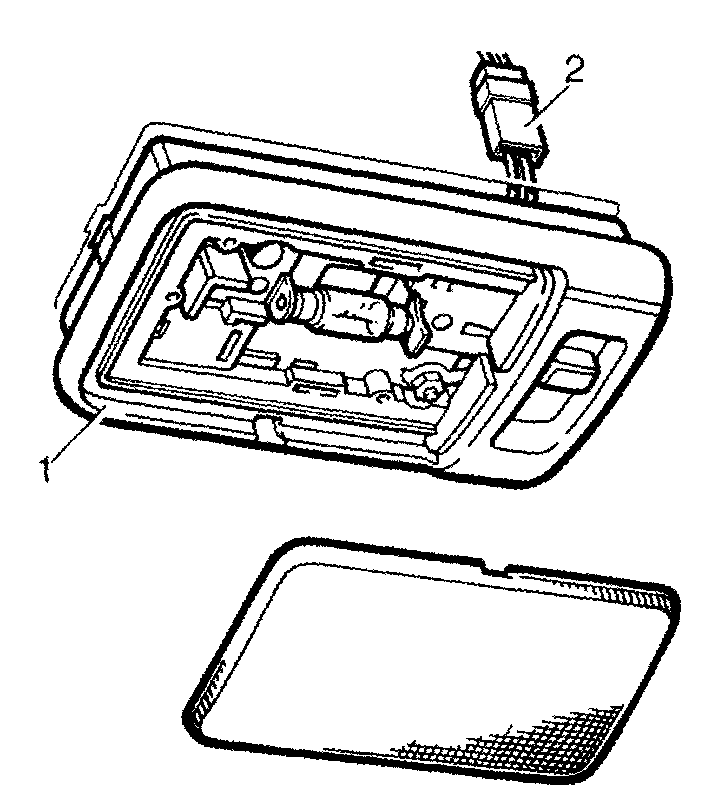

Courtesy Lamp Unit And Bulb


Remove







1. Pry out light unit from roof location.
2. Disconnect light switch plug.

Refit
3. Reverse removal procedure.

Bulb Removal.
1. Pry out interior light lens.
2. Remove bulb

Refit
3. Reverse removal procedure.
