Fog/Driving Lamp: Service and Repair

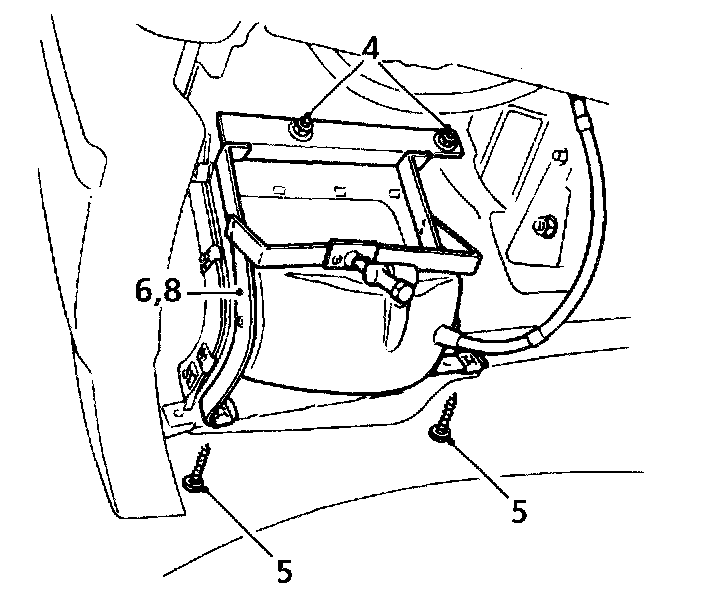

FOG LIGHT ASSEMBLY


Remove







1. Locate and release lamp harness multiplug from clip behind headlamp.
2. Disconnect multiplug.
3. Attach a draw string to harness.







4. Remove 2 nuts securing lamp bracket to bumper studs.
5. Remove 2 screws securing lamp bracket to spoiler.
6. Release lamp assembly and pull lamp harness through front panel.
7. Detach draw string from harness.
8. Remove lamp/bracket assembly.
9. Remove 2 spire nuts from lamp bracket.

Refit
10. Reverse removal procedure.

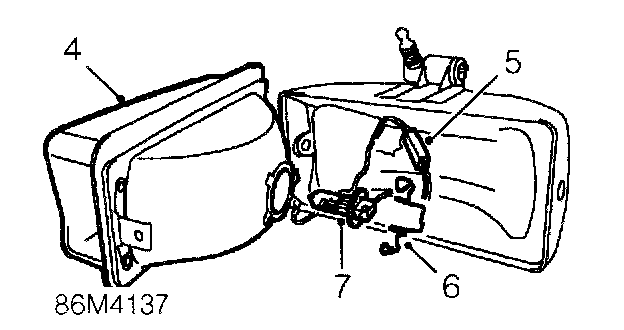

FOG LIGHT BULB

Remove
1. Remove front fog lamp.






2. Remove 2 Torx screws securing fog lamp to bracket and collect 2 spacers.
3. Release fog lamp adjustment ball joint from bracket and remove lamp.







4. Release lamp lens from shroud.
5. Disconnect 2 Lucars from bulb.
6. Release bulb retaining clip.
7. Remove bulb from lens.

Refit
8. Fit bulb to lens.
9. Secure bulb retaining clip.
10. Connect 2 Lucars to bulb.
11. Position lamp lens to shroud.
12. Position lamp to bracket and secure fog lamp adjustment ball joint to bracket.
13. Position spacers, align lamp to bracket and secure with Torx screws.
14. Fit front fog lamp.
