Headlamp: Service and Repair

Headlight Unit And Bulb

Remove
1. Rotate three retaining clips 10 degrees, to align with slots in headlight mounting plate.
2. Withdraw light unit


NOTE: Detach adjustment operating rod on vehicles fitted with headlight levelling.


3. Disconnect electrical multiplugs and remove headlight unit.
4. Release spring clips and withdraw headlight bulb.

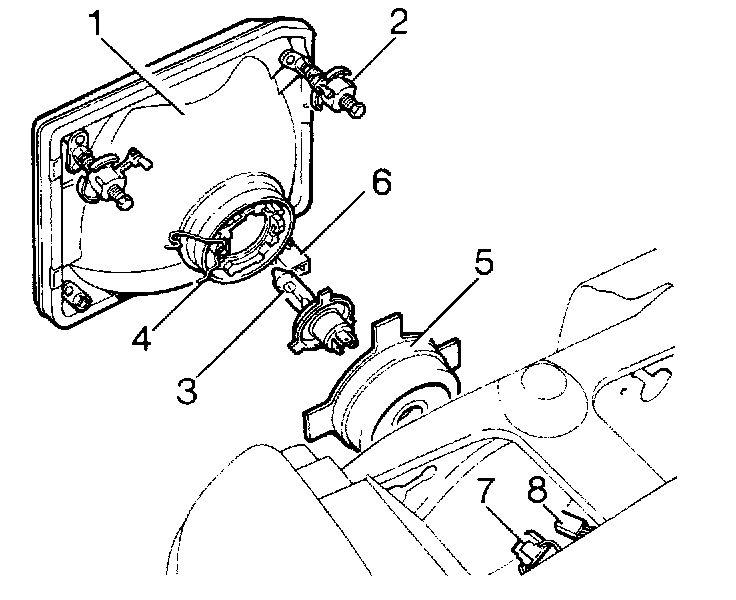

Key

1. Headlight
2. Retaining clips
3. Bulb
4. Spring clip
5. Cover
6. Bulb sidelight
7. Plug
8. Plug sidelight

Refit
5. Reverse removal procedure.
