Battery: Service and Repair

Battery Removal

NOTE: Some vehicles are fitted with a battery backed-up sounder. Disconnecting the vehicle battery will cause the alarm to sound unless the following procedure is followed:







1. Turn starter switch ON then OFF.
2. Disconnect battery WITHIN 15 SECONDS

If alarm is accidentally activated, ensure sounder is connected and silence by turning the starter switch to position II.


WARNING: During battery removal or before carrying out any repairs or maintenance to electrical components always disconnect battery negative lead first. If positive lead is disconnected with negative lead in place, accidental contact of wrench to any grounded metal part could cause a severe spark, possibly resulting in personal injury. Upon installation of battery connect positive lead first.

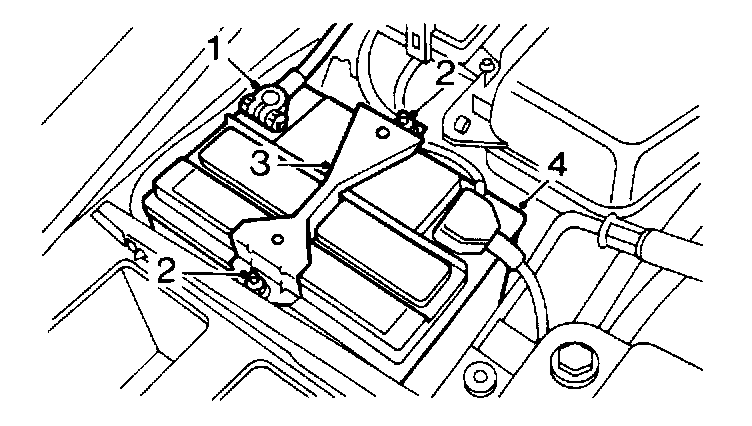

3. Disconnect both battery leads, negative first.
4. Release four nuts securing battery bracket in position.
5. Remove bracket.
6. Remove battery.

Refit
7. Reverse removal procedure.


NOTE: Coat battery clamps and terminals with petroleum jelly before refitting.
