Seat Base Access Panel - Rattles

No: 76/13/97/NAS
Ref:
Issue: 1
Date: 06/20/97

PRIDE IV 6-10

Seat Base Access Panel Retention

AFFECTED RANGE:

DISCOVERY (LJ) Up to 1998 MY (VIN to be determined)

SITUATION:

SEAT BASE ACCESS PANEL RATTLE OR RETENTION PROBLEM

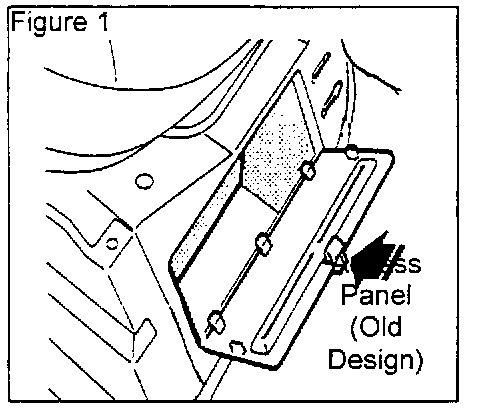

Rattling or difficulty in keeping the access panel in place may result from the poor fit of the panels located under either of the front seats.

RESOLUTION:

INSTALLATION OF REDESIGNED SEAT BASE ACCESS PANELS





NOTE:
Both the left and right side access panels should be replaced to ensure correction of the problem.

A newly designed access panel for the seat base trim covers has been introduced to provide better latching action.

If rattling or retention problems occur, install the new parts to correct the problem.

NOTE:
The new access panel is installed "upside down" with the latch at the bottom edge of the seat base trim covers.

PARTS INFORMATION:

AWR7000LNF Access panel Qty 2

WARRANTY CLAIMS:

78.55.89/27 Time 0.15 hrs.
Replace seat trim access panel (each side)

COMP CODE: 8B1C

Normal warranty policy and procedures apply
