Steering - Power Steering Hose Leaks

No: 57/01/99/NAS
Ref: 57/01/97/NAS
Issue: 1
Date: 02/26/99

Power Assisted Steering Hose Leakage

AFFECTED VEHICLE RANGE:

DISCOVERY (LJ) SA081991 to WA783500

SITUATION:

OIL LEAKAGE FROM POWER ASSISTED STEERING (PAS) PIPES

An oil leak from the low pressure steering box-to-reservoir pipe may be observed. The symptom occurs particularly in markets where high ambient temperatures prevail.

RESOLUTION:

REPLACE APPROPRIATE PIPE

Where a customer complaint of oil leakage is traced to the steering box-to-reservoir hose/pipe assembly, replace the leaking pipe with the improved hose/pipe assembly.

PARTS INFORMATION:

QEH102370 V8 - LHD (Replaces ANR2116)

Locally sourced:

^ ATF Dexron III

WARRANTY CLAIMS:

57.15.22 Time 0.75 hrs.
Install new return hose/pipe assembly - steering box-to-reservoir
Material Allowance: $1.50

FAULT CODE: N

Normal warranty policy and procedures apply

REPAIR PROCEDURE:

HOSE REPLACEMENT

1. Clean steering box area around hose connections.

CAUTION:
Discard all fluid drained from the system. Ensure that power steering fluid does not come in contact with painted body surfaces.

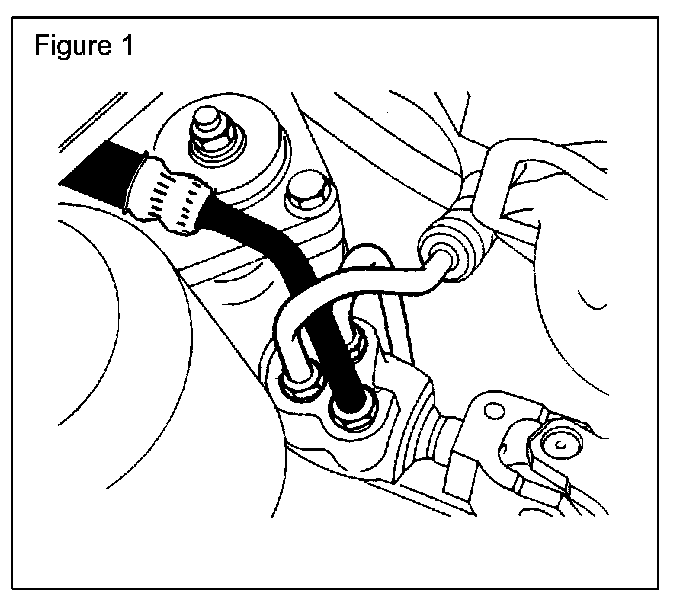

2. Refer to Figure 1 and drain PAS reservoir and return hose as follows:

^ Position a tin can or other suitably sized container between the steering box and the frame rail.

^ Loosen the return hose steering box connector nut.

^ Move hose quickly to collection container and drain hose and reservoir completely.

^ Absorb any spilled fluid with a rag, taking care not to contaminate the steering box.

3. Loosen clamp and disconnect reservoir end of hose.

4. Install new hose/pipe into steering box and torque to 20 Nm (15 lbf. ft.).

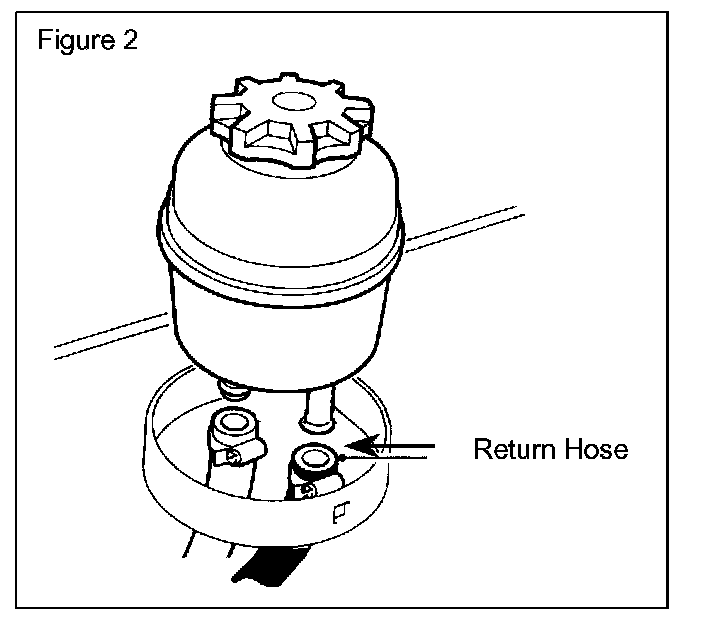

5. Slide clamp onto hose and connect hose to PAS reservoir. (Figure 2)

6. Secure hose with clamp and torque to 3 Nm (27 lbf. in.).

7. Top up PAS reservoir.

8. Cycle the steering and verify fluid level is correct.
