Seal Replacement

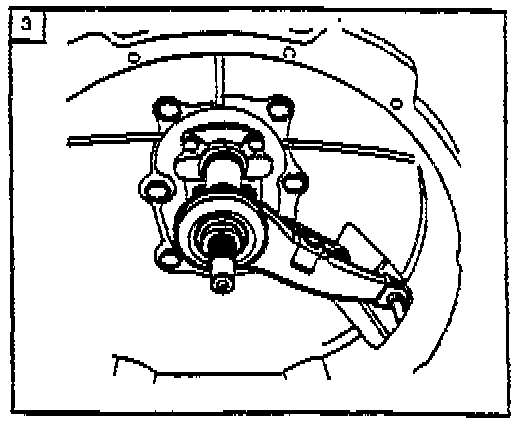

1. Remove throw out bearing (figure 3).

2. Remove bolt holding spring clip to clutch release lever and remove clip.

3. Remove clutch release lever.

4. Remove "C" clip from release lever pivot post and discard clip.

5. Remove six bolts and front cover of transmission.

6. Remove inner race and oil seal from front cover.

7. Examine seal bore to ensure that no damage has been done during seal removal.

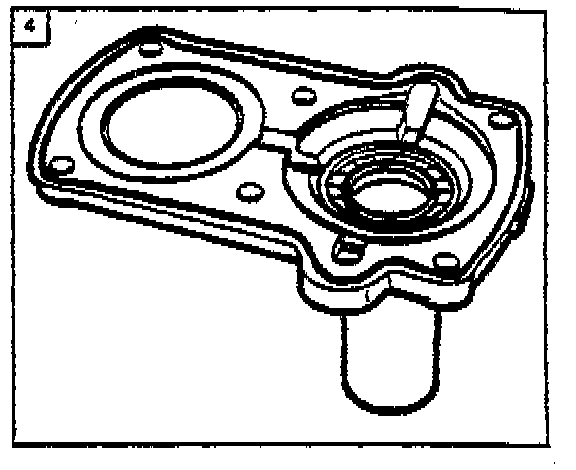

8. Install new seal. Make sure that the seal is installed down to shoulder. Apply Hylogrip 2000 (Loctite(R) 518) around the front cover as shown in figure 4.

9. Install inner race and clips to main transmission case and install front cover. Seal bolts with Loctite(R).

10. Tighten bolts to 22-28 Nm. (16-20 lbf. ft.).

11. Install new "C" clip on release lever pivot post.

12. Reinstall clutch release lever.

13. Reinstall spring clip to clutch release lever and secure with bolt. Tighten to 7-10 Nm. (5-7 lbf. ft.).

14. Install throw out bearing.
