Home >> Land Rover >> 1998 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C521 - C705 >> C575 - C583

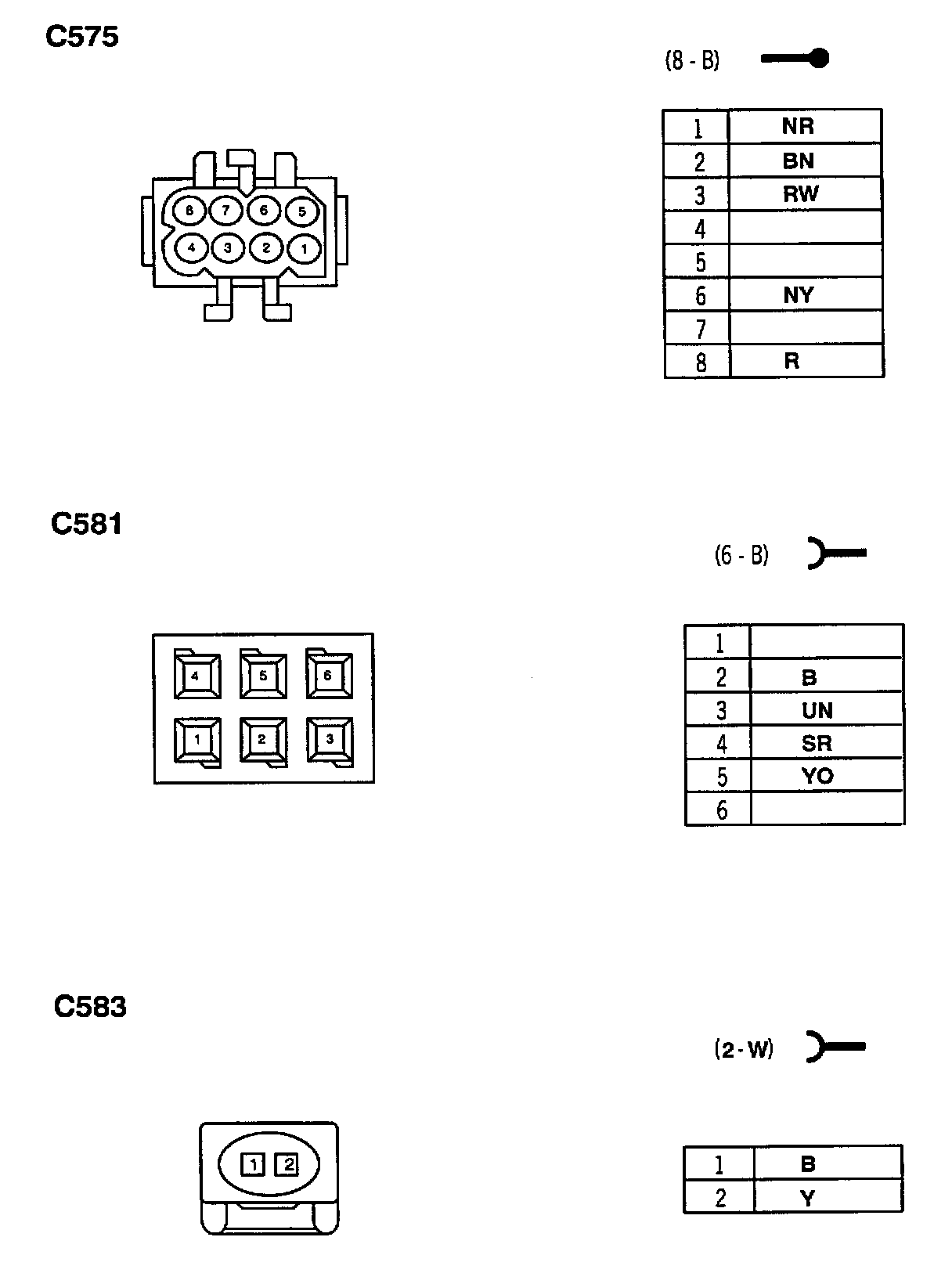

C575 - C583

Z6-82:
