Home >> Land Rover >> 1998 >> Range Rover SE (LP) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

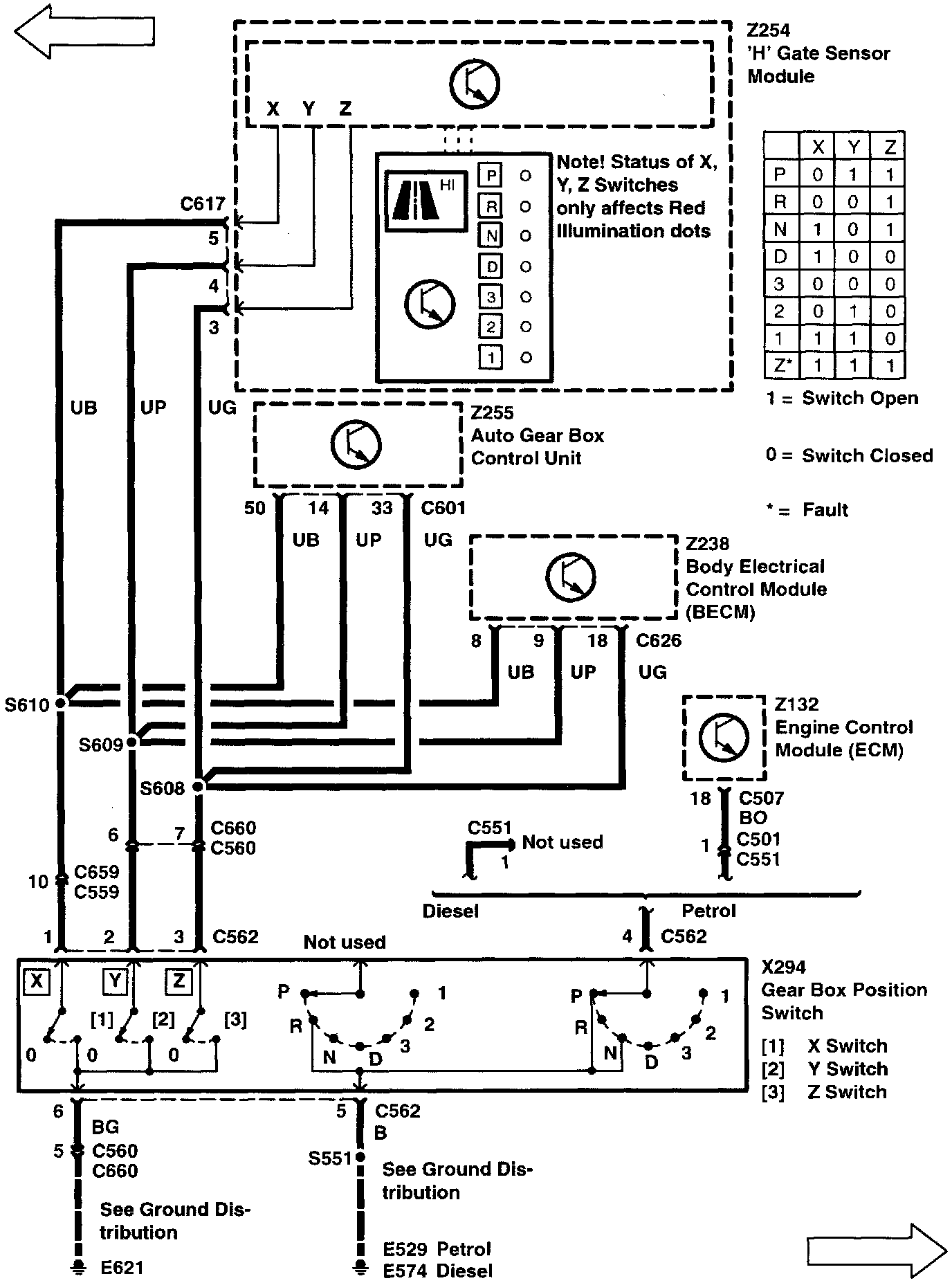

B7-3:

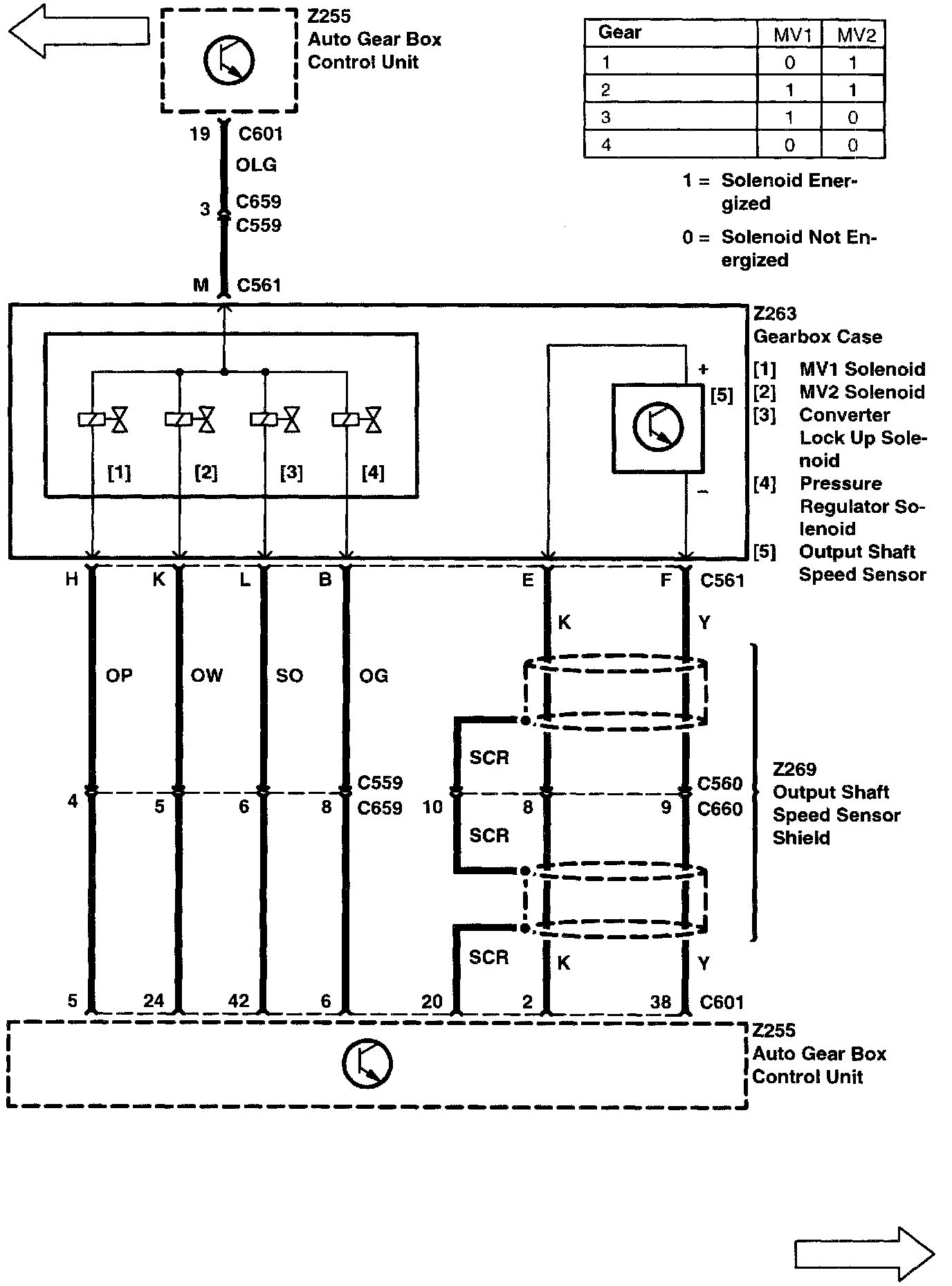

B7-4:






B7-5:






B7-6:






B7-7:
