Home
>>
Land Rover
>>
1998
>>
Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

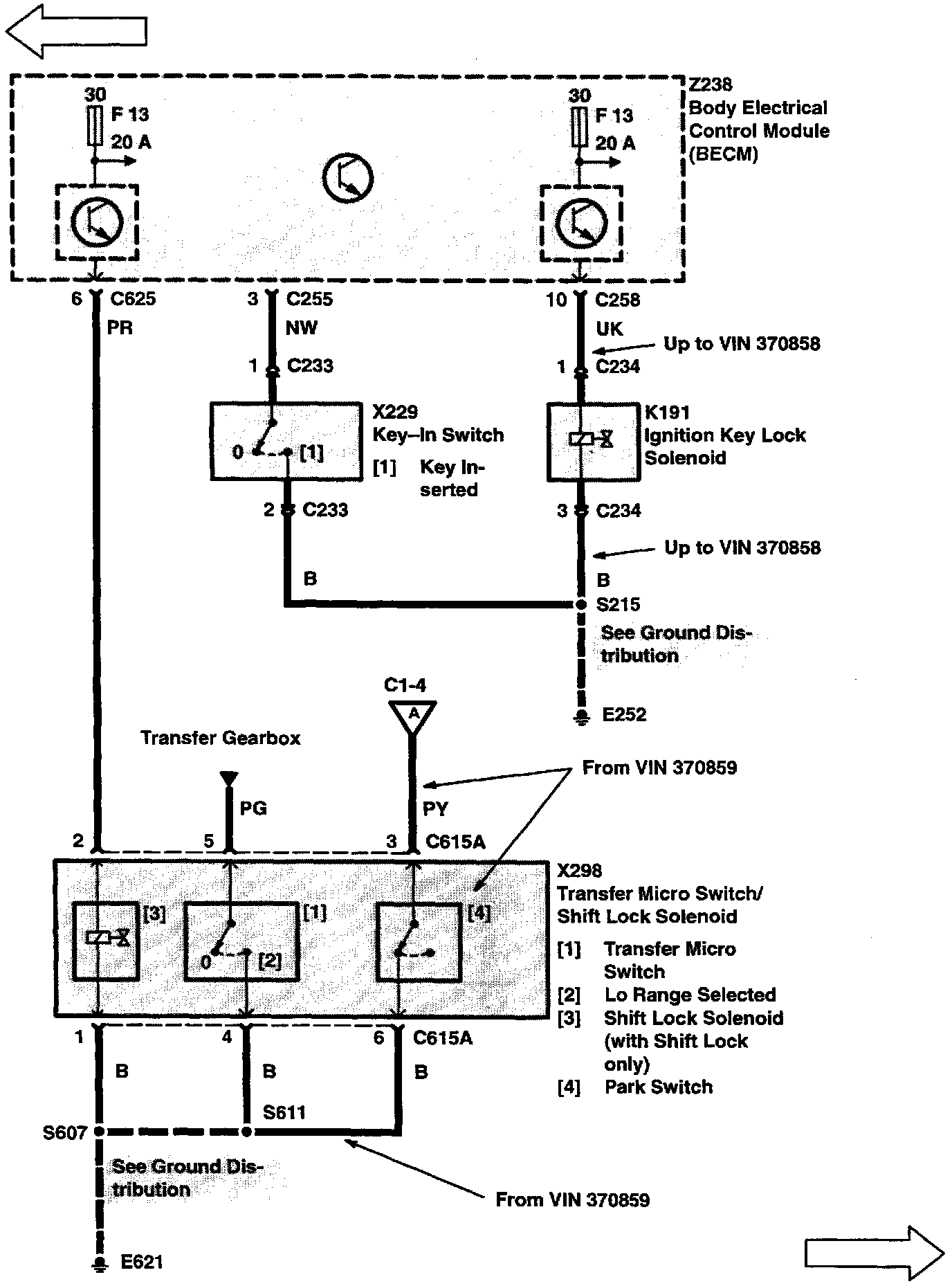

C1-2:

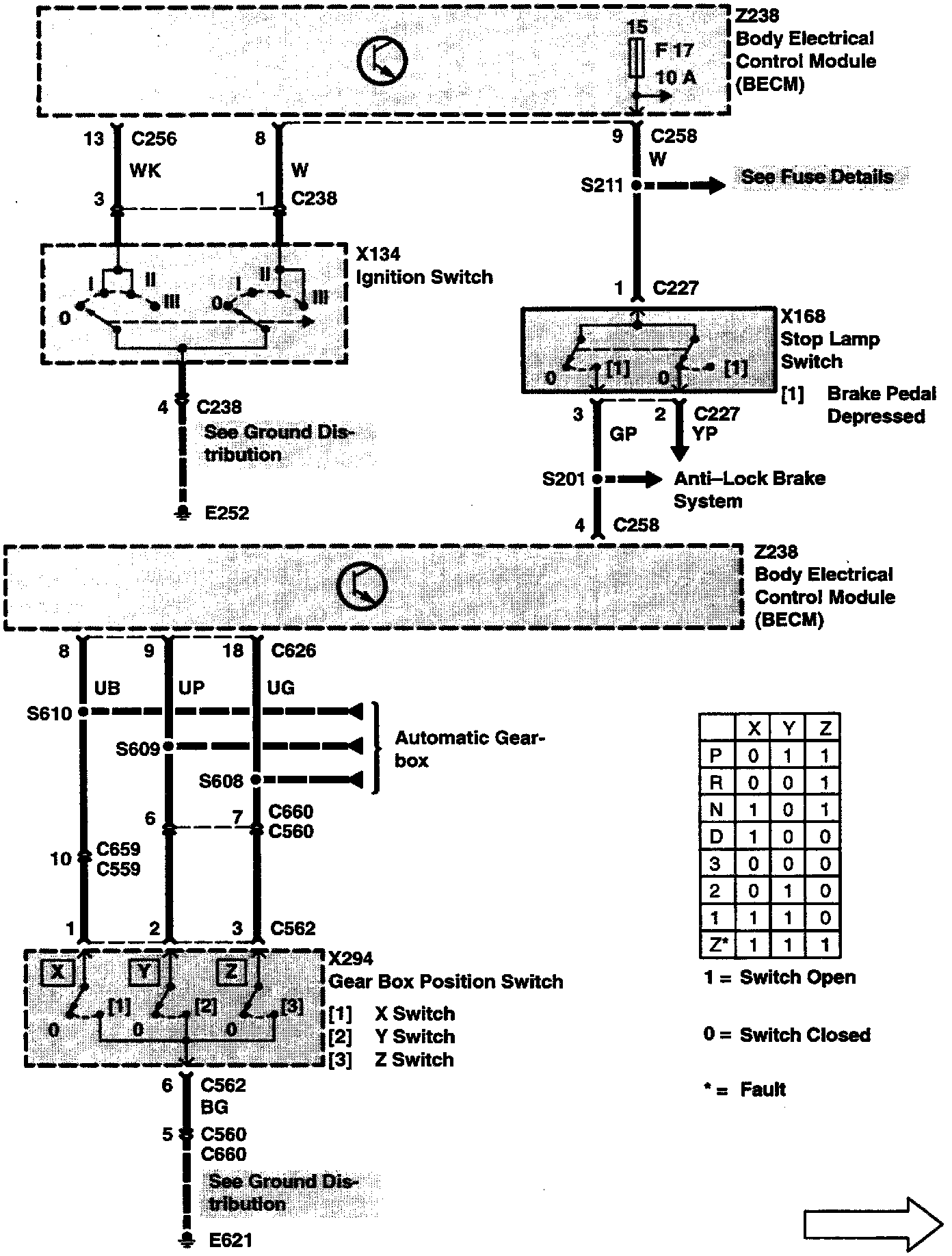

C1-3:
C1-4, From VIN 370859:
